Chapter 7 DMZ Screens
NBG410W3G Series User’s Guide
142

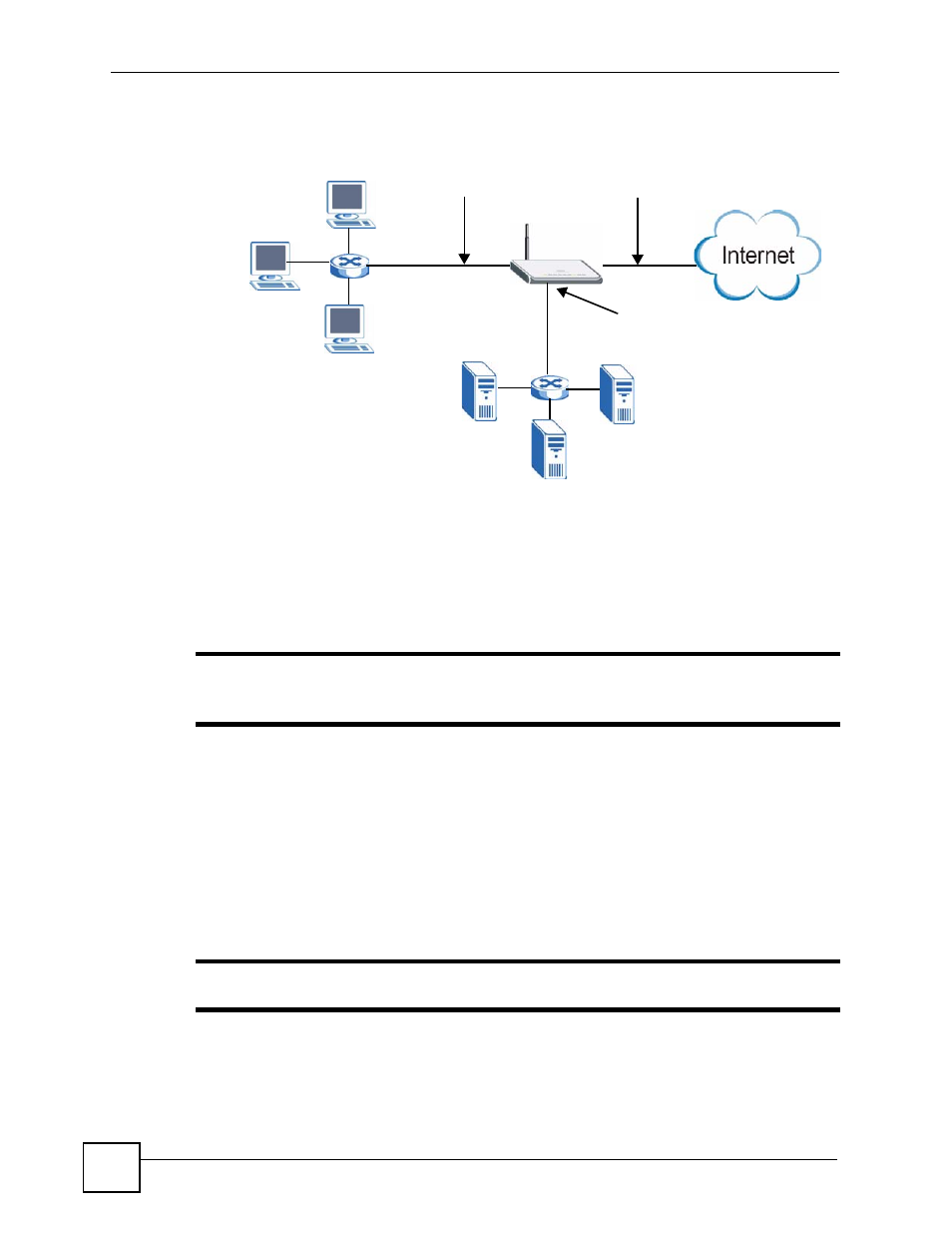

Figure 83 DMZ Private and Public Address Example
7.7 DMZ Port Roles
Use the Port Roles screen to set ports as part of the LAN and/or DMZ interface.
Ports 1~4 on the ZyXEL Device can be part of the LAN and/or DMZ interface.
"
Do the following if you are configuring from a computer connected to a LAN or
DMZ port and changing the port's role:
1 A port's IP address varies as its role changes, make sure your computer's IP address is in
the same subnet as the ZyXEL Device's LAN or DMZ IP address.
2 Use the appropriate LAN or DMZ IP address to access the ZyXEL Device.
To change your ZyXEL Device’s port role settings, click NETWORK > DMZ > Port Roles.
The screen appears as shown.
The radio buttons correspond to Ethernet ports on the front panel of the ZyXEL Device. On
the ZyXEL Device, ports 1 to 4 are all LAN ports by default.
"
Your changes are also reflected in the LAN Port Roles screens.
A
IP: 192.168.1.3
B
IP: 192.168.1.4
C
IP: 192.168.1.5
LAN
LAN
IP: 192.168.1.1
D
IP: a.b.c.i
E
IP: a.b.c.j
F
IP: 10.0.0.2
DMZ
DMZ
IP: a.b.c.h
WAN
IP: a.b.d.b
IP: 10.0.0.1
