Chapter 2 Introducing the Web Configurator
NBG410W3G Series User’s Guide
56

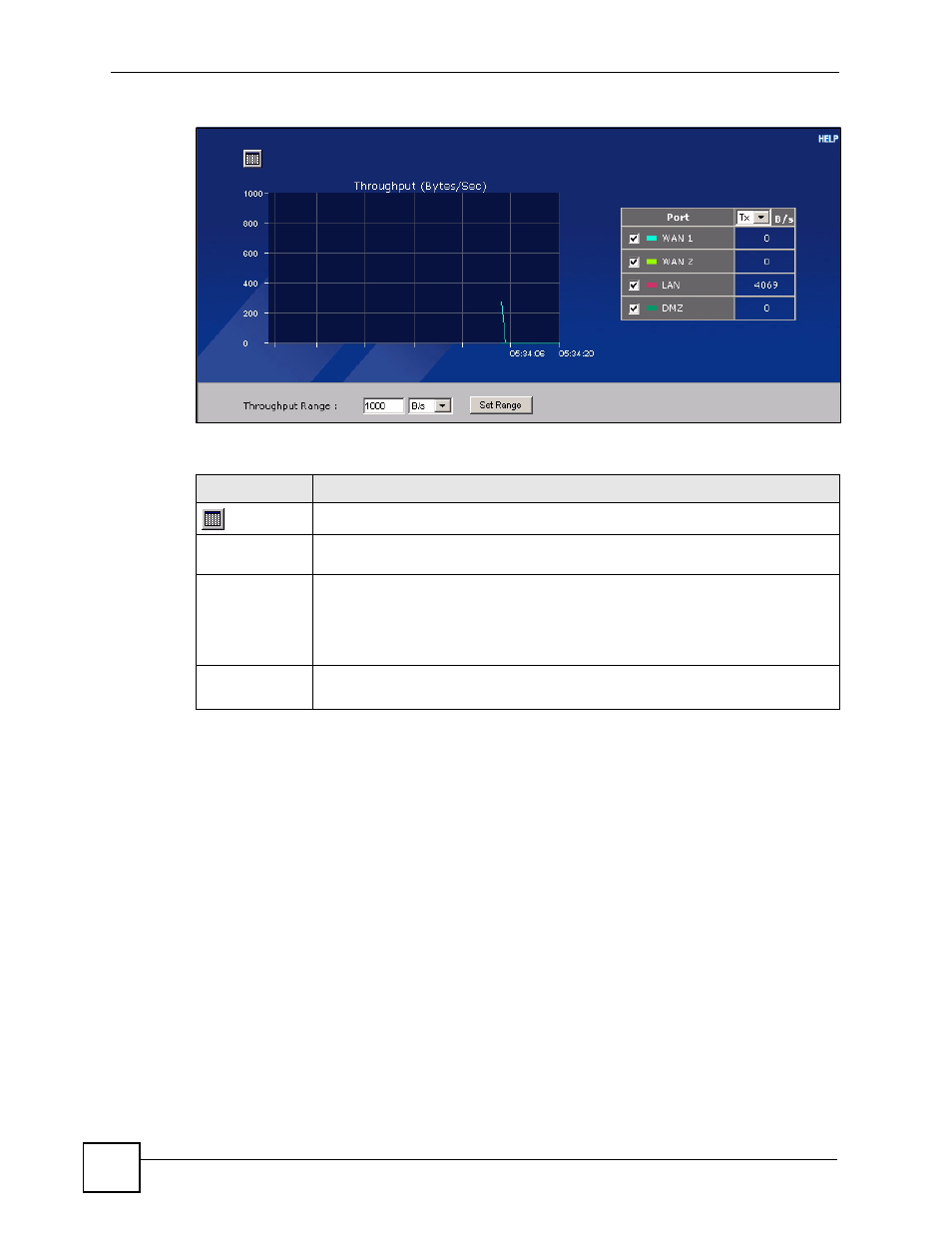

Figure 11 HOME > Show Statistics > Line Chart
The following table describes the labels in this screen.
2.4.7 DHCP Table Screen
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual
clients to obtain TCP/IP configuration at start-up from a server. You can configure the ZyXEL
Device as a DHCP server or disable it. When configured as a server, the ZyXEL Device
provides the TCP/IP configuration for the clients. If DHCP service is disabled, you must have
another DHCP server on your LAN, or else the computer must be manually configured.
Click Show DHCP Table in the HOME screen. Read-only information here relates to your
DHCP status. The DHCP table shows current DHCP client information (including IP
Address, Host Name and MAC Address) of all network clients using the ZyXEL Device’s
DHCP server.
Table 7 HOME > Show Statistics > Line Chart
LABEL DESCRIPTION
Click the icon to go back to the Show Statistics screen.
Port Select the check box(es) to display the throughput statistics of the corresponding
interface(s).
B/s Specify the direction of the traffic for which you want to show throughput statistics in
this table.
Select Tx to display transmitted traffic throughput statistics and the amount of traffic
(in bytes). Select Rx to display received traffic throughput statistics and the amount
of traffic (in bytes).
Throughput
Range
Set the range of the throughput (in B/s, KB/s or MB/s) to display.
Click Set Range to save this setting back to the ZyXEL Device.
