ZyXEL Communications NBG410W3G - Manual (Page 71)

Chapter 4 Tutorials
NBG410W3G Series User’s Guide
71

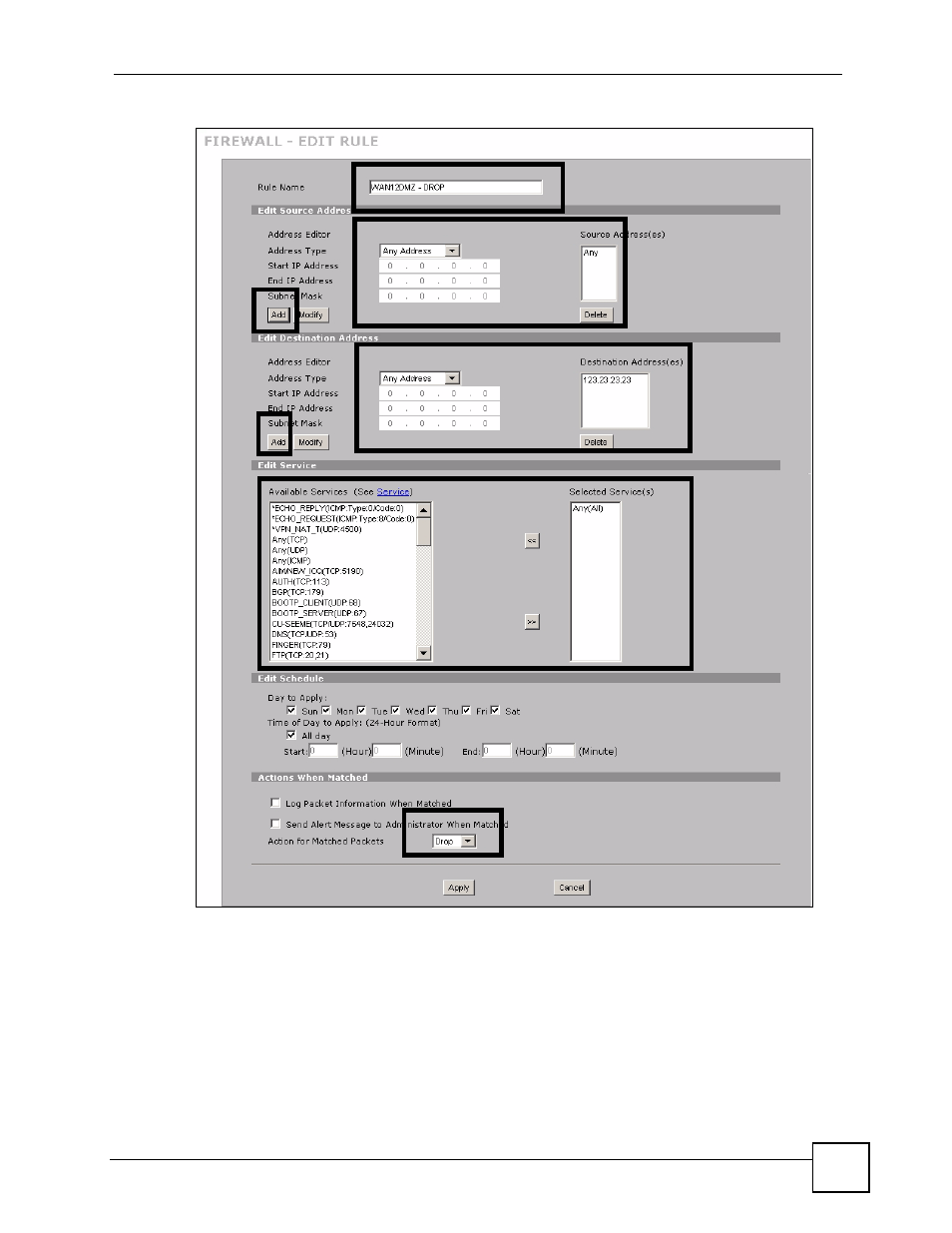

Figure 26 DMZ Tutorial: NETWORK > Firewall > Rule Summary: Firewall - Edit
11 Repeat the firewall rule setup procedure to set up a rule for WAN1 to DMZ traffic with
the same source and destination addresses. In the Edit Service section of the Firewall -
Edit screen select HTTP and FTP so that they appear in the Selected Service(s) field.
12 In the Action for Matched Packets field select Permit from the drop-down list and
click Apply.
13 In the Rule Summary screen select Any and Any from the drop-down list in the Packet
Direction fields and click Refresh to check your firewall rule settings.
