Chapter 4 Tutorials
NBG410W3G Series User’s Guide
67

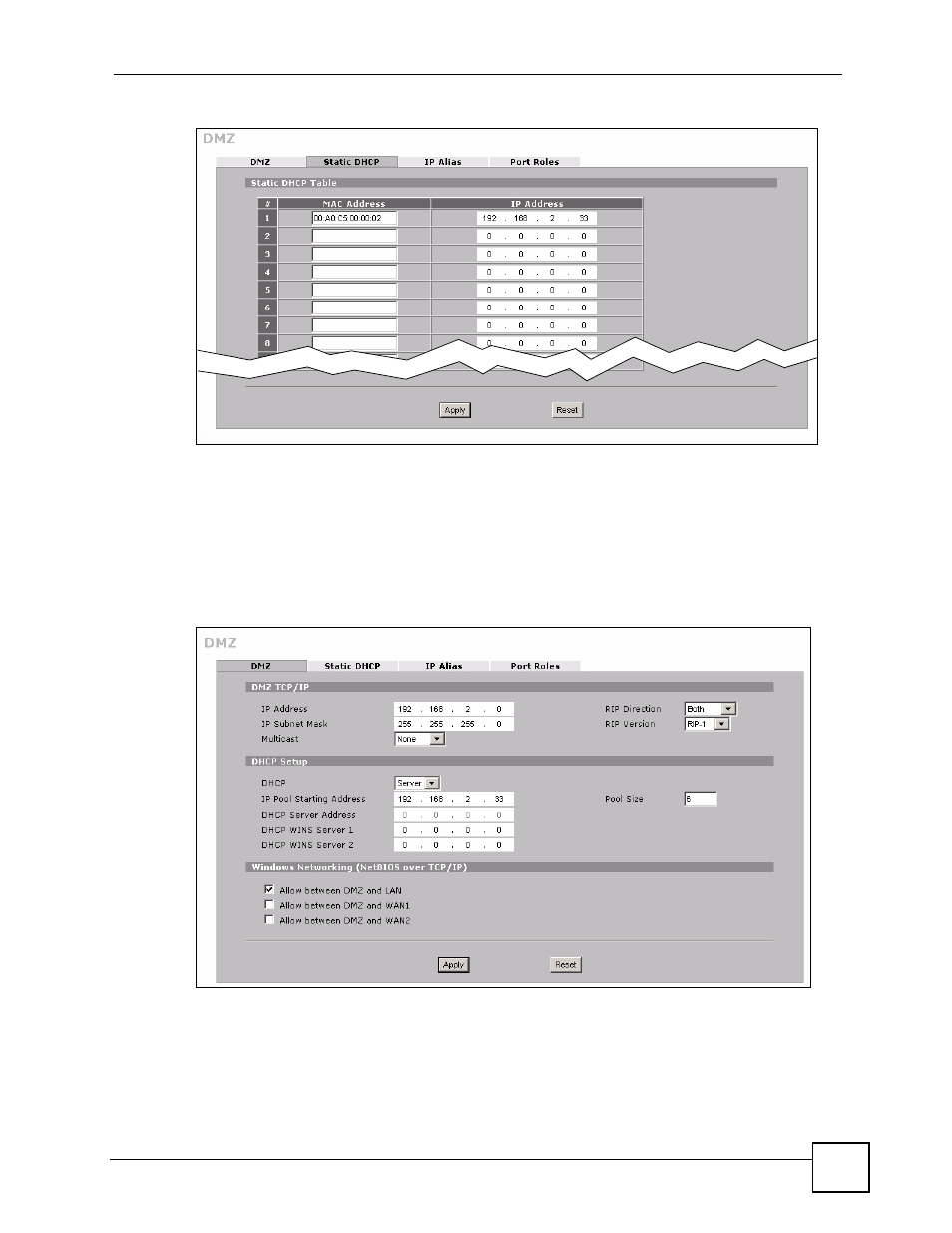

Figure 20 DMZ Tutorial: NETWORK > DMZ > Static DHCP
4.2.1.3 Public and Private IP Addresses
1 In Windows Networking (NetBIOS over TCP/IP) select Allow between DMZ and
LAN. In this example, both the file server on the DMZ and a computer on the LAN use a
Windows OS. Enable NetBIOS to allow LAN computers to use Windows programs such
as Windows Explorer to access the server on the DMZ.
2 Click Apply.
Figure 21 DMZ Tutorial: NETWORK > DMZ
3 Ensure NAT (Network Address Translation) is enabled on your WAN to allow the
ZyXEL Device to manage the IP addresses of traffic it routes between networks. Click
ADVANCED > NAT. For your WAN connection select . In this example NAT is enabled
in the Enable NAT field on WAN1 and SUA is selected. For more information on this
screen see
Chapter 12 on page 225 .
