9: Debugging Your System
ARM720T CORE CPU MANUAL
EPSON
9-25
During SHIFT-DR, a data value is shifted into the serial register. Bits 32 to 36 specify the
address of the EmbeddedICE-RT register to be accessed.
During UPDATE-DR, this register is either read or written depending on the value of bit 37
(0 = read, 1 = write). See Figure 9-12 on page 9-34 for more details.
9.15
Scan timing

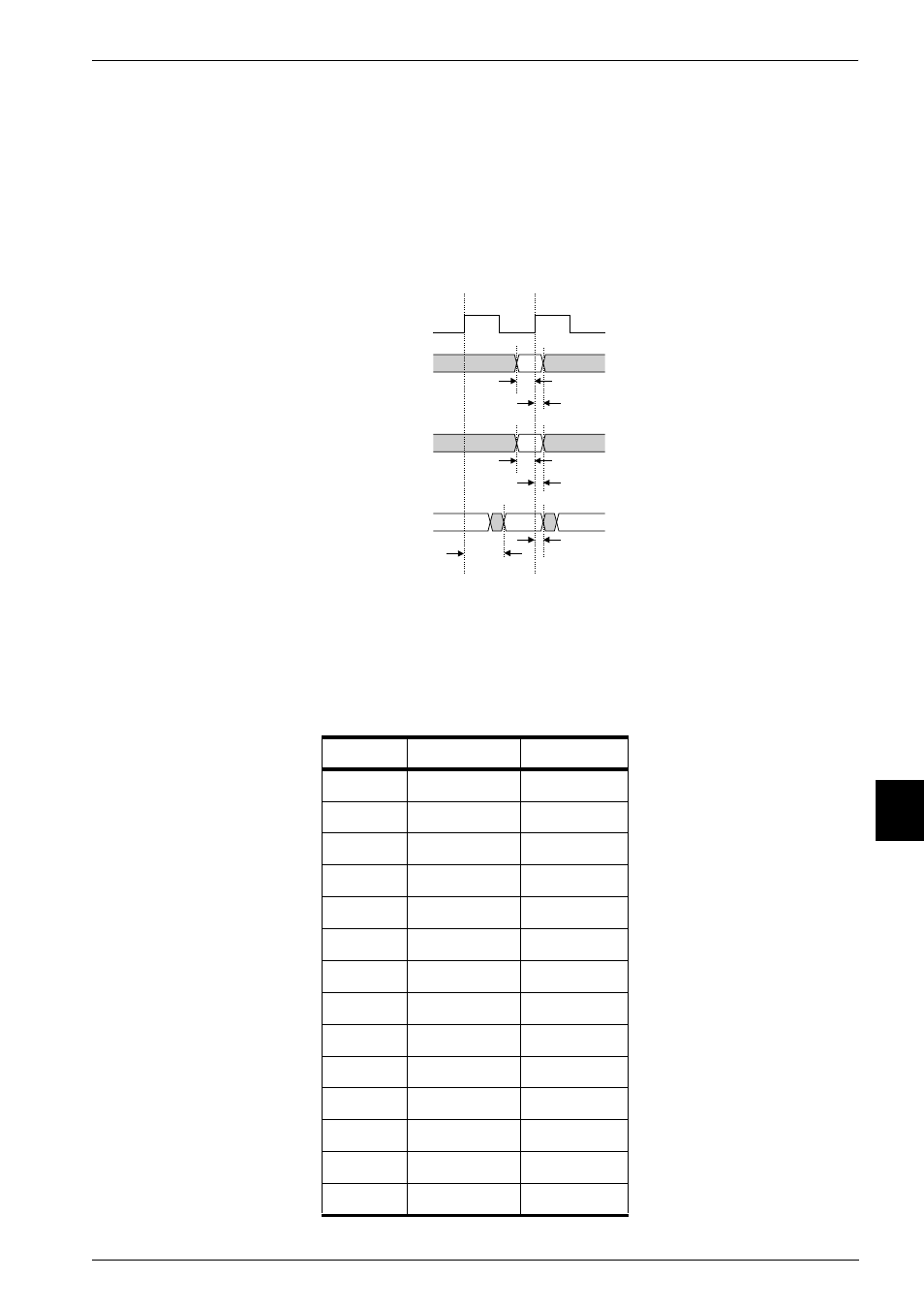

Figure 9-10 provides general scan timing information.
Figure 9-10 Scan timing
9.15.1
Scan chain 1 cells
The ARM720T processor provides data for scan chain 1 cells as shown in Table 9-6.
Table 9-6 Scan chain 1 cells
Number
Signal
Type
1
DATA[0]
Input/output
2
DATA[1]
Input/output
3
DATA[2]
Input/output
4
DATA[3]
Input/output
5
DATA[4]
Input/output
6
DATA[5]
Input/output
7
DATA[6]
Input/output
8
DATA[7]
Input/output
9
DATA[8]
Input/output
10
DATA[9]
Input/output
11
DATA[10]
Input/output
12
DATA[11]
Input/output
13
DATA[12]
Input/output
14
DATA[13]
Input/output
t
ohtdo
t
ovtdo
t
istctl
t
ihtctl
t
istcken
t
ihtcken
HCLK
DBGTCKEN
DBGTMS
DBGTDI
DBGTDO
