9: Debugging Your System
ARM720T CORE CPU MANUAL EPSON 9-3
9.2 Controlling debugging
The major blocks of the ARM720T processor are:
ARM CPU core This has hardware support for debug.
EmbeddedICE-RT macrocell
A set of registers and comparators that you use to generate debug
exceptions (such as breakpoints). This unit is described in The
EmbeddedICE-RT macrocell on page 9-10.
TAP controller Controls the action of the scan chains using a JTAG serial
interface. For more details, see The TAP controller on page 9-19.

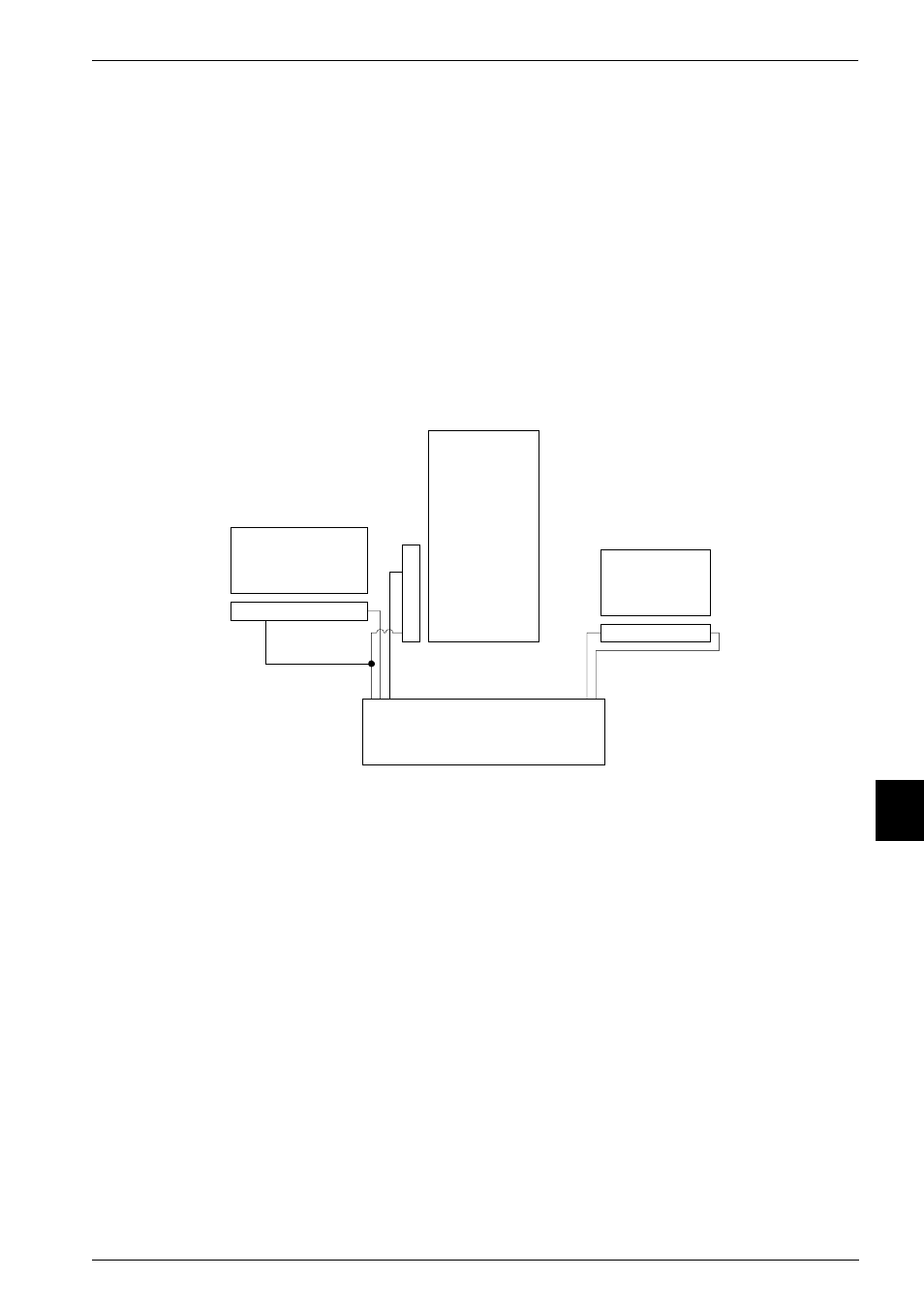

These blocks are shown in Figure 9-2.
Figure 9-2 ARM720T processor block diagram
ARM720T
processor
System control
processor
ARM720T
EmbeddedICE-RT
Scan chain 2
Scan chain 15
ARM720T TAP controller
(also provides scan chain 0
control signals)
S
c
an
c
hain
1
