Flange type terminal and wiring specifications – Yaskawa CIMR-AU 200V Drives User Manual
Page 85
n
Flange Type Terminal and Wiring Specifications
Wire gauges and tightening torques
are identical to standard models.
Unit: in. [mm]
CONTROL
CIRCUIT
TERMINALS
MAIN CIRCUIT
TERMINALS
(2) GROUND
TERMINALS
SECTION A-A

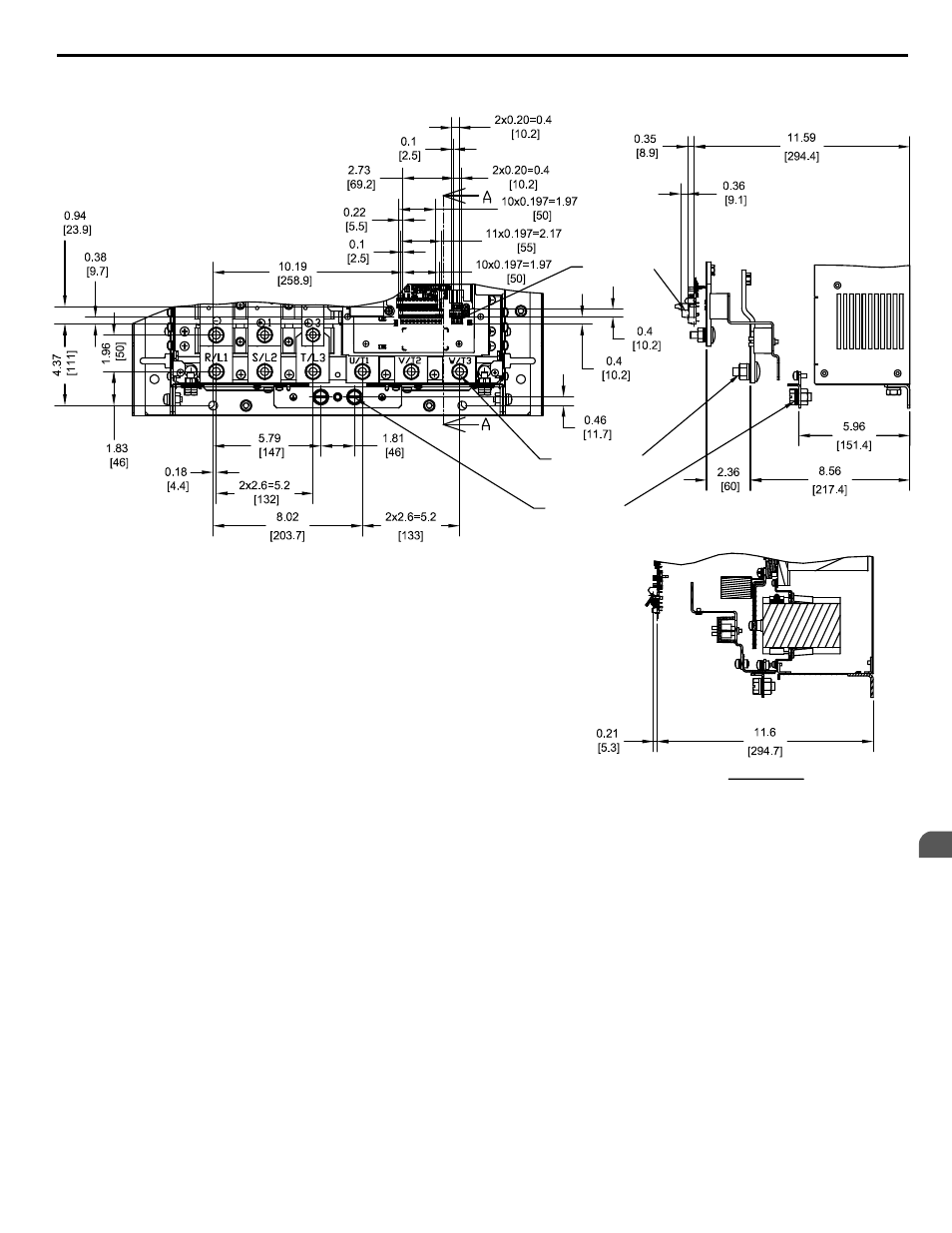

Figure 2.45 Models 2A0250 and 2A0312
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA ELECTRIC TOEP C710616 41E YASKAWA AC Drive - A1000 Quick Start Guide
85
2
Mechanical Installation
