54 5 Programming: Tools

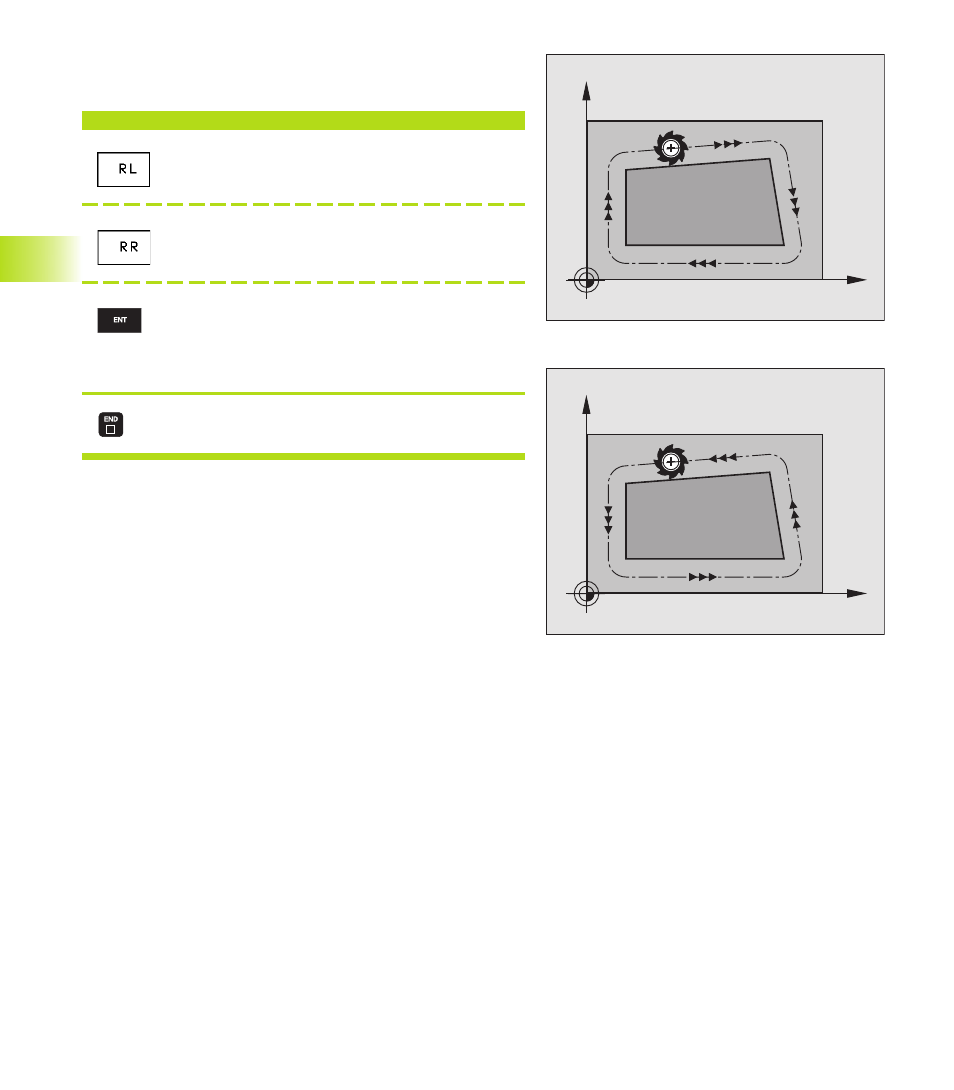

Entering radius compensation
When you program a path contour, the following dialog question is
displayed after entry of the coordinates:
Radius comp.: RL/RR/no comp. ?
<
To select tool movement to the left of the
contour, press the RL soft key, or
To select tool movement to the right of the
contour, press the RR soft key, or
To select tool movement without radius
compensation or to cancel radius
compensation, press the ENT key or the R0 soft
key.
To terminate the dialog, press the END key.
5.3 T
ool Compensation
X
Y
RL
X
Y
RR
