HEIDENHAIN TNC 410 User Manual
Page 304
291
HEIDENHAIN TNC 410
Non-HEIDENHAIN devices
The connector pin layout of a non-HEIDENHAIN device may differ
considerably from that of a HEIDENHAIN device.
This often depends on the unit and type of data transfer. The figure

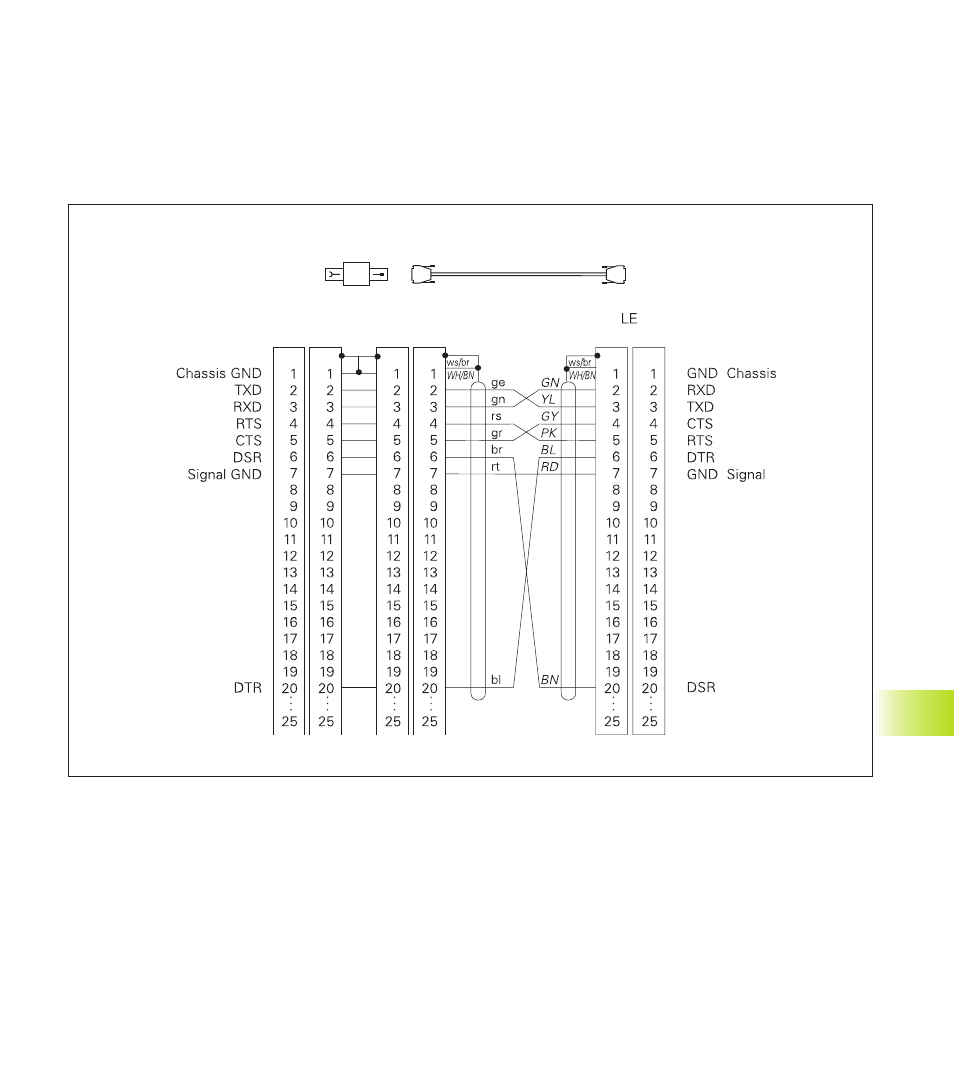

below shows the connector pin layout on the adapter block.
15.2 Pin La
y
out and Connecting Cable f
or the D
ata Int
erf
ace
RS-422 Adapter
block
