Multiple Controller with Multiple Broadcast Groups
In a multiple controller system with multiple broadcast groups (Figure 8), there are many
consoles that control multiple scoreboards and/or scoreboard groups. The radio receiver
inside the scoreboard is set to broadcast group 1–4 (Gen V) or 1–8 (Gen VI). By changing the
console settings to the specific broadcast group address, a single console can control all
scoreboards or specific groups of scoreboards. One example of this scenario is split court
operation in basketball installations, where scoreboards are used to score multiple games at
once, but can be grouped together to show one game if necessary.

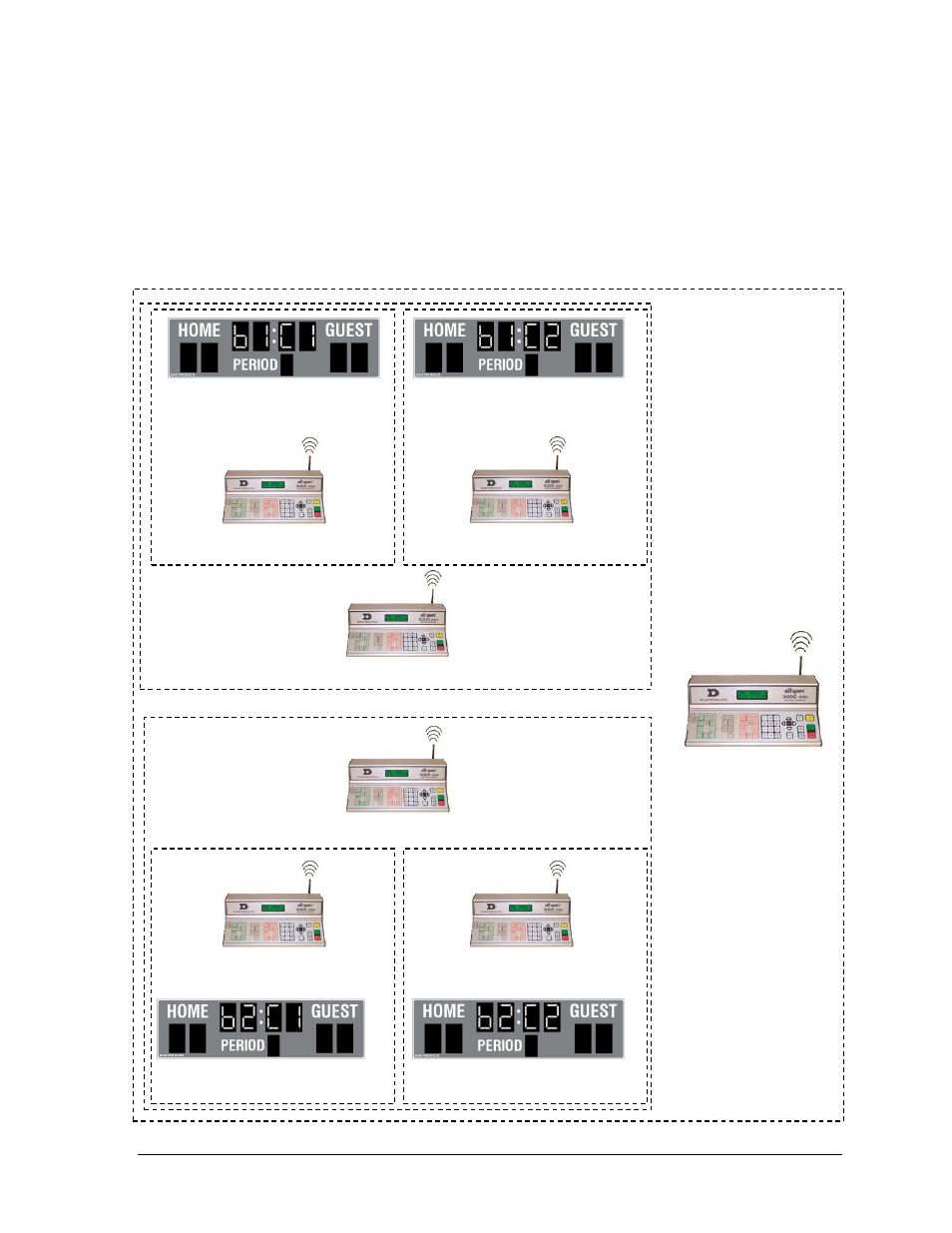

Figure 8: Multiple Broadcast Group
BCAST 1, CHAN 1 BCAST 1, CHAN 2
BCAST 1, CHAN 01 BCAST 1, CHAN 02
BCAST 2, CHAN 1
BCAST 2, CHAN 01
BCAST 1, CHAN 00
BCAST 2, CHAN 02
BCAST 2, CHAN 00
BCAST 0, CHAN 00
to control all at once
Or
BCAST 1-2,
CHAN 00
to control a specific
broadcast group
Or
BCAST 1-2,
CHAN 01-02
to control a specific
scoreboard BCAST 2, CHAN 2
