10 Basic Operation
Multiple Controller System with Single Broadcast Group
In a multiple controller system with a single broadcast group (Figure 7), there may be one
console for each scoreboard and/or one master controller that can run every scoreboard at
one time or take control of a specific scoreboard. An example of this type of system is a
softball complex with individual scoreboards on several different fields.
Multiple controller systems typically use Broadcast 1 and Channel 1 for the first controller
and Channels 2-8 for all remaining controllers. All radio receivers in the system must be set to
Broadcast 1 (BCAST 1).
Display Action
The LCD will toggle between
these 2 screens.
The LCD shows the current radio settings along with a prompt
to accept or modify these values.
If the radio settings are correct press .
If these values are incorrect press , and the LCD at
bottom left is shown, allowing edit of the channel or broadcast
group setting.
Broadcast Group Setting
1 Use this setting for all multiple controllers with single
broadcast group setups. Use the number keys to edit
this value and press to accept. The asterisk
will move to the channel setting.
Channel Setting
1-8 Edit the channel number to the desired value and press
to accept. The CHAN switch on the receiver
must match this value.

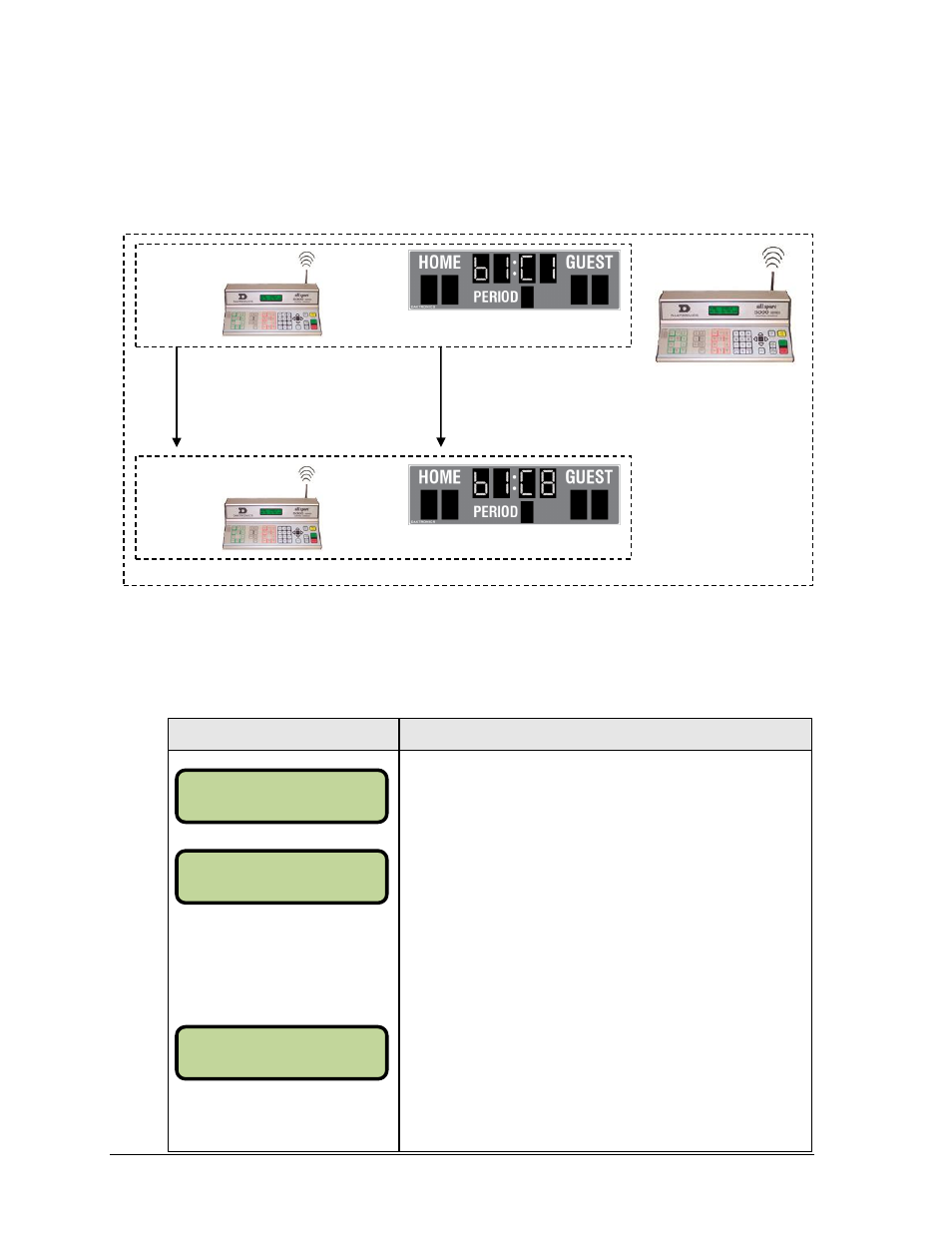

Figure 7: Single Broadcast Group
BCAST 1, CHAN 1
BCAST 1, CHAN 8
BCAST 1,
CHAN 01
BCAST 1,
CHAN 08
BCAST 0,
CHAN 00
to control all at once
Or
BCAST 1,
CHAN 01-08
to control a specific
scoreboard
ENTER TO ACCEPT
CLEAR TO MODI FY
RADI O SETTI NGS
BCAST X CHAN YY
BCAST GROUP 1*
RADI O CHAN 01
