Basic Operation 9
Single Controller System
In a single controller system (Figure 6), all radio receivers and all scoreboards receive signal
from the same console at all times. The default channel and broadcast group settings on the
receiver are not typically modified. An example of this type of system is a football field with a
scoreboard in one or both end zones displaying the same information.
Typically all single controller systems will use the default setting BCAST = 1, CHAN = 1.
All radio receivers in the system must be set to the same values.
Display Action
The LCD will toggle between
these 2 screens.
The LCD shows the current radio settings along with a prompt
to accept or modify these values.
If the radio settings are correct press .
If these values are incorrect press , and the LCD at
bottom left is shown, allowing edit of the channel or broadcast
group setting.
Broadcast Group Setting
1 Use this setting for all single controller systems. Use
the number keys to edit this value and press
to accept. The asterisk will move to the
channel setting.
Channel Setting
1-8 Edit the channel number to the desired value and
press to accept. The CHAN switch on the
receiver must match this value.

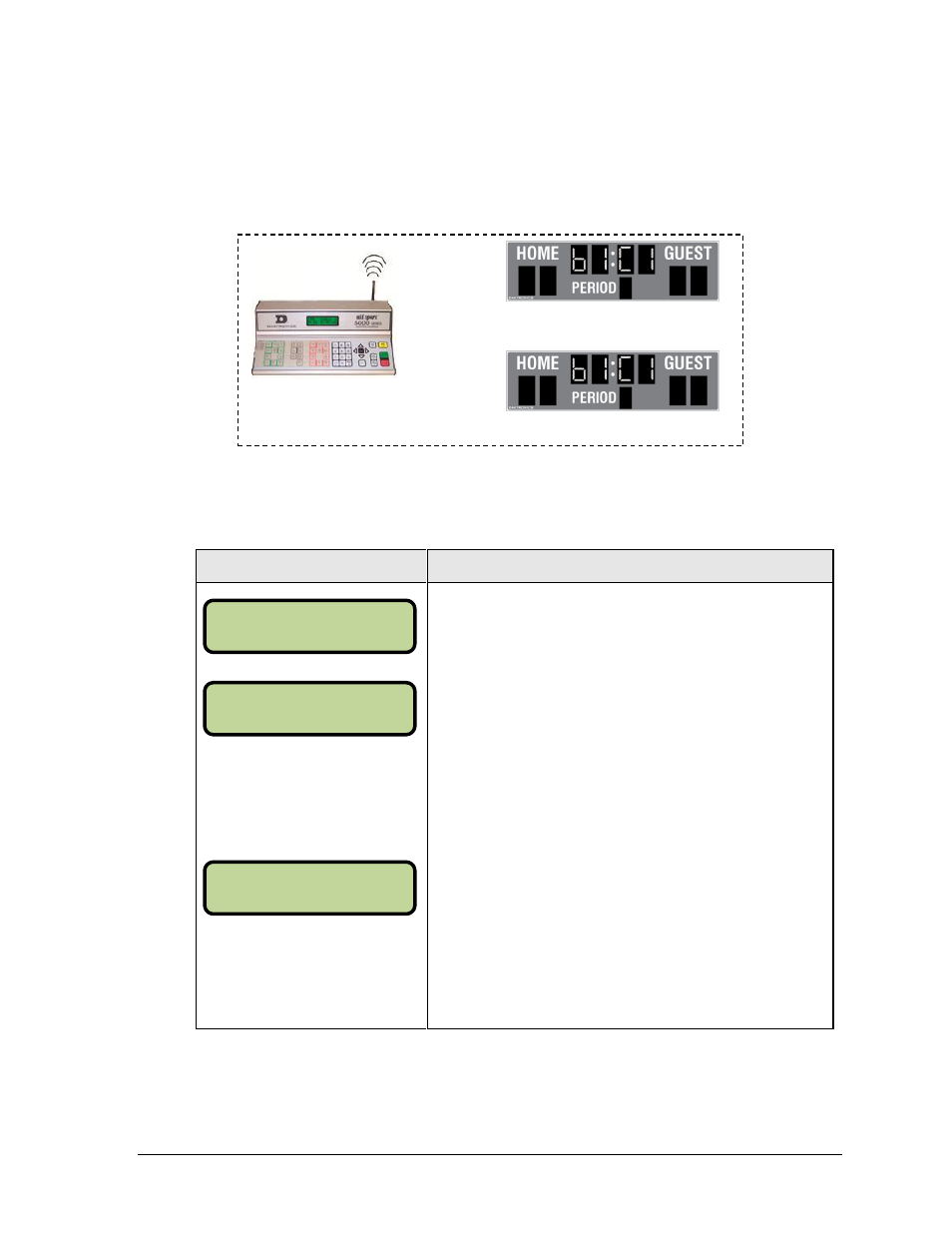

Figure 6: Single Control Console
BCAST 1, CHAN 1
BCAST 1, CHAN 1
BCAST 1, CHAN 01
RADI O SETTI NGS
BCAST X CHAN YY
ENTER TO ACCEPT
CLEAR TO MODI FY
BCAST GROUP 1*
RADI O CHAN 01
