Creating and Starting a Test Case
82 FTB-8500 Series and FTB-8120NGE/8130NGE
Ethernet RFC 2544 Test Case
To create an RFC 2544 test case:

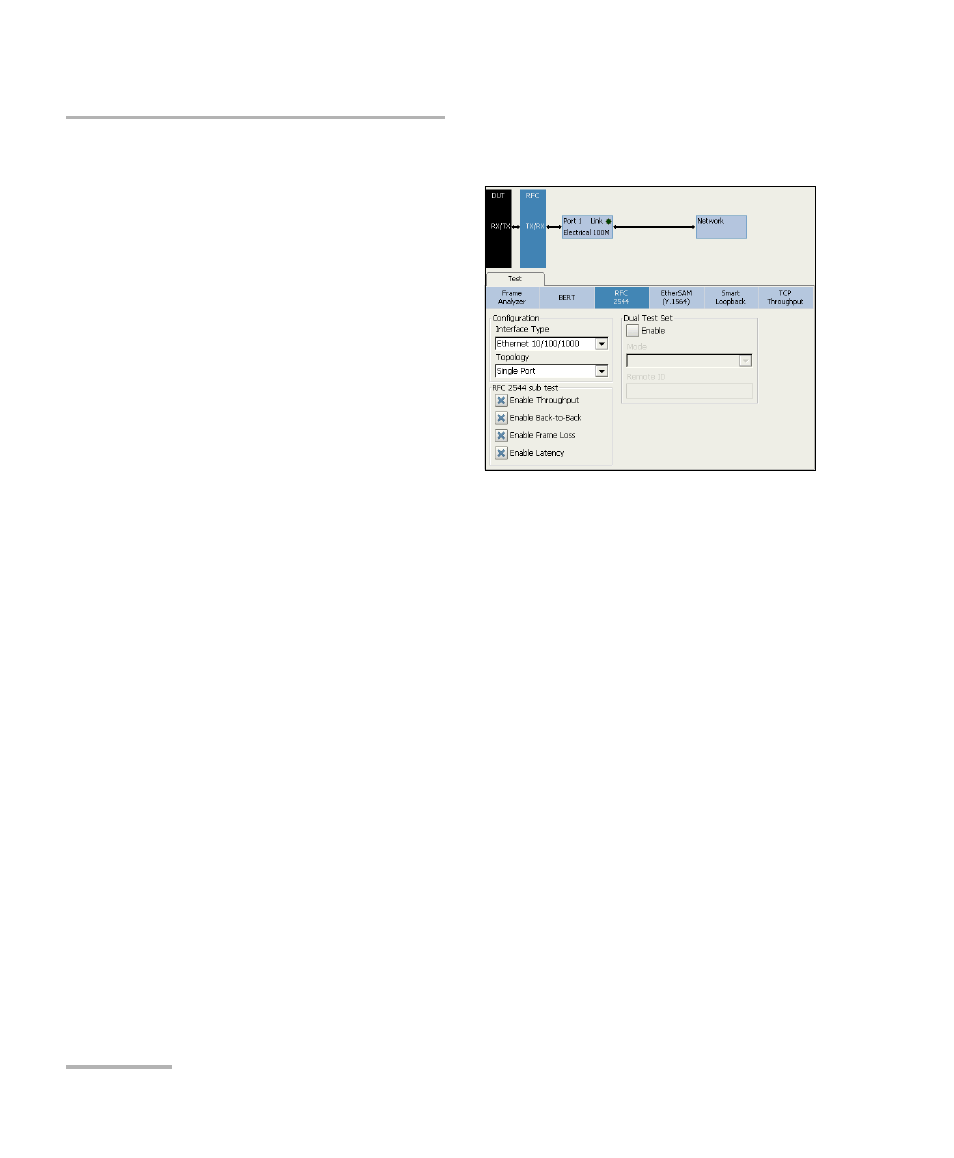

1. Test configuration:
1a. Select
Ethernet 10/100/1000
or Ethernet 10G as the
Interface Type.
Interface Type is not
available with
FTB-8510G.
1b. For FTB-8510B: Select
the Topology test type:
Single Port or Dual
Ports. When Dual Ports
is selected, the Port, Framing, Network, and Pattern nodes are
independently available for both ports.
1c. Select RFC 2544 as the application type.
1d. Select the desired RFC 2544 sub test(s). All RFC 2544 sub tests are
selected by default.
Enable Throughput: Gives the maximum throughput of the
device under test for which there is no frame loss. Refer to
Throughput Configuration on page 256 for more information.
Enable Back-to-Back: Gives the maximum number of frames that
can be sent at maximum throughput. Refer to Back-to-Back
Configuration on page 259 for more information.
Enable Frame Loss: Gives the percentage of frames that are lost.
Refer to Frame Loss Configuration on page 261 for more
information.
Enable Latency: Gives the time required for the sent frame to go
through the device under test. Refer to Latency Configuration on
page 263 for more information.
