Traffic Analyzer Tabs
180
FTB-8500 Series and FTB-8120NGE/8130NGE

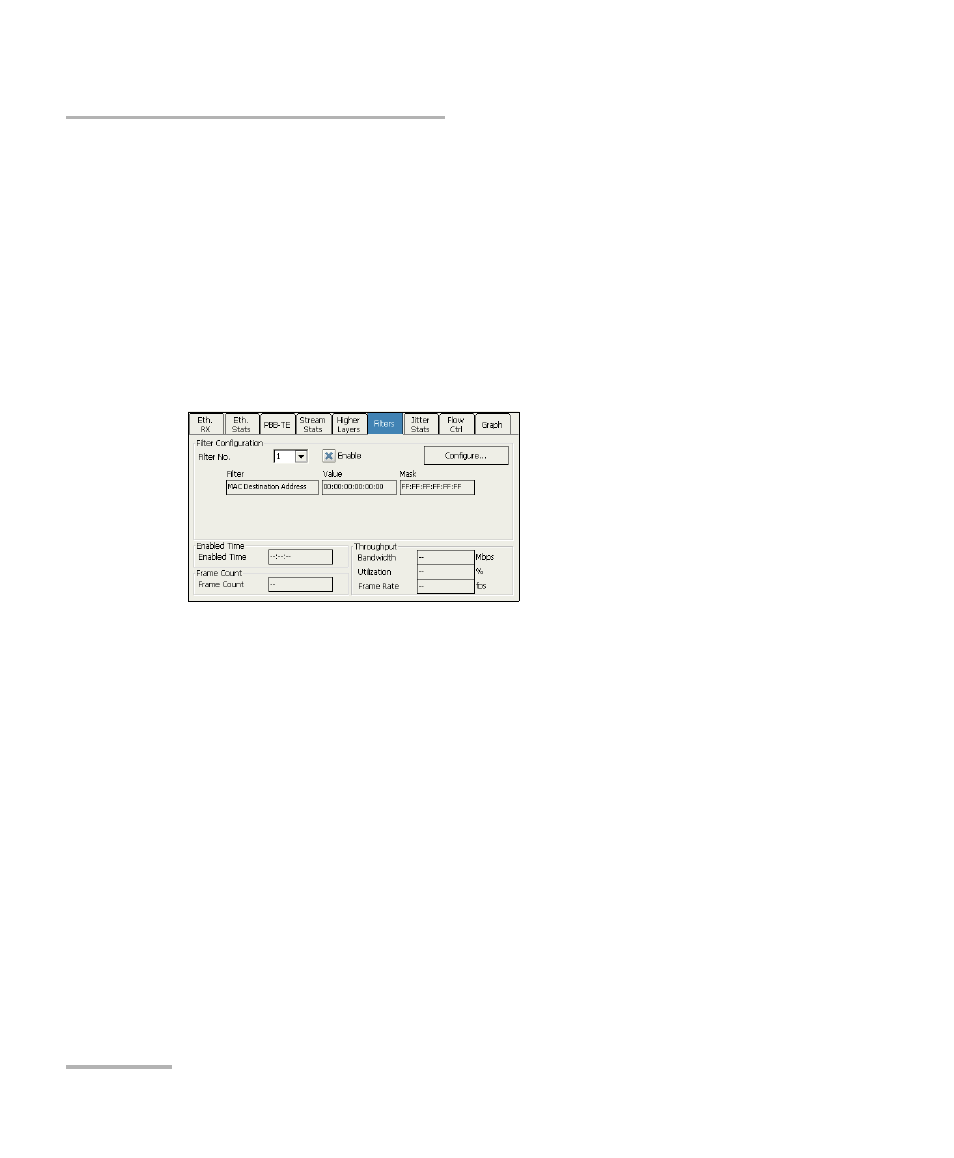

Traffic Filters
Traffic Filters
Allows gathering statistics according to the programmed filters. Up to 10
filters can be enabled and defined.
Note: The Filters tab is only available when the Advanced Traffic Filtering
software option (SK-ADV-FILTERS) is not enabled. Refer to Software
Options on page 355.
Press Main, Test, Traffic Analyzer, and Filters.
Filter Number (Filter No.)
Allows the selection of the filter number (1 to 10). The filter criteria, if
defined, will be displayed. A filter used (enabled) for data capture will not
be configurable and the message Filter in use for data capture is
displayed; refer to Filter on page 189.
Enable
Allows enabling the selected filter.
Configure
