EXFO FTB-8500 Series for FTB-200 - Manual (Page 87)

Creating and Starting a Test Case
Ethernet and Fibre Channel Application 73
Ethernet EtherSAM (Y.1564) and RFC 2544 Dual Test Set Test Cases
Ethernet EtherSAM (Y.1564) and RFC 2544 Dual
Test Set Test Cases
The EtherSAM (Y.1564) test allows to validate the key performance
indicators of Carrier Ethernet-based services.
The RFC 2544 test allows Ethernet Throughput, Back-to-Back, Frame
Loss, and Latency performance tests in accordance with RFC 2544
specifications.

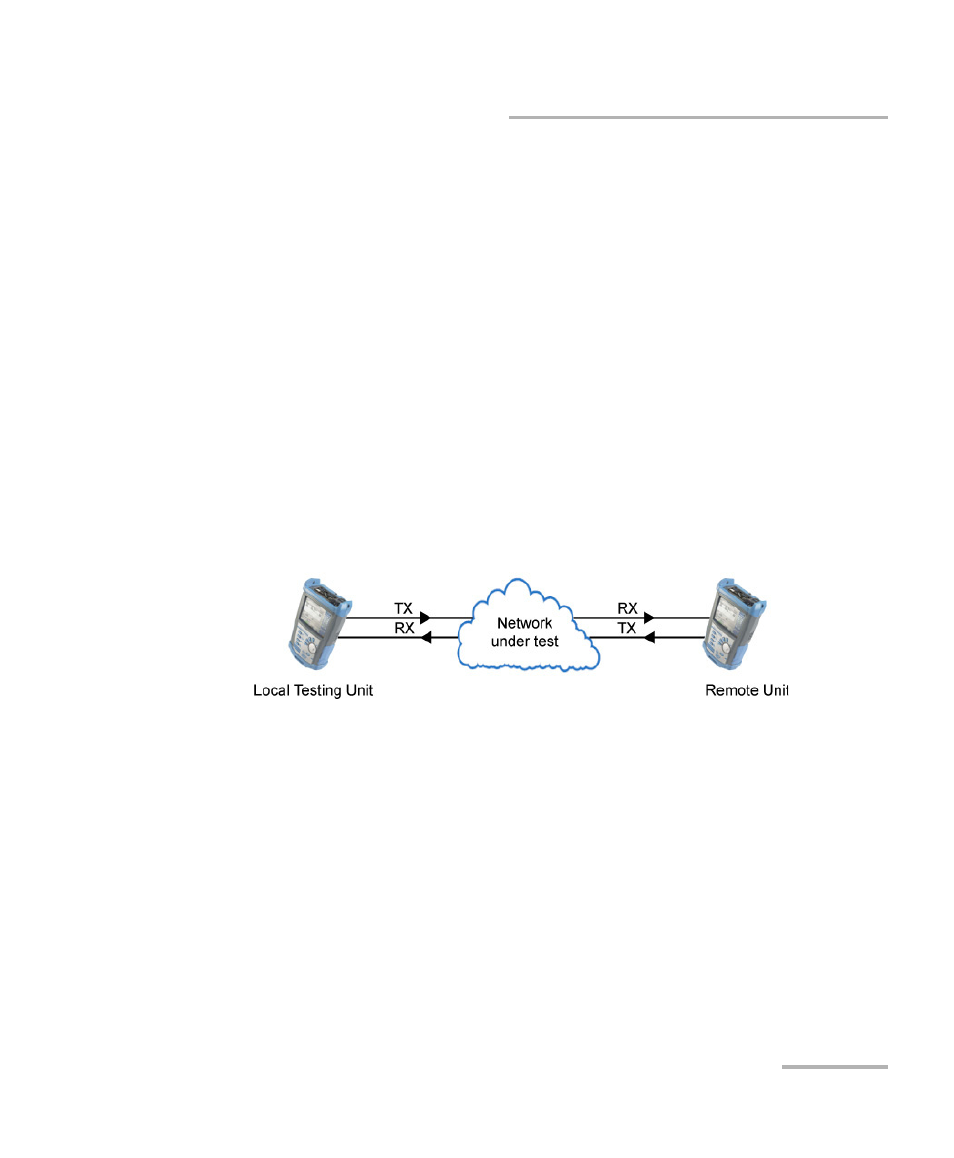

Dual Test Set test allows bi-directional test between two compatible
modules providing independent results for each test direction. Compatible
modules are FTB-8510B, FTB-8510G, FTB-8525/FTB-8535,
FTB-8120NGE/FTB-8130NGE, or RTU-310/RTU-310G. A Dual Test Set test
case must be first created on the remote module then on the local module
as described in the following procedure. The results from local-to-remote
and remote-to-local are available on the local testing unit.
