Creating and Starting a Test Case
100 FTB-8500 Series and FTB-8120NGE/8130NGE
Ethernet Smart Loopback Test Case

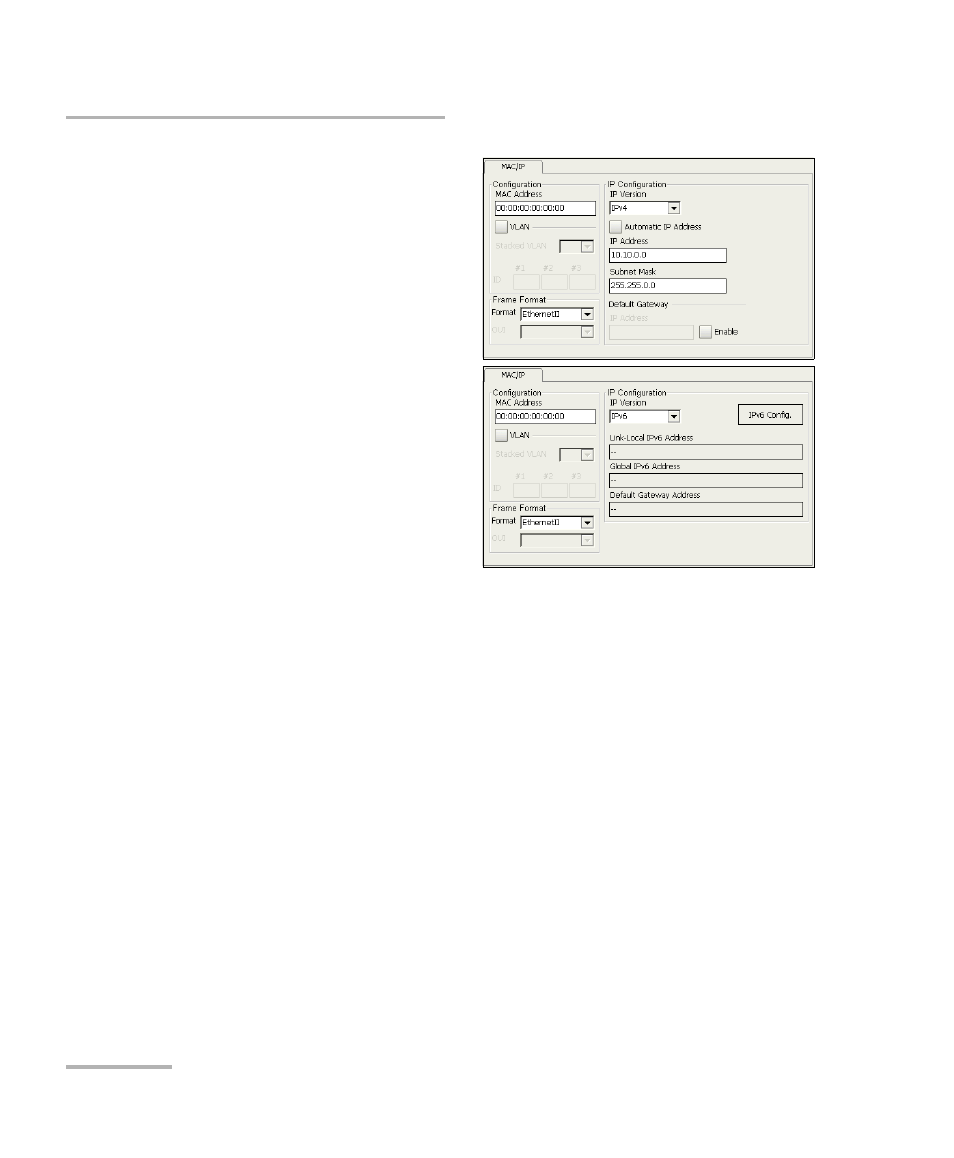

3. Framing configurationPress
the Network node.
3a. If required, set the
network MAC address
(MAC/IP tab) and VLAN
(VLAN tab) parameters
when required. Refer to
Network Setup on
page 129 for more
information.
3b. Select the Frame
Format. Choices are
Ethernet II and
802.3 SNAP. Refer to
Network Setup on
page 129 for more
information.
3c. Set the IP Version (IPv4 or IPv6). IP Version is only available
when the IPv6 software option (SK-IPV6) is enabled.
3d. Set the IP Address, Subnet Mask, Automatic IP Address, and
Default Gateway parameters to complete the test setup. Refer to
IP Configuration on page 130 for more information.
4. Press the Start button to start the test. Pressing the Start button while
in test setup window, will automatically switch to the tab Ethernet
Statistics on page 170.
5. For additional results, refer to Traffic Analyzer Tabs on page 163.
