Ethernet and Fibre Channel Application
395
Traffic Scan
Filter Cfg

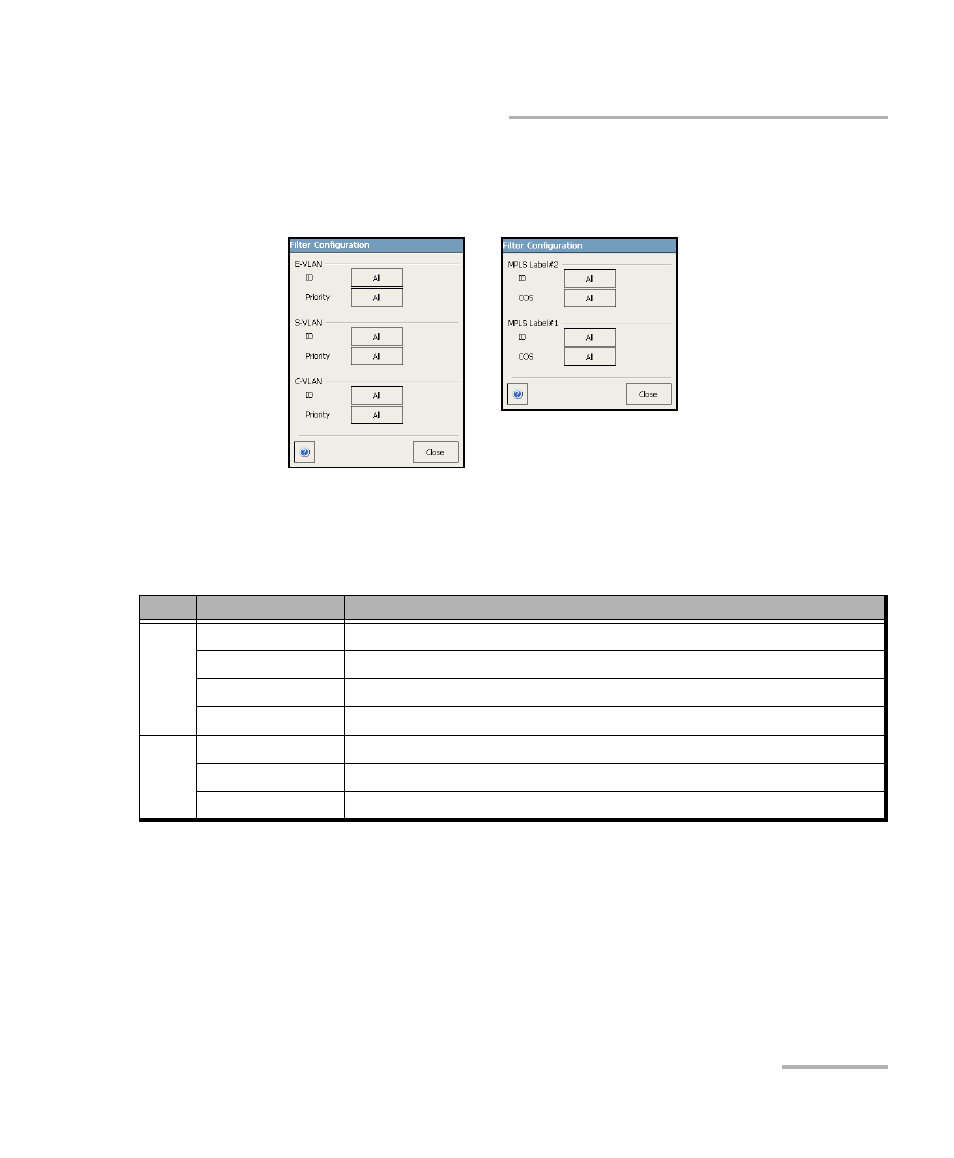

Press the Filter Cfg button to access to the filter configuration pop-up.
Only parameters set to All will be considered to identify each traffic
flow. The availability of filters depends on the VLAN or MPLS Level
selected.
Scan
Level
Filters
VLAN All and E-VLAN E-VLAN priority, S-VLAN ID and Priority, C-VLAN ID and Priority.
S-VLAN
S-VLAN Priority, C-VLAN ID and Priority.
C-VLAN
C-VLAN Priority.
Untagged
Not applicable.
MPLS All and 2 Labels MPLS Label#2 COS, MPLS Label#1 ID and COS.
1 Label
MPLS Label#1 COS
Unlabeled
Not applicable.
