FTB-8500 Series and FTB-8120NGE/8130NGE
Traffic Scan
Frame Count indicates for each traffic flow, the number of frames
matching the selected scan criteria and filters.
Total indicates the number of frames matching the selected scan
criteria and filters.
Rate (Mbps) indicates for each traffic flow, the rate of frames received
matching the selected scan criteria and filters. The rate is expressed
either in Line Utilization or Ethernet Bandwidth (see Rate Layer on
page 391).
Total indicates the total rate of frames matching the selected scan
criteria and filters.
Last Seen indicates the time elapsed since the last frame, matching
the selected scan criteria and filters, was received.

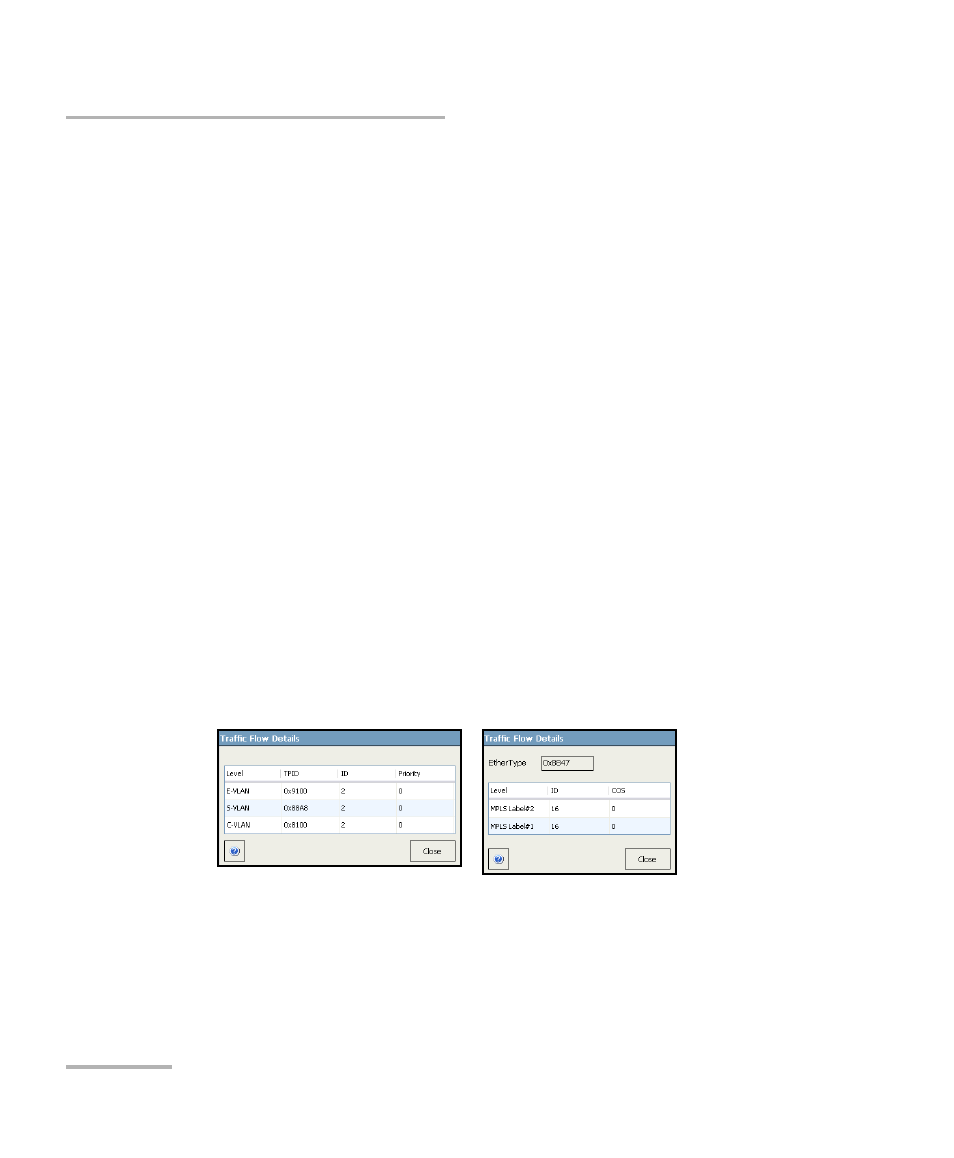

Details
Allows to see detailed information for the selected traffic flow. Select a
traffic flow from the list and click on the Details button. The detailed
information includes:
For VLAN: The VLAN Label, and its TPID (Tag Protocol ID), ID, and
Priority.
For MPLS: The EtherType, and its MPLS Level, ID, and COS.
