Creating and Starting a Test Case
76 FTB-8500 Series and FTB-8120NGE/8130NGE
Ethernet EtherSAM (Y.1564) and RFC 2544 Dual Test Set Test Cases

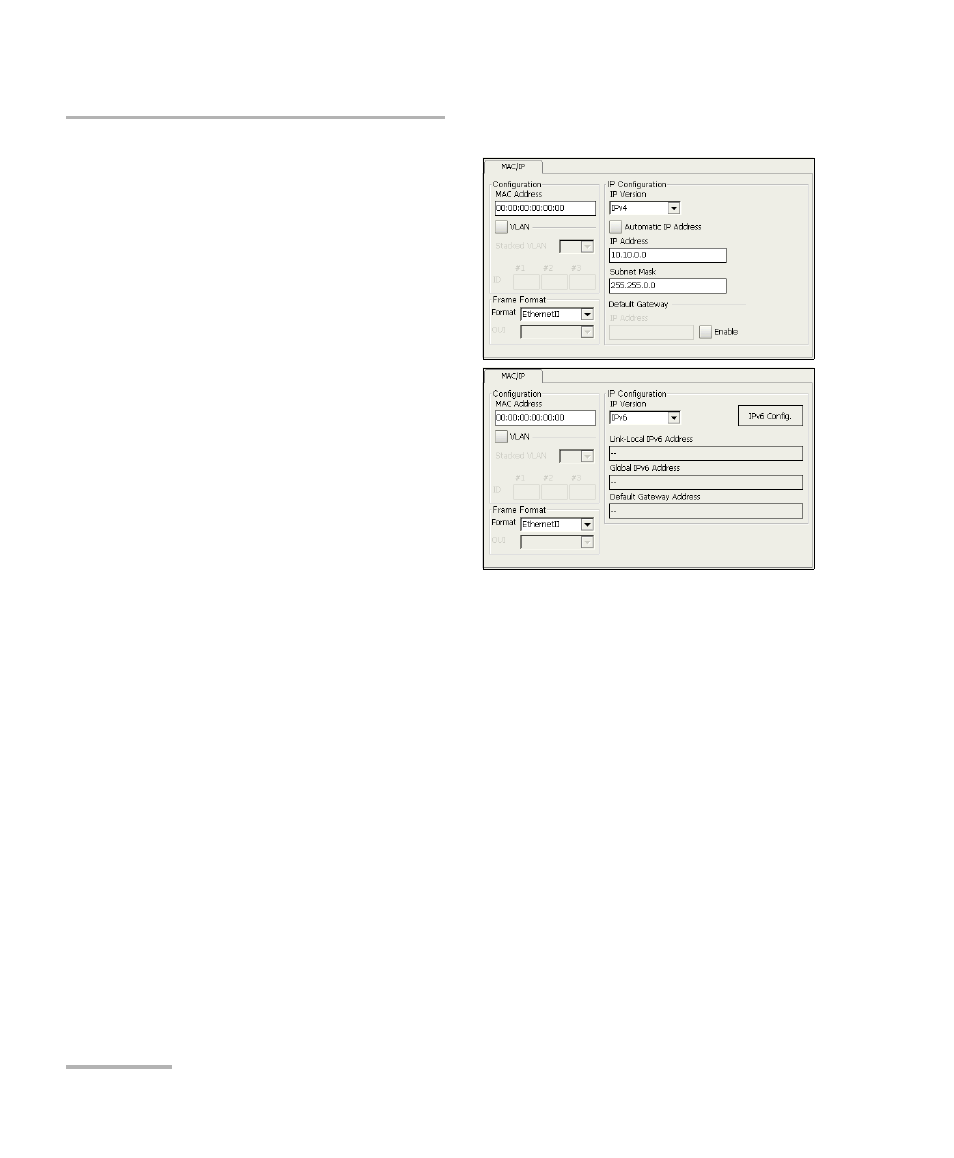

3. Press the Network node.
3a. If required, set the
network source MAC
address. Select the
VLAN check box (VLAN
tab) when required and
set its parameters to
complete the test setup.
Refer to Network Setup
on page 129 for more
information.
3b. Select the Frame
Format. Choices are
Ethernet II and 802.3
SNAP. Refer to Network
Setup on page 129 for
more information.
3c. Set the IP Version (IPv4 or IPv6). IP Version is only available
when the IPv6 software option (SK-IPV6) is enabled.
3d. For IPv4, select the Automatic IP Address check box to
dynamically obtain an IP address from a DHCP (Dynamic Host
Configuration Protocol) server or set the source and destination IP
addresses, Subnet Mask, and the Default Gateway. Refer to IPv4
Configuration on page 441 for more information.
3e. For IPv6, press the IPv6 Config button to set the IPv6 settings.
Refer to IPv6 Address Configuration on page 443 for more
information.
When the test is created as remote on a unit or on a compatible unit
(FTB-8510B, FTB-8510G, FTB-8525/FTB-8535,
FTB-8120NGE/FTB-8130NGE, or RTU-310/RTU-310G), the SUI is limited
to the following: Test Setup, Tools, System, and About tabs; favorites,
save, load, and report functionality. No test configuration and results
are available.
