EXFO FTB-8500 Series for FTB-200 - Manual (Page 294)

EtherSAM Tabs
280 FTB-8500 Series and FTB-8120NGE/8130NGE
Overview (Configuration)
Overview (Configuration)

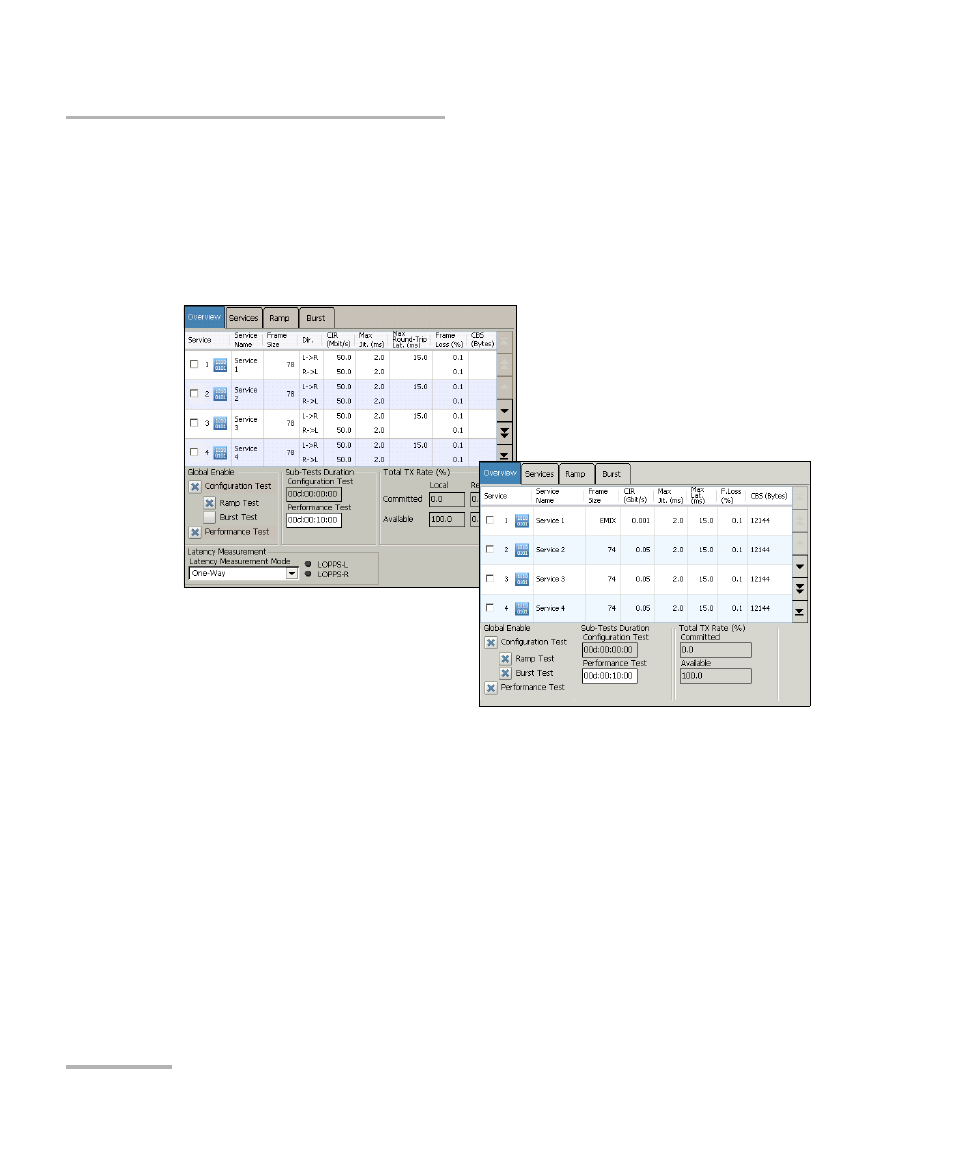

The Overview tab allows the activation of up to 10 services and displays a
summary of the service settings.
Press Main, Test, EtherSAM, Configuration, and Overview.
Service Overview Table
The overview table allows the activation of up to 10 services and displays
some service settings. See Services (Configuration) on page 285 for more
information.

The Service check boxes allow enabling the corresponding service to
be part of the test. For Dual Test Set, services can only be enabled once
the connection with the remote unit is established.
When the Performance Test is enabled, up to 10 services can be
enabled one after the other, as long as the total TX Rate (bandwidth) is
not reached (Committed). For example, if the first service is using the
