Creating and Starting a Test Case
Ethernet and Fibre Channel Application
107
Fibre Channel BERT Test Case

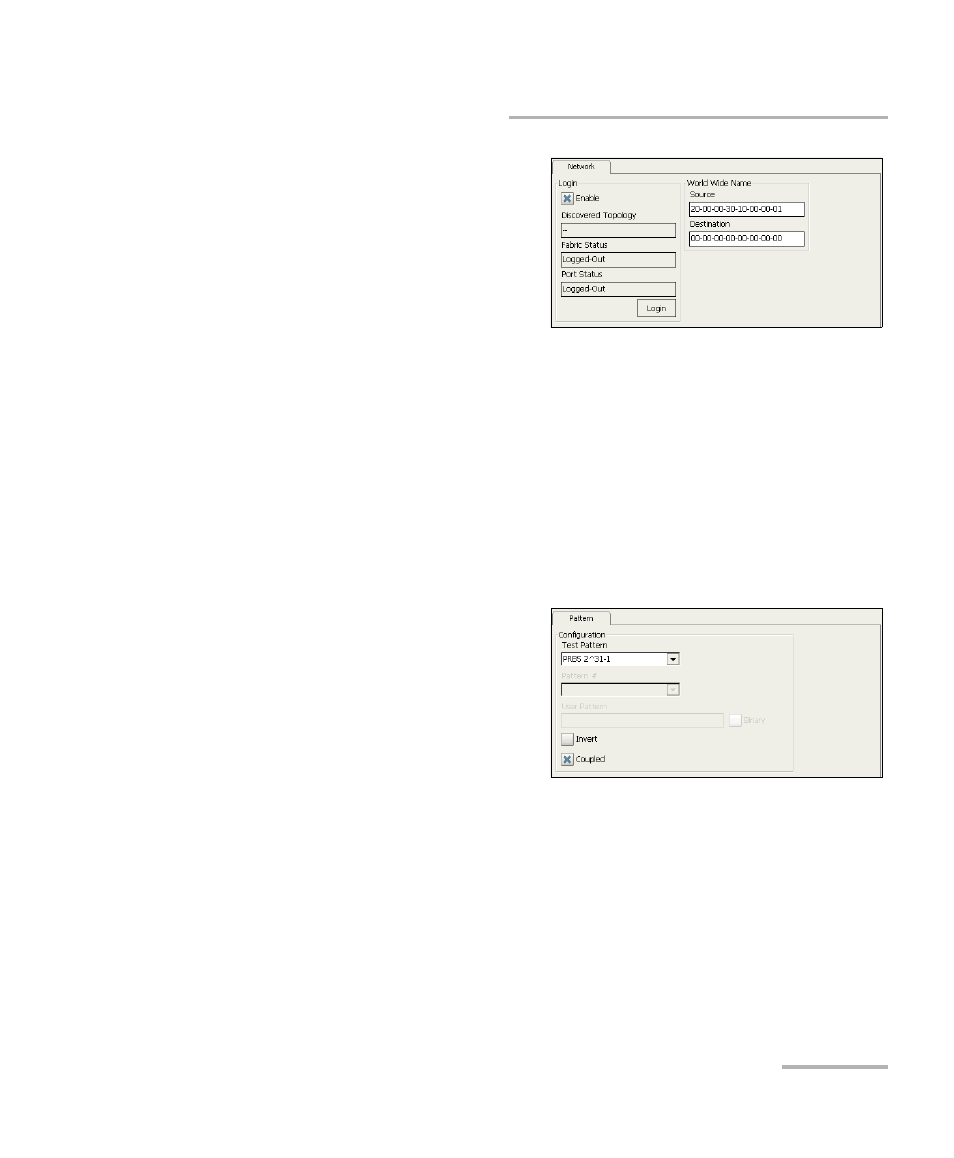

4. Press the Network node
(available with Framed
Layer 2 only).
4a. Set the network
parameters. Refer to
Interface on page 139
for more information.
4b. Select the Enable check box to generate a login process when
pressing on the Login button.
4c. Select the source and destination World Wide Name (WWN)
addresses. WWN is only available when the Enable login check
box is selected.
4d. Press the Login button to initiate the Login process with the
selected Advertised BB_Credit (refer to page 140). The capability
to log in is available only with Framed Layer 2 when a successful
link has been established.
5. Press the Pattern node.
5a. Set the pattern
parameters to complete
the test setup. Refer to
Pattern TX on page 246
for more information.
6. For additional configuration
parameters, refer to Stream Generation Tabs on page 203.
7. Press the Start button to start the test. Pressing the Start button while
in test setup window, will automatically switch to the tab Alarm
Summary on page 116.
8. For additional results, refer to Traffic Analyzer Tabs on page 163 and
