Creating and Starting a Test Case
96 FTB-8500 Series and FTB-8120NGE/8130NGE
Ethernet Frame Analyzer Test Case

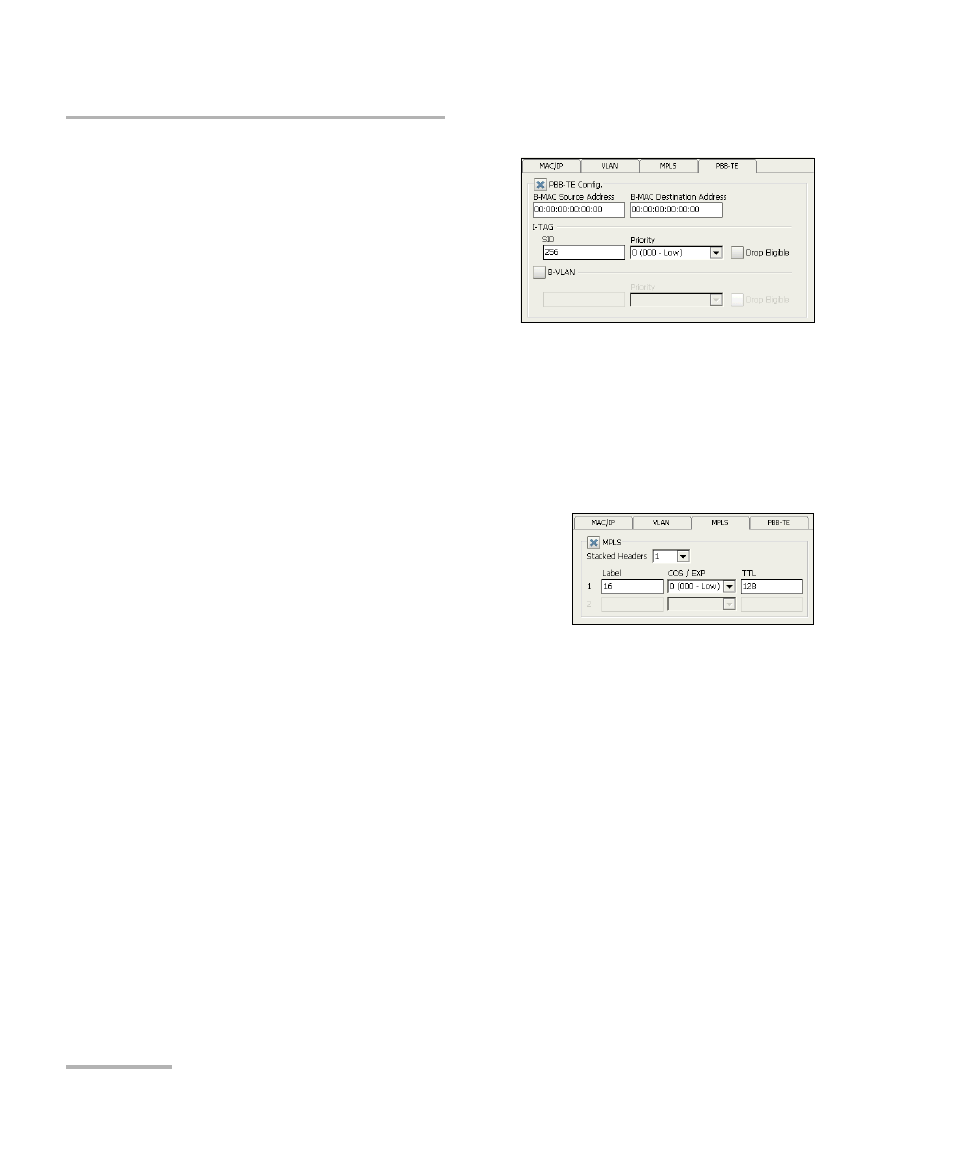

3g. Press the PBB-TE tab and
selectthe PBB-TE Config
check box to enable the
capability to generate and
analyze streams with
PBB-TE data traffic including
configuration of B-MAC
(source and destination),
B-VLAN and I-tag, and to filter received traffic by any of these
fields. PBB-TE is a software option and needs to be enabled to
give access to the PBB-TE testing capability (refer to Software
Options on page 355). PBB-TE is not available when the MPLS or
IPTV (FTB-8510B) check box is selected. Refer to PBB-TE on
page 220 for more information.
3h. Press the MPLS tab and select the
MPLS check box to enable the
capability to generate and analyze
streams with up to two layers of
MPLS labels and to filter received
traffic by MPLS label or COS. MPLS
is a software option and needs to be enabled to give access to the
MPLS testing capability (refer to Software Options on page 355).
MPLS is not available when the PBB-TE or IPTV (FTB-8510B)
check box is selected. Refer to MPLS on page 225 for more
information.
Note: For dual ports, if PBB-TE or MPLS feature has been enabled on the first
port, only the same feature may be enabled on the second port.
3i. Select the Frame Format. Choices are Ethernet II and
802.3 SNAP. Refer to Frame Format on page 222 for more
information.
