Pop-Up Windows
Ethernet and Fibre Channel Application
463

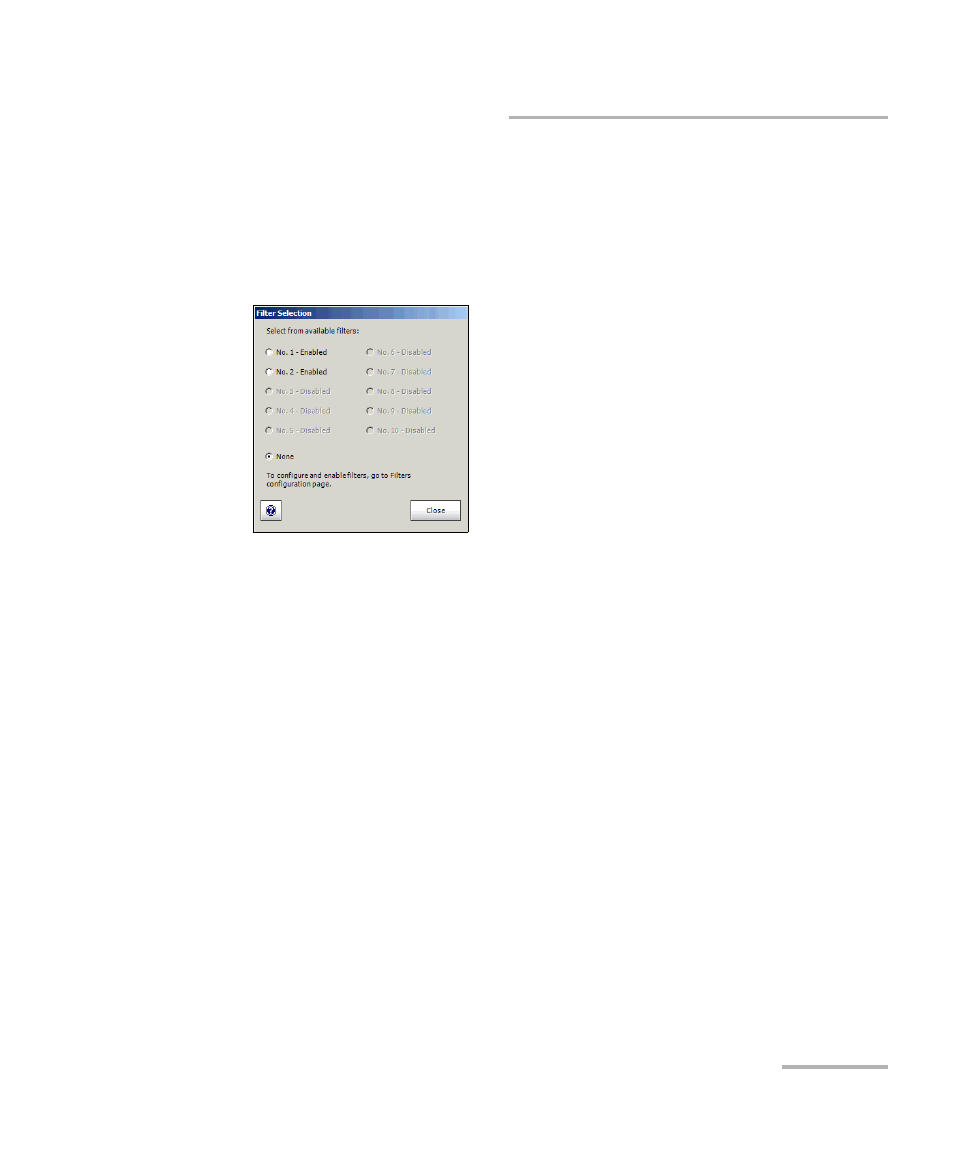

Filter Selection
Filter Selection
This pop-up window is only available from Traffic Analyzer - Capture tab.
Allows to select the filter number that will be used to select what frames
are saved in the buffer.
Only enabled filters are selectable. To configure and enable filters, see
Traffic Filters on page 180 or Traffic Filter Configuration on page 182.
None indicates that there is no filter selected meaning that all received
frames will be captured.
