Pattern (bert), Alarms – EXFO FTB-8500 Series for FTB-200 User Manual
Page 353
Expert Mode Tabs
Ethernet and Fibre Channel Application
339
Pattern (BERT)
Pattern (BERT)
Press ,
and
Pattern.

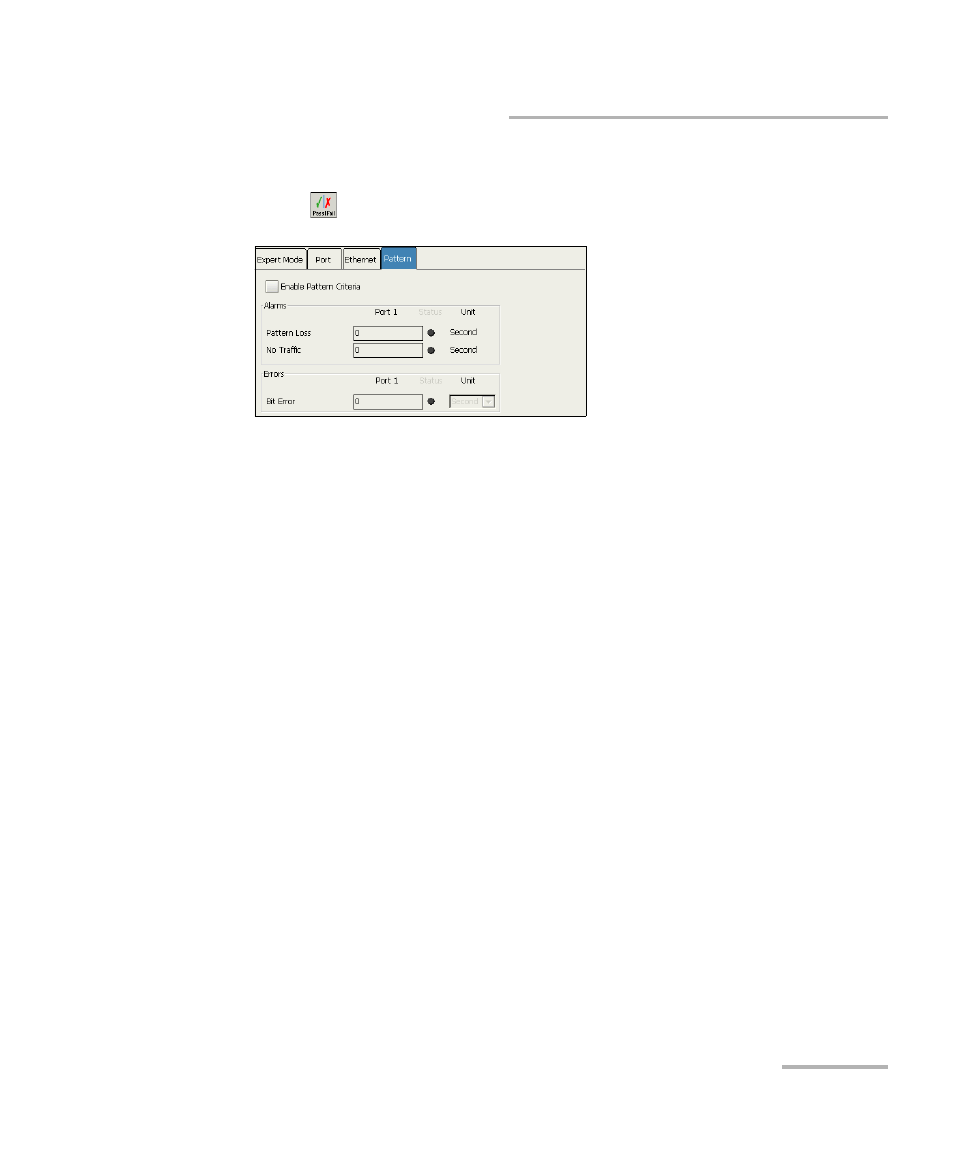

Enable Pattern Criteria: Enable Pattern Criteria enables configuring the
Pattern pass/fail threshold values and parameters (Port 1 and Port 2 for
Dual Ports on FTB-8510B). This setting is disabled by default.
Alarms
Enter the threshold value for each alarm: Pattern Loss and No Traffic.
Status: Indicates the real-time pass/fail condition.
Grey LED: Indicates that Expert Mode is disabled or the test did not
run yet.
Green LED: Indicates that the threshold is respected (Pass).
Red LED: Indicates that the threshold is not respected (Fail).
Unit: The unit is Second.
