96
EVENT SETTINGS
Function Description
Operations in this example are as follows.
• Phase 1 shifts to Phase 2 with the control input 5 ("Emergency sequence 1 phase shift" signal) before the
Phase 1 broadcast ends.
• All emergency broadcast patterns including the same Emergency sequence 1 stop with the control input 6
("Emergency sequence 1 stop" signal).
• All emergency broadcast patterns stop with the control input 7 ("Emergency reset" signal). The status will
return to normal broadcast status after Reset EV message is broadcast to all the zones where Emergency
broadcast pattern was broadcast.

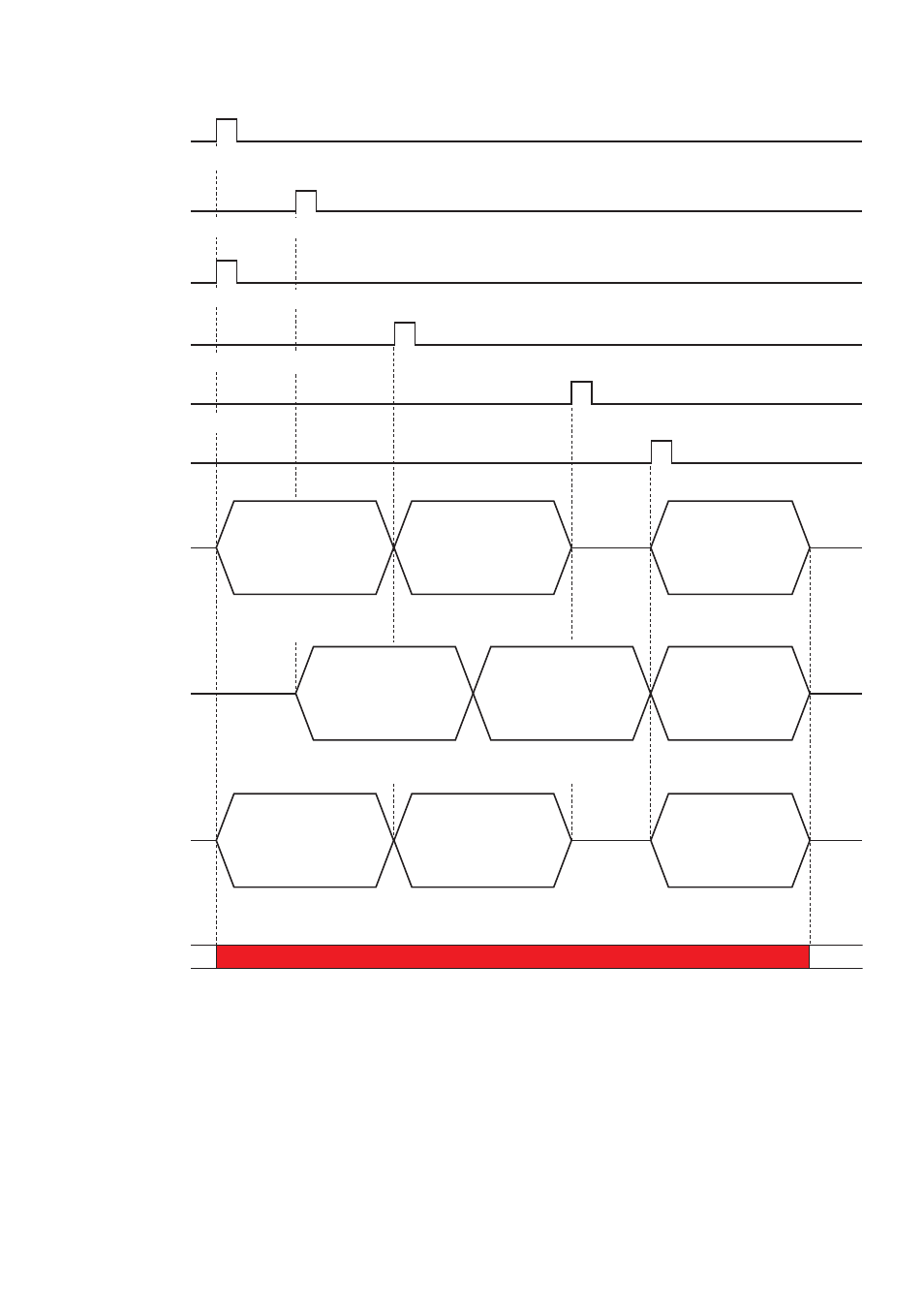

[Operation example 2]
Note
When the zone output patterns in the phases of both emergency broadcast patterns 1, 2,
and 3 include the same zone(s), the emergency broadcast pattern with higher-priority EV
message has precedence if both broadcasts to the same zone(s) overlap.
Emergency
(Emergency broadcast
pattern 1, Phase 1) (Emergency broadcast
pattern 1, Phase 2) (Emergency reset)
(Emergency reset)
(Emergency reset)
Control input 5
(Emergency sequence 1 phase shift)
Control input 6
(Emergency sequence 1 stop)
Control input 7
(Emergency reset)
Broadcast status
Control input 1
(Emergency broadcast pattern 1 start)
Control input 2
(Emergency broadcast pattern 2 start)
Control input 3
(Emergency broadcast pattern 3 start)
"EV1" is broadcast to the
zones assigned to the
output zone pattern 1.
Control output pattern 1:
ON
"EV2" is broadcast
continuously to the zones
assigned to the output
zone pattern 2.
Control output pattern 2:
ON
"EV5" is broadcast to
the zones assigned to
the out zone patterns 1
and 2.
(Emergency broadcast
pattern 2, Phase 1) (Emergency broadcast
pattern 2, Phase 2)
"EV3" is broadcast to the
zones assigned to the
output zone pattern 3 for
5 minutes.
Control output pattern 3:
ON "EV4" is broadcast
continuously to the zones
assigned to the output
zone pattern 4.
Control output pattern 4:
ON
"EV5" is broadcast to
the zones assigned to
the output zone
patterns 3 and 4.
(Emergency broadcast
pattern 3, Phase 1) (Emergency broadcast
pattern 3, Phase 2)
"EV1" is broadcast to the
zones assigned to the
output zone pattern 5.
Control output pattern 5:
ON
"EV2" is broadcast
continuously to the output
zones assigned to the
output zone pattern 6.
Control output pattern 6:
ON
"EV5" is broadcast to
the zones assigned to
the output zone
patterns 5 and 6.
ON
ON
ON
ON
ON
ON
Normal Emergency
