Control Input and Output Status Confirmation
13.5. Control Input and Output Status Confirmation
The SX-2000 system control input and output statuses can be confirmed in real time.
Step 1. Establish communications between the SX-2000SM and the PC installed with the SX-2000 software.
For the procedure for establishing communications, refer to
p. 155 "Establishing Communications
Between the SX-2000SM and a PC."
The "Connection" indication is displayed in the lower right corner of the screen after the connection is
completed.

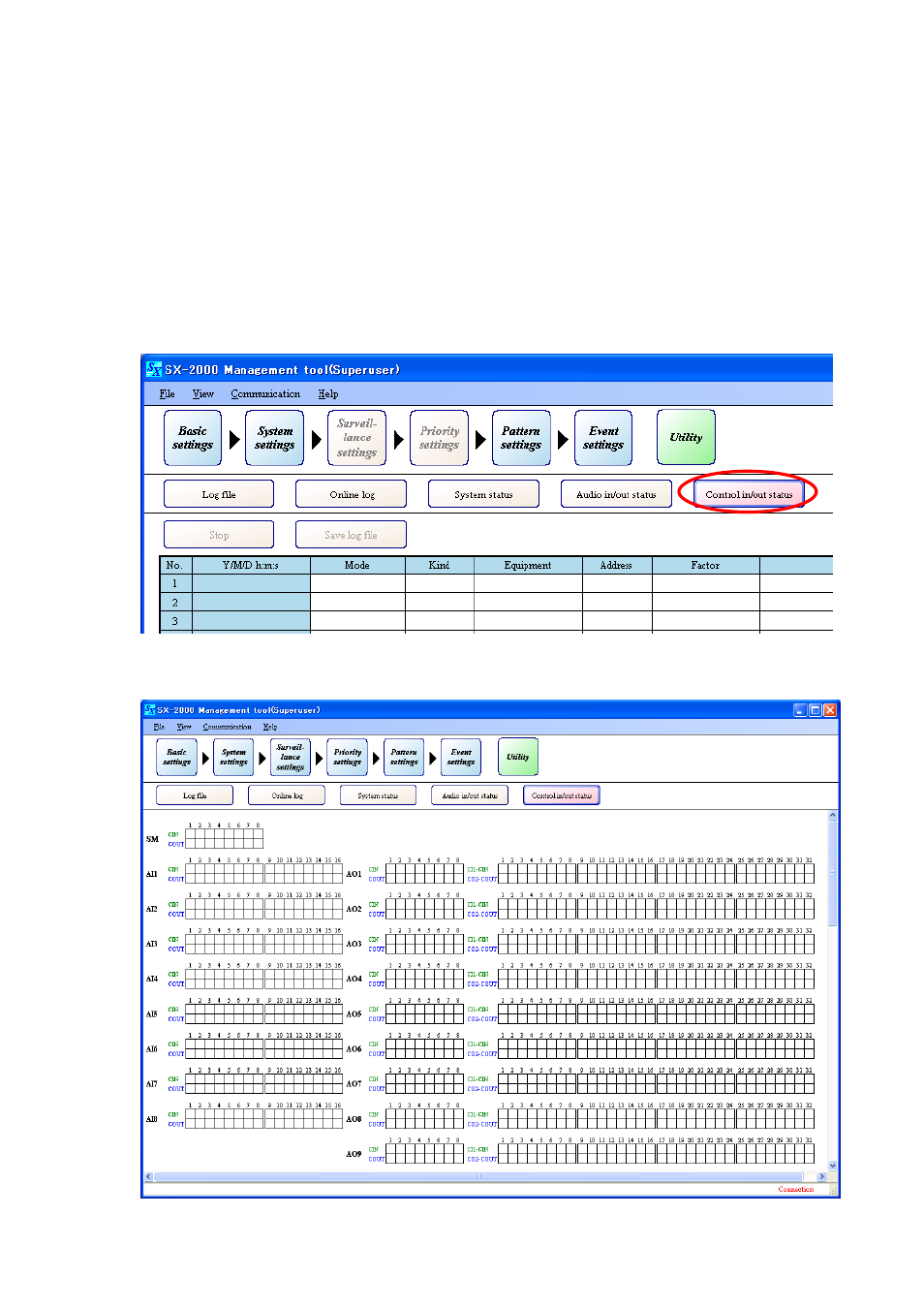

Step 2. Press the [Control in/out status] button on the Utility screen.
The control input/output status display screen is displayed.
