Toa SX-2000 Series - Manual (Page 87)

87
EVENT SETTINGS
12. EVENT SETTINGS

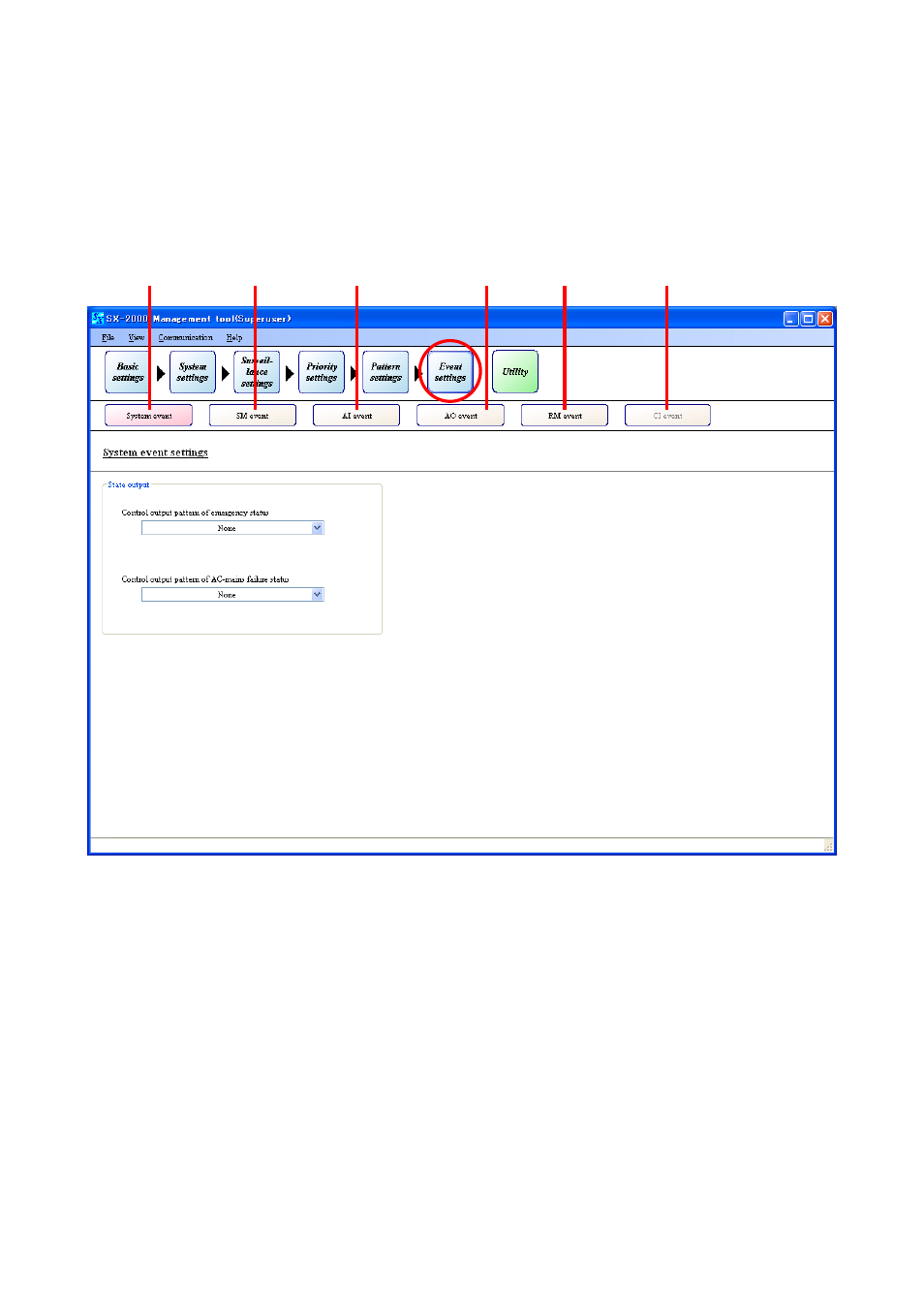

Pressing the [Event settings] button displays the screen below.
Set System event, and assign functions to the Control input terminals of the SM, AI, AO, and CI, Function
keys of the AI, AO, and RM, and Channel keys of the AI and AO.
Note
"SM" represents SX-2000SM, "AI" SX-2000AI and SX-2100AI, "AO" SX-2000AO and SX-2100AO, "CI" SX-
2000CI, and "RM" RM-200SF, RM-200S, RM-200SA, and RM-210.
Pressing each button (1 – 6) displays the corresponding setting screen.
(1) System event button
Set control output patterns when the system is in
emergency and power failure modes.
(Refer to
p. 100 .)
(2) SM event button
Set functions to be assigned to the SX-2000SM's
control input terminals. (Refer to
p. 101 .)
(3) AI event button
Set functions to be assigned to the control input
terminals (SX-2100AI only), and Function and
Channel keys of the SX-2000AI and SX-2100AI.
(Refer to
p. 105 .)
(4) AO event button
Set functions to be assigned to the control input
terminals, and Function and Channel keys of the
SX-2000AO and SX-2100AO. (Refer to
p. 109 .)
(5) RM event button
Set functions to be assigned to the keys of the
RM-200SF, RM-200S, RM-200SA, and RM-210.
(Refer to
p. 112 .)
(6) CI event button
Set functions to be assigned to the SX-2000CI's
control input terminals. (Refer to
p. 119 .)
(1) (2) (3) (4) (5) (6)
