System Status Display Confirmation (AO unit screen)
9. Amplifier failure status
Note
Use this screen to confirm the amplifier status when the SX-2100AO is connected to the VP Series
amplifiers.
Displays the power amplifier failure status.

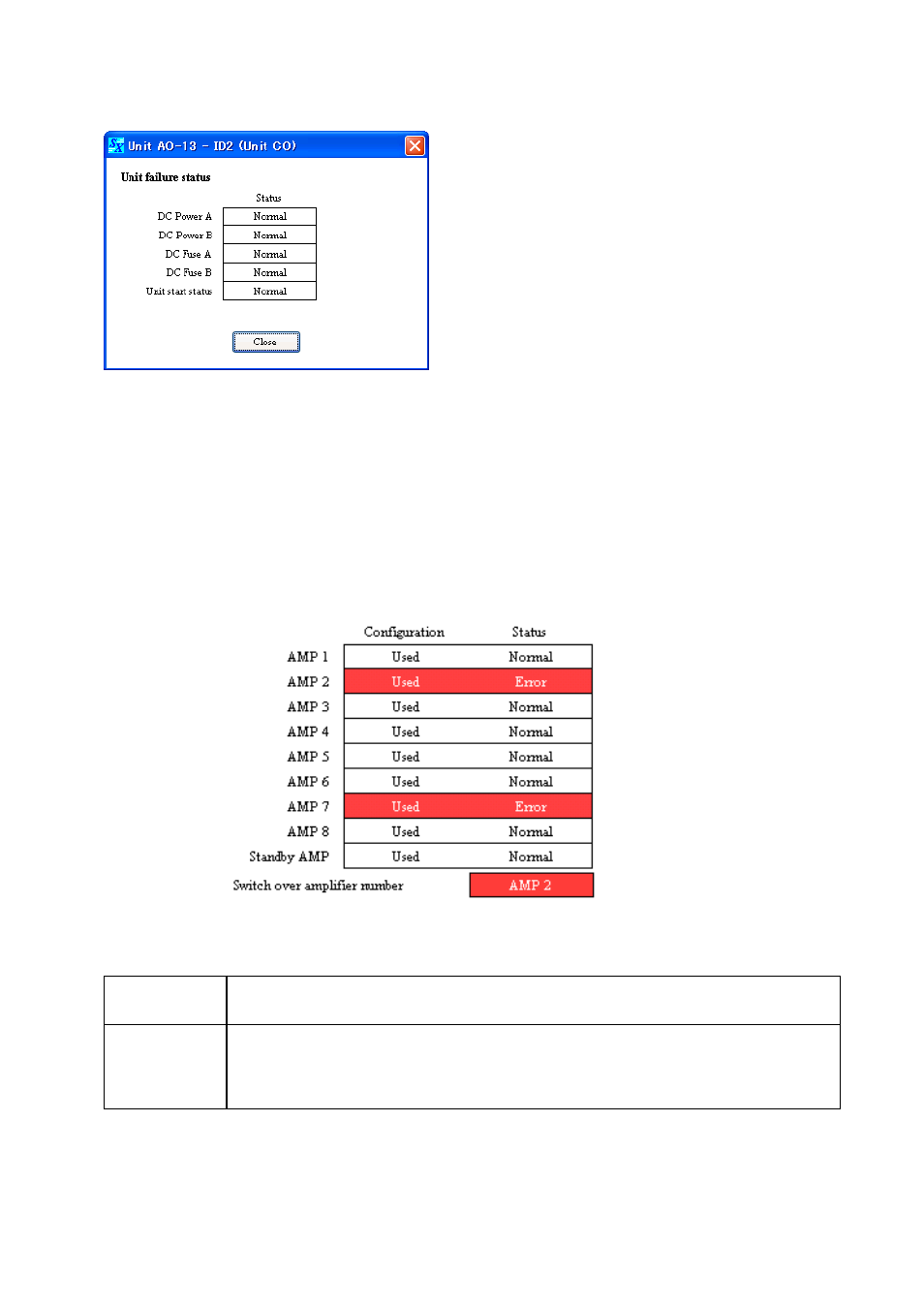

8. CO failure status detail button
Clicking this button displays the CO failure status detail screen.
Displays the DC power supply and fuse failure statuses.
The "Normal" indication is displayed for normal conditions, the "Error" indication when irregularities are
detected, and the " – " indication when the failure check function is not in operation.
Clicking the [Close] button closes the CO failure status detail screen.
Configuration Displays the "Used" indication when the failure check function is in operation and the
"Unused" indication when the function is not in operation.
Status Displays failure status.
The "Normal" indication is displayed for normal conditions, the "Error" indication when
irregularities are detected, and the " – " indication when the failure check function is
not in operation.
