142
UTILITY
System Status Display Confirmation (AO unit screen)
• Version
Displays the SX-2000AO or SX-2100AO firmware version.

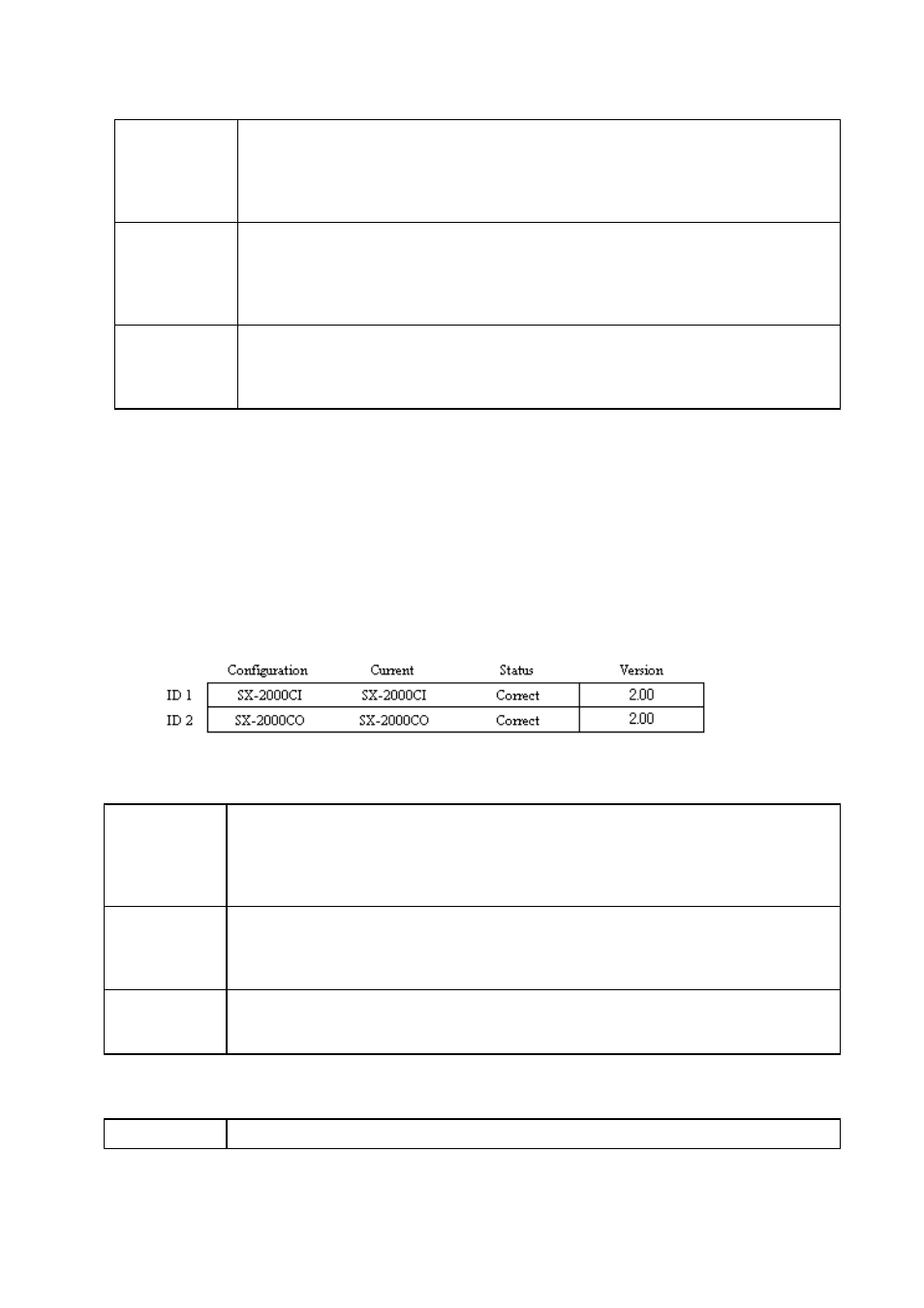

2. CI/CO configuration
Displays SX-2000CI or SX-2000CO status.
Note: The CI/CO configuration indication is displayed in red if errors are shown in "Current" or "Status."
• Type
Displays SX-2000AO or SX-2100AO status.
Note: The Type indication is displayed in red if errors are shown in "Current" or "Status."
Configuration Displays unit setting information.
• SX-2000AO: The SX-2000AO is set.
• SX-2100AO: The SX-2100AO is set.
• Unknown:
Unit settings are unknown.
• – : The SX-2000AO or SX-2100AO is not physically connected.
Current Displays connected units.
• SX-2000AO: The SX-2000AO is physically connected.
• SX-2100AO: The SX-2100AO is physically connected.
• Unknown:
The model type of the actually connected unit is unrecognizable.
• – : The SX-2000AO or SX-2100AO is not physically connected.
Status Displays the comparison results of preprogrammed and actually connected units.
• Correct:
"Configuration" matches "Current."
• Different: "Configuration" does not match "Current."
• – :
The SX-2000AO or SX-2100AO is not physically connected.
Configuration Displays the type of the SX-2000CI or SX-2000CO unit that has been set for
connection.
• None:
No connection settings.
• SX-2000CI: The SX-2000CI is set.
• SX-2000CO: The SX-2000CO is set.
Current Displays the type of actually connected SX-2000CI or SX-2000CO unit.
• None:
No units actually connected.
• SX-2000CI: The SX-2000CI is physically connected.
• SX-2000CO: The SX-2000CO is physically connected.
Status Displays the comparison results of preprogrammed and actually connected units.
• Correct: "Configuration" matches "Current."
• Different: "Configuration" does not match "Current."
Version Displays the SX-2000CI or SX-2000CO software version.
