UTILITY
Audio Input and Output Status Confirmation

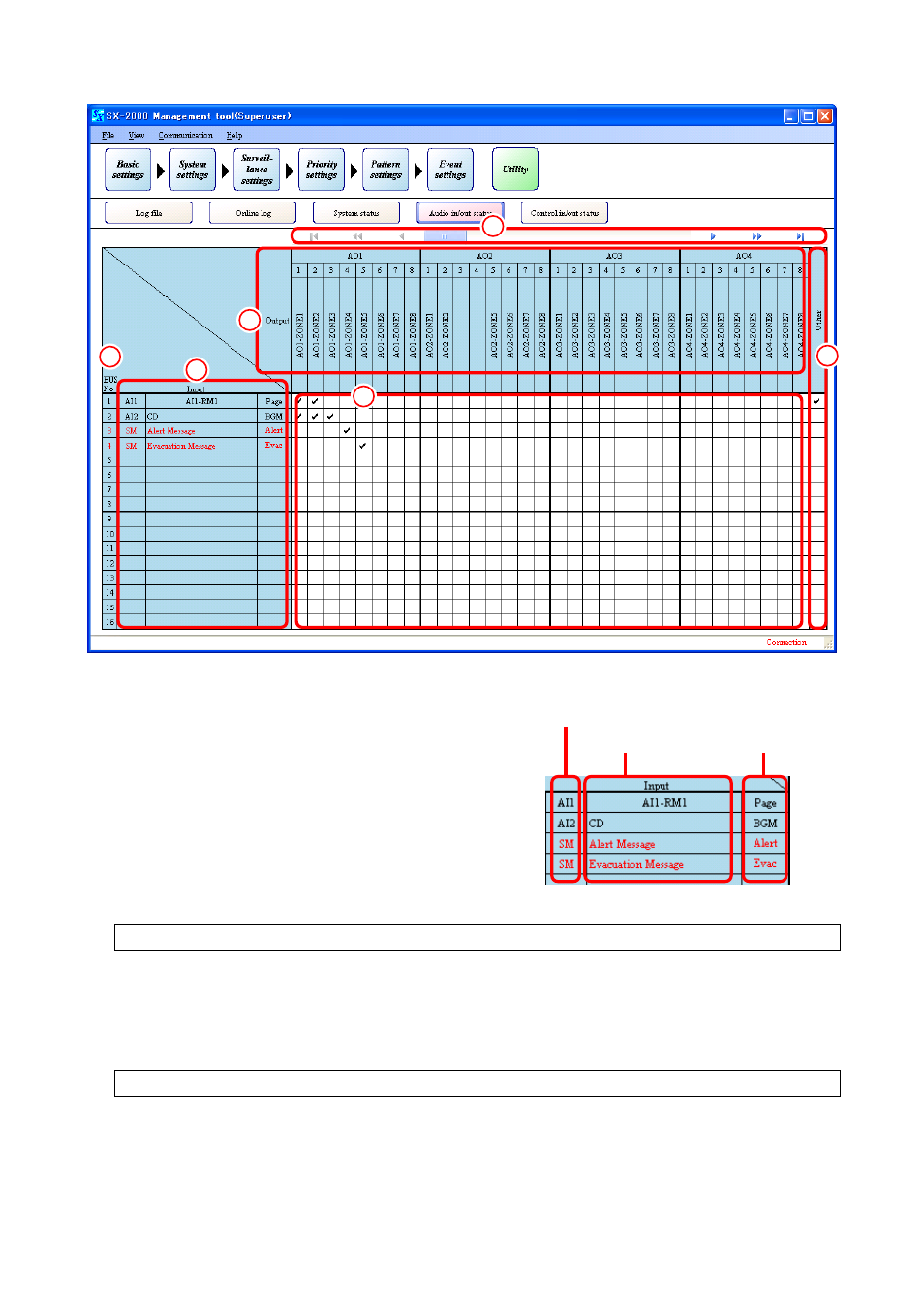

13.4.1. Audio input/output status display screen
1
2
3
4
5
6
1. BUS No.
Displays the audio bus numbers (1 – 16).
2. Input
Displays information on audio entered for the bus number.
The field remains blank when no signals are detected on
the bus.
Red character display indicates latest updated data.
• Unit type and number
Displays the type and number of the audio unit that has been input.
• Audio name
Displays name of audio being input.
• Audio type
Displays the type of audio that has been input.
Unit type and number
Audio type Audio name
SM (SX-2000SM), AI1 – AI8 (SX-2000AI's or SX-2100AI's unit numbers 1 – 8)
Page (General), BGM, EmgRM (Emergency RM), Alert, Evac (Evacuation), Reset
· Page (General): Broadcast of sound source type set for "General"
· BGM: Broadcast of sound source type set for "BGM"
· EmgRM (Emergency RM): Emergency microphone announcement from the remote microphone of
sound source type set for "Emergency/General"
· Alert: EV message broadcast of sound source type set for "Alert"
· Evac (Evacuation): EV message broadcast of sound source type set for "Evacuation"
· Reset: EV message broadcast of sound source type set for "Reset"
