Toa SX-2000 Series - Manual (Page 173)

173
PRINTING SETTINGS DATA
17. PRINTING SETTINGS DATA
Settings data can be output as data file in CSV format, which then can be printed.

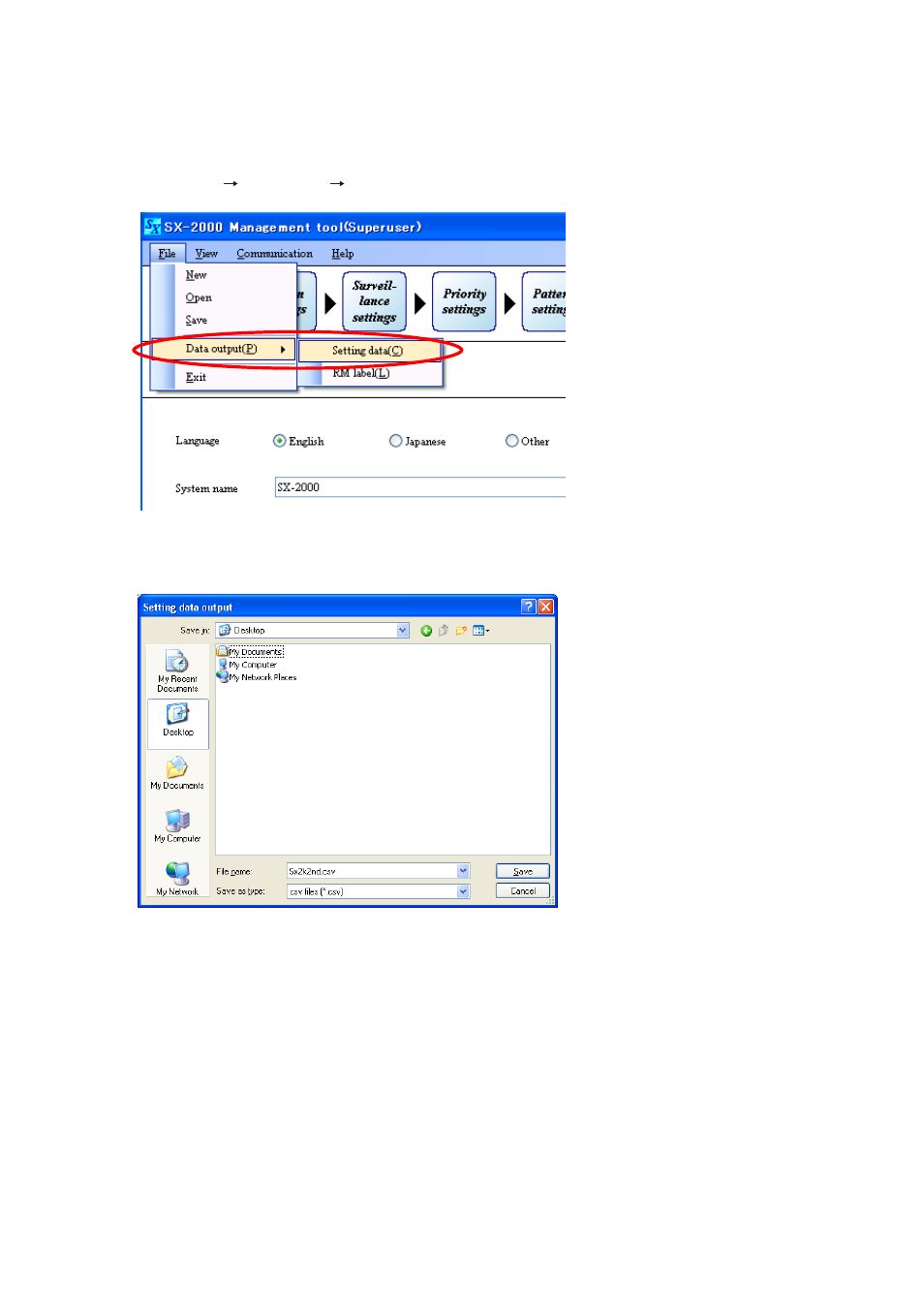

Step 1. Select [File Data output Settings data] from the menu bar on the Setting Software.
A "Setting data output" dialog is displayed.
Step 2. Using the "Save in" pull-down menu, select the folder where the settings file to be printed is saved.
Step 3. Set a "File name."
Note
The filename "Sx2k2nd.csv" is set by default.
When changing the filename, be sure to add a filename extension (csv).
Example: 0605setting_file.csv
