7

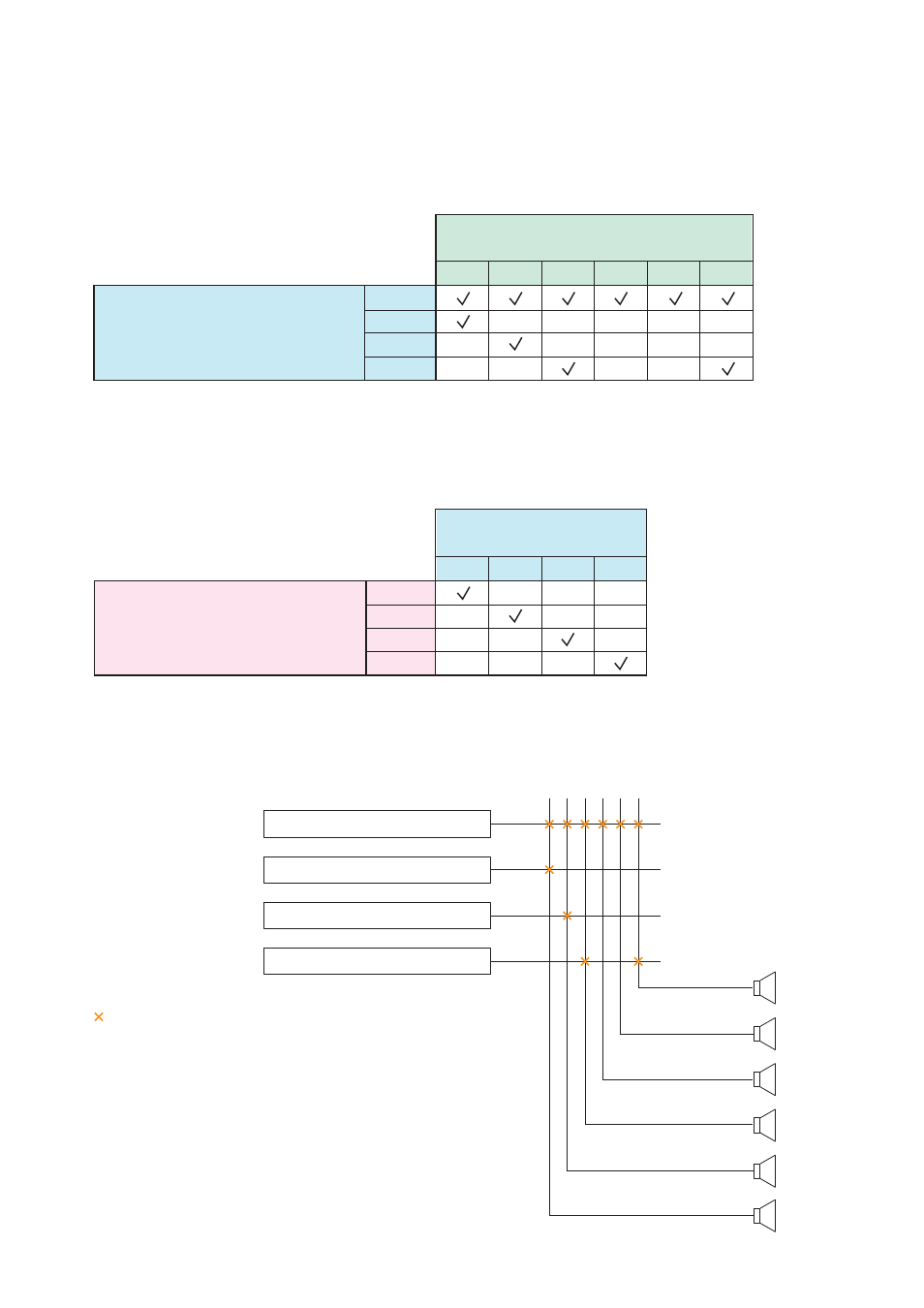

[General-purpose broadcast Pattern Setting Example]
In the example below, the table shows a pattern comprised of several general-purpose broadcast sound
sources and broadcast zones.
An output zone pattern is the one into which multiple broadcast zones are grouped, so broadcast can be
made to multiple zones simultaneously by activating only one pattern.
1
2
3
4
1 2 3 4 5 6
• Output zone pattern setting
Output zone pattern (No.)
Zones
SX-2000AO's output channels
The input channels of the SX-2100AI (Audio Input Unit) are designated as sound sources for general-purpose
broadcasts or BGM, while the output channels (individual) or output zone patterns of the SX-2000AO (Audio
Output Unit) are designated as zones.
Input Sources
SX-2100AI’s Input Channels (CH)
Zones
Output Zone Pattern
CH1
CH2
CH3
CH4
1 2 3 4
• General-purpose broadcast pattern setting
Broadcasts are made as follows when the above general-purpose broadcast pattern is used.
SX-2100AI's CH1 sound source
Zone 1
shows the connection status between input (sound source) and
output channel (zone).
When multiple output zone patterns are activated simultaneously,
the broadcast is made based on the output zone pattern to which
the sound source with higher priority level is assigned.
Output zone pattern
1
2
3
4
Output channel
1 2 3 5 4 6
SX-2100AI's CH2 sound source
Zone 2
SX-2100AI's CH3 sound source
Zone 3
SX-2100AI's CH4 sound source
Zone 4
Zone 5
Zone 6
