EVENT SETTINGS
Function Description
12.2.3. BGM pattern change/end
BGM pattern (control output pattern) broadcasts can be switched by control input*.

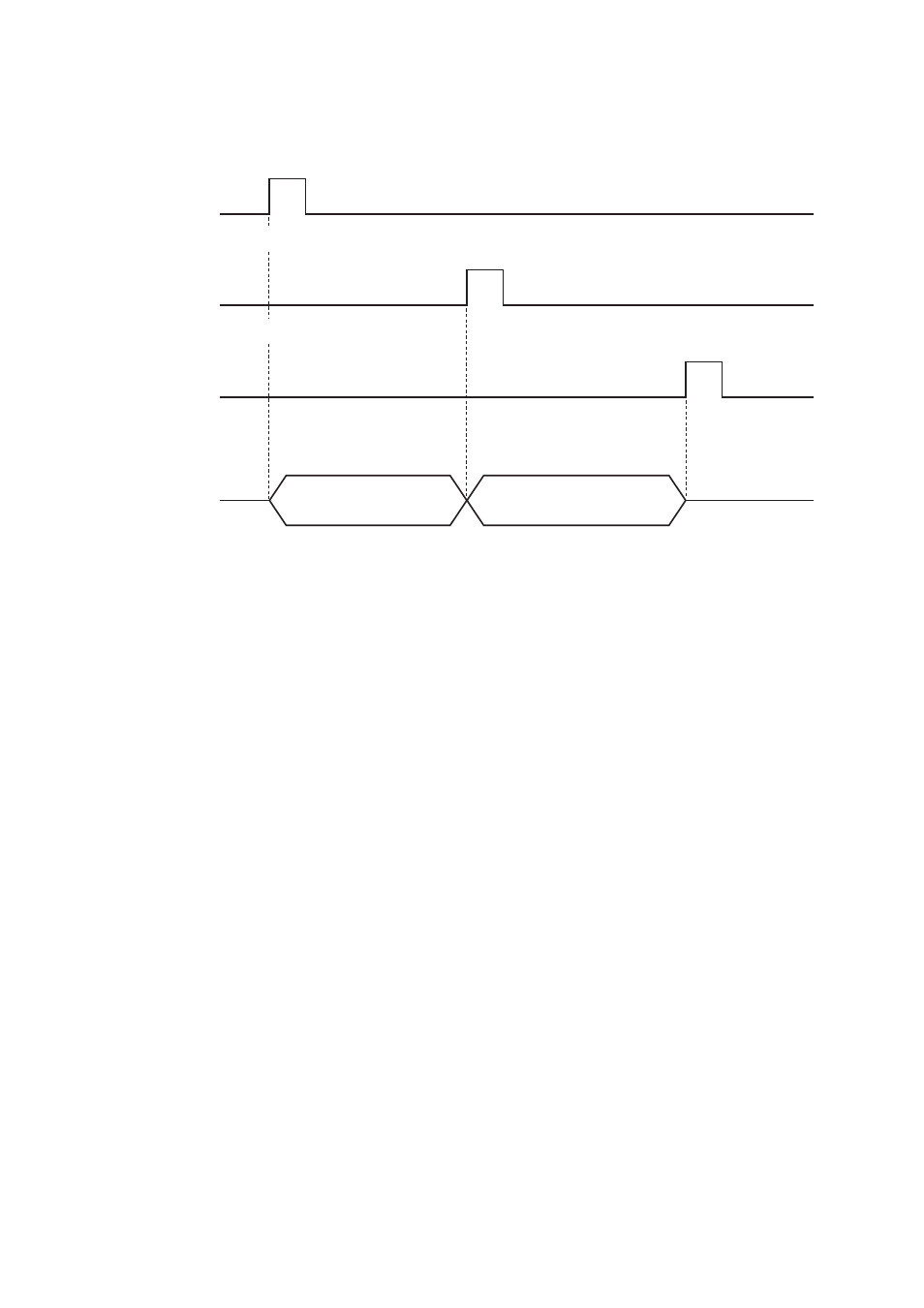

Operation of the BGM pattern and the control output pattern in the above example is as follows:
• Example of BGM pattern operation
BGM pattern 1 activated by Control Input 1 is switched to BGM pattern 2 by Control Input 2.
• Example of control output operation
The state of the control output (control output assigned by Control Output Pattern 1) activated by Control
Input 1 is turned OFF by "Control output pattern: None" activated by Control Input 2.
* The timing chart also applies when BGM pattern broadcasts are changed by the function keys of the SX-
2000AI, SX-2100AI, SX-2000AO, or SX-2100AO, or the function keys of the RM-200SF, RM-200S, RM-
200SA, or RM-210.
BGM pattern: 1
Control output pattern: 1 BGM pattern: 2
Control output pattern: None
BGM pattern end
ON
ON
ON
Contorl Input 1
(BGM pattern:1, control output pattern: 1)
Contorl Input 2
(BGM pattern: 2, control output pattern: None)
Contorl Input 3
(BGM pattern: End)
