14

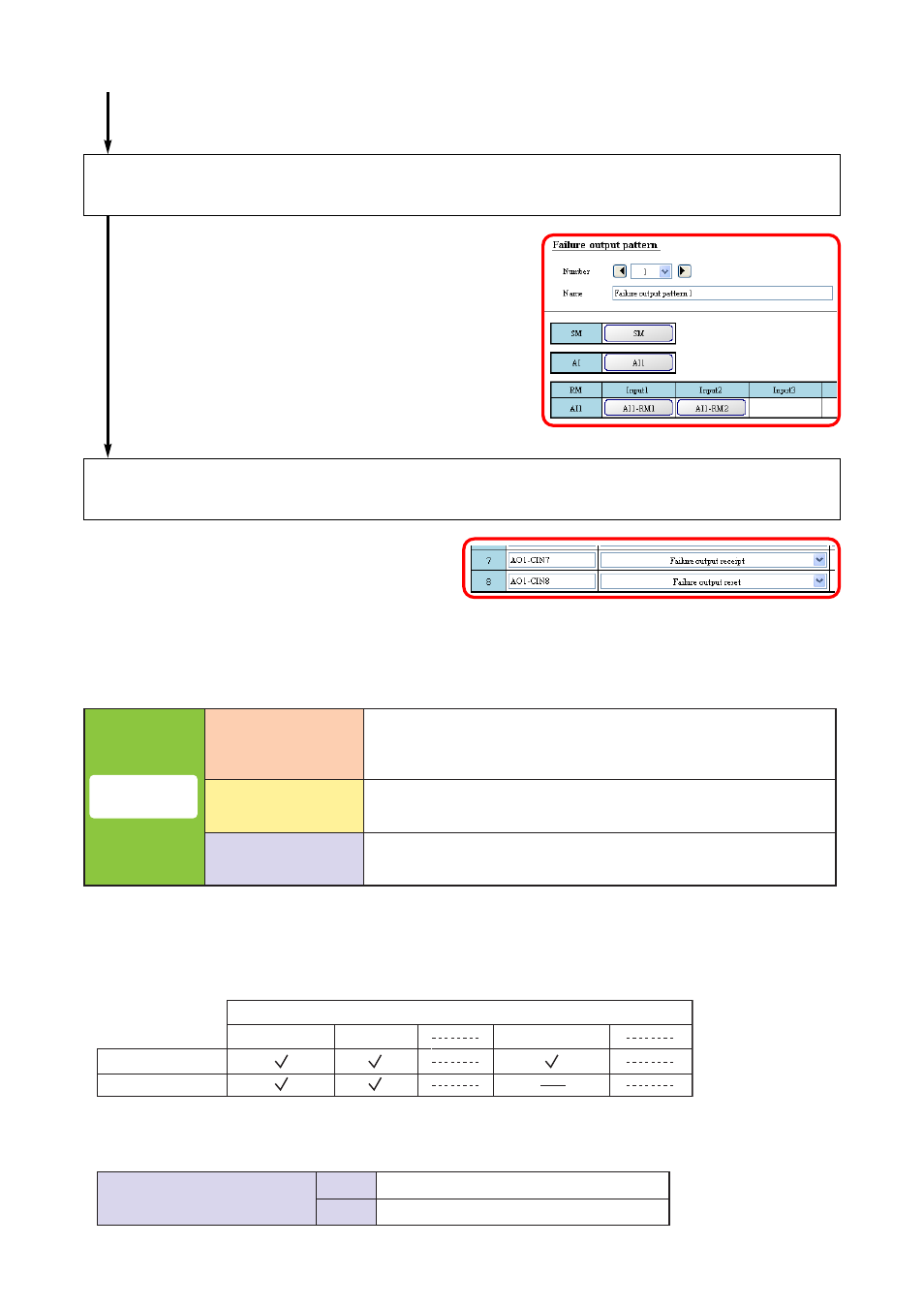

Select the surveillance target devices or the surveillance points in the SX-2000
system.
Perform this in the "Failure output pattern settings."
Assign the Failure acknowledgement and Failure Status Reset functions to the
control inputs of the device or the keys on the remote microphone.
Perform this in the "Event settings."
From the previous page
[Failure output pattern configuration]
Surveillance target
External failure input
Failure state output
Failure output
pattern
Each device, each surveillance point (Set the surveillance points
of each device in the SX-2000 system in the Surveillance settings
individually.)
Control input terminal
(Control input set to "External failure input" in the Event settings.)
Control output pattern
(Multiple control outputs)
[Example of assigning the Surveillance function to the remote microphone]
• Control output pattern settings
3
4
SX-2000SM's control outputs 3 and 4
SX-2100AI's control outputs 3 and 4
Control output pattern (No.)
SX-2000SM
SX-2100AI (1)
Surveillance point
Control input 1 Power supply SX link
• Surveillance individual settings
