PATTERN SETTINGS
Control Output Pattern Settings
11.4. Control Output Pattern Settings

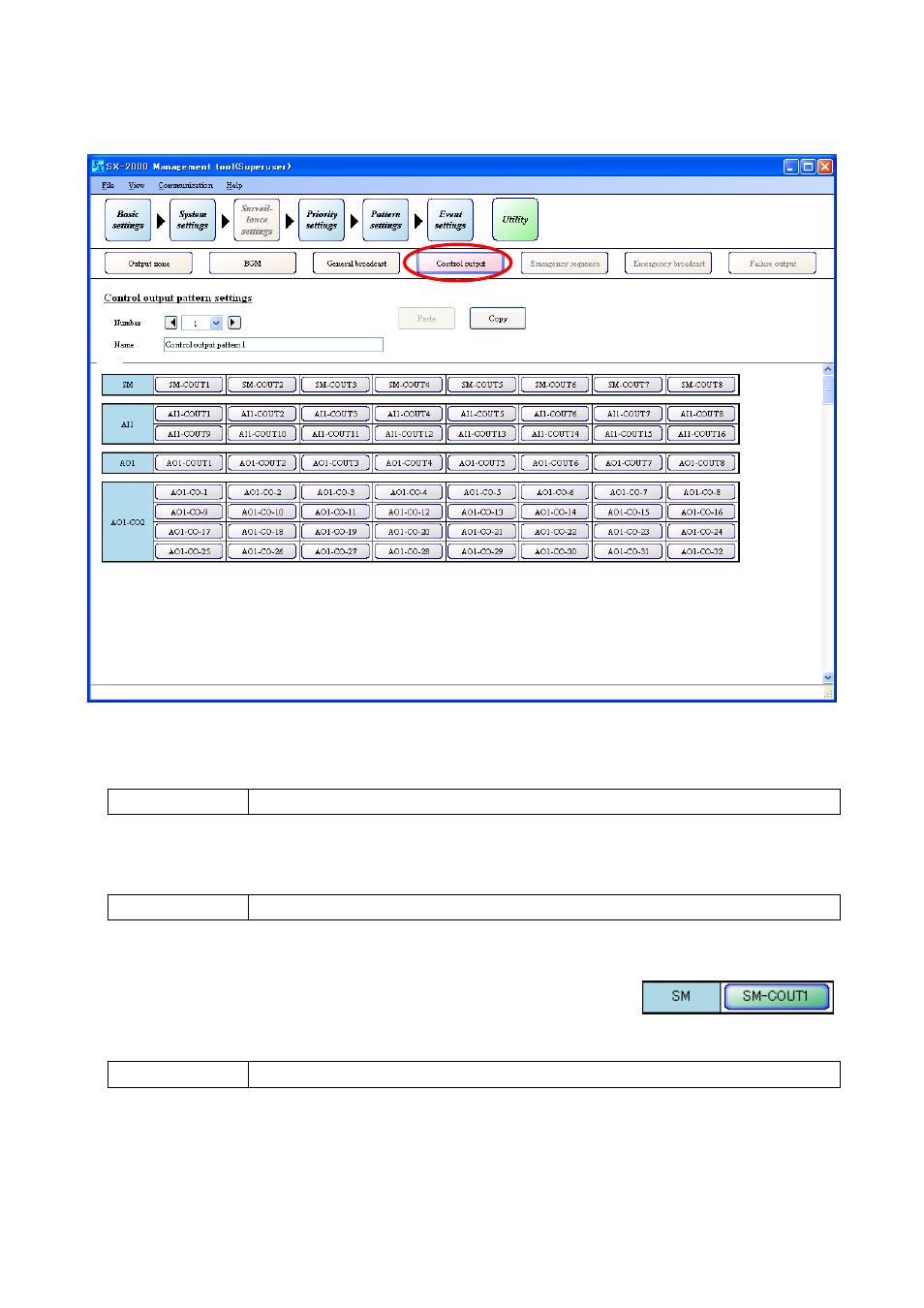

Clicking the [Control output] button on the pattern settings screen allows Control output patterns to be set.
(1)
(2)
(3)
(1) Number
Click on the box or press the arrow button to select the control output pattern number.
1 to 256 (default: 1) Available Settings
(2) Name
Enter the name of the control output pattern.
(3) Control output ON/OFF buttons
Select the control output terminals to perform control.
Tip
For quick selection of multiple cells, refer to
p. 75 "Selecting multiple
cells."
Colored (selected), Colorless (not selected, default) Available Settings
(4)
(4) Copy and Paste buttons
Pressing the [Copy] button copies all of the on-screen settings except the name preset by default.
Pressing the [Paste] button pastes the copied parameters in the same setting screen of other control
output pattern selected by Number (1).
Up to 32 alphanumeric characters. (default: Control output pattern 1 – 256) Available Settings
[When selected]
