7.1.2. When the PC is set for multiple networks

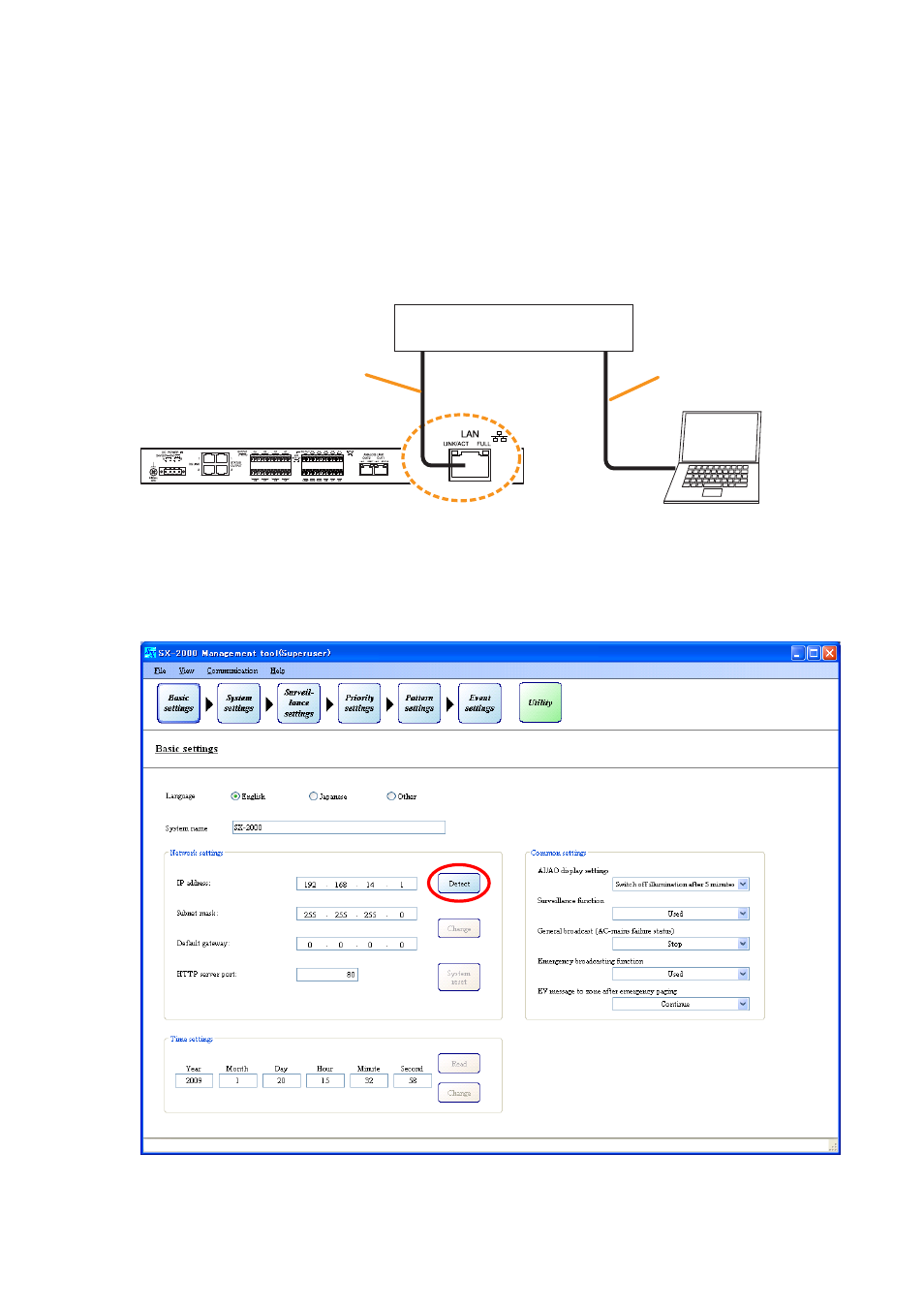

Step 1. Connect the SX-2000SM and the PC installed with the SX-2000 software to the switching hub.
Connect the SX-2000SM's LAN connection terminal to a 10BASE-T- or 100BASE-TX-compatible
switching hub.
Use STP Category 5 Standard straight LAN cable fitted with RJ45 connectors.
Notes
• Do not connect the switching hub to the LAN.
• Avoid directly connecting the SX-2000SM to the PC via a cross cable.
SX-2000SM
Switching hub
LAN connection terminal
Straight cable
Straight cable
PC installed with the SX-2000
software
Step 2. Click the [Detect] button.
33
BASIC SETTINGS
Detecting the SX-2000SM's Network Settings
