UTILITY
System Status Display Confirmation (AI unit screen)

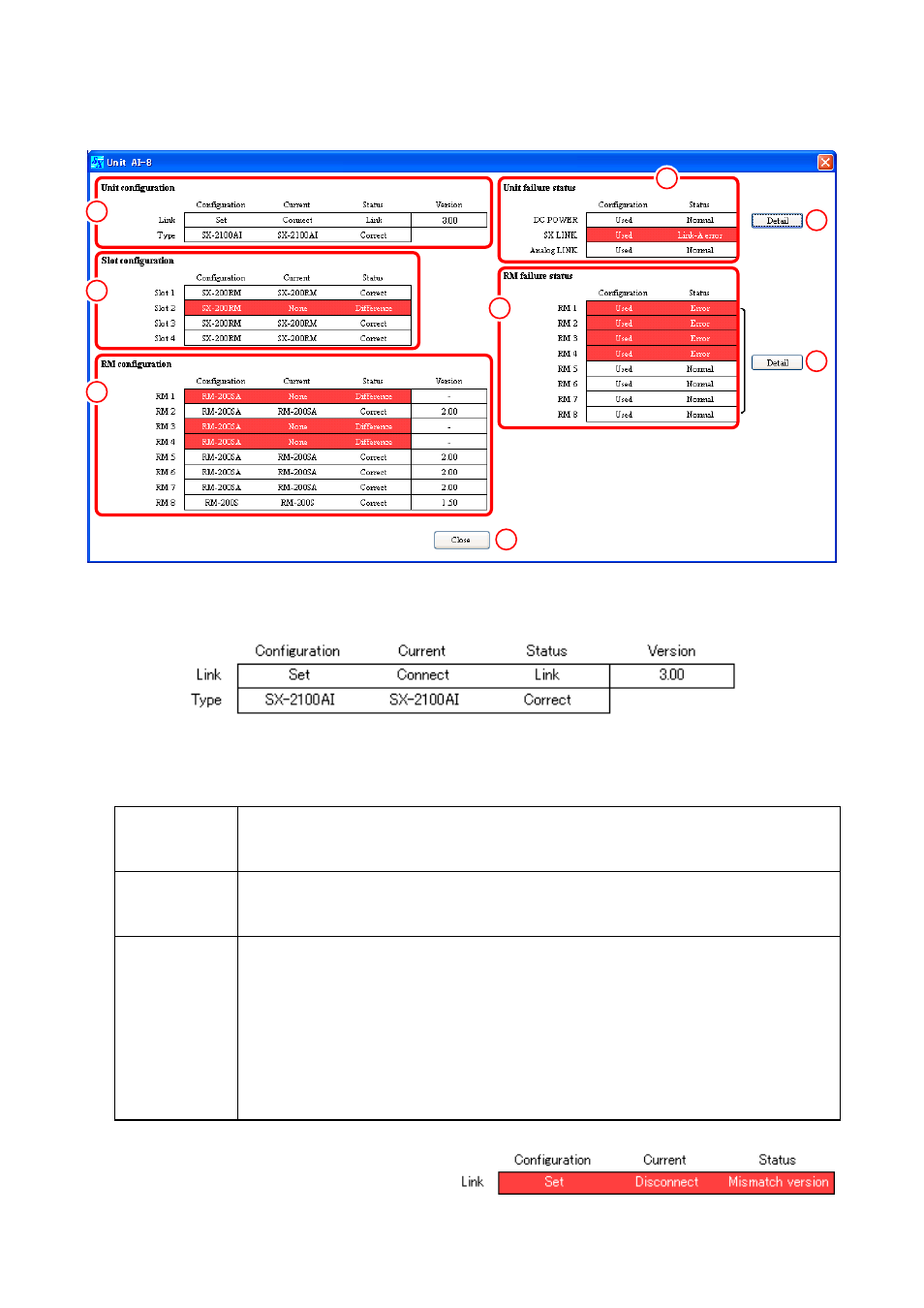

13.3.3. AI unit screen
Clicking the AI button on the system status display screen displays the AI unit screen.
1
2
3
5
7
4
6
8
1. Unit configuration
• Link
Displays the SX-2000AI or SX-2100AI system status.
Note
The Link indication is displayed in red if errors
are shown in "Current" or "Status."
Configuration Displays connection setting information.
• Set:
Connection settings performed.
• None: No connection settings performed.
Current Displays actual connection status.
• Connect:
The SX-2000AI or SX-2100AI is connected.
• Disconnect: The SX-2000AI or SX-2100AI is not connected.
Status: Displays whether the SX-2000AI or SX-2100AI can communicate with and system
control can be performed from the SX-2000SM.
• Link:
The SX-2000AI or SX-2100AI can communicate with the SX-
2000SM and system control can be performed from the SX-
2000SM.
• Unlink: SX-2000SM communications not available, since the SX-
2000AI or SX-2100AI is not connected or powered.
• Mismatch version: SX-2000AI or SX-2100AI and SX-2000SM versions
incompatible, disabling communications.
