UTILITY
System Status Display Confirmation (AI unit screen)
3. RM configuration

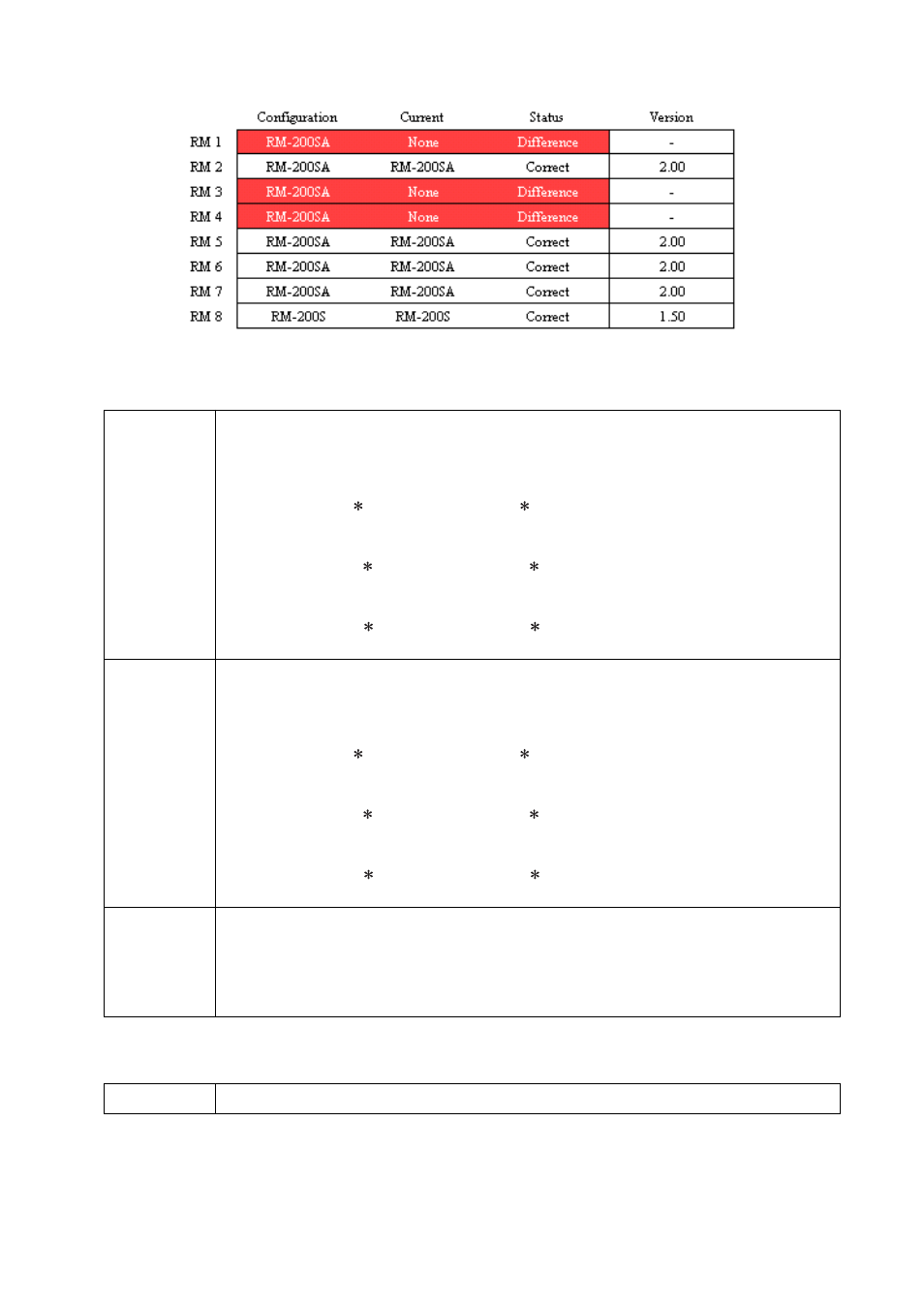

This function displays the status of each remote microphone.
Version Displays the remote microphone's firmware version.
Note: The RM configuration indication is displayed in red if errors are shown in "Current" or "Status."
Configuration Displays the type of remote microphone that has been set for connection, and the
number of expansion units.
• None:
No connection settings.
• RM-200S: The RM-200S is set.
• RM-200S + EXT : The RM-200S and pieces of expansion units are set.
(Up to 4 expansion units can be connected.)
• RM-200SF: The RM-200SF is set.
• RM-200SF + EXT : The RM-200SF and pieces of expansion units are set.
(Up to 5 expansion units can be connected.)
• RM-200SA: The RM-200SA is set.
• RM-200SA + EXT : The RM-200SA and pieces of expansion units are set.
(Up to 4 expansion units can be connected.)
Current Displays the type of actually connected remote microphone and the number of
expansion units.
• None:
No units connected.
• RM-200S: The RM-200S is connected.
• RM-200S + EXT : The RM-200S and pieces of expansion units are connected.
(Up to 4 expansion units can be connected.)
• RM-200SF: The RM-200SF is connected.
• RM-200SF + EXT : The RM-200SF and pieces of expansion units are connected.
(Up to 5 expansion units can be connected.)
• RM-200SA: The RM-200SA is connected.
• RM-200SA + EXT : The RM-200SA and pieces of expansion units are connected.
(Up to 4 expansion units can be connected.)
Status Displays the comparison result of preprogrammed connection settings and actual
connection status.
• Correct:
"Configuration" matches "Current."
• Error: Remote microphone has failed.
• Different: "Configuration" does not match "Current."
