146
UTILITY
System Status Display Confirmation (AO unit screen)
10. Amplifier failure status detail button
Note
Use this button to confirm the amplifier failure status when the SX-2100AO is connected to the VP Series
amplifiers.

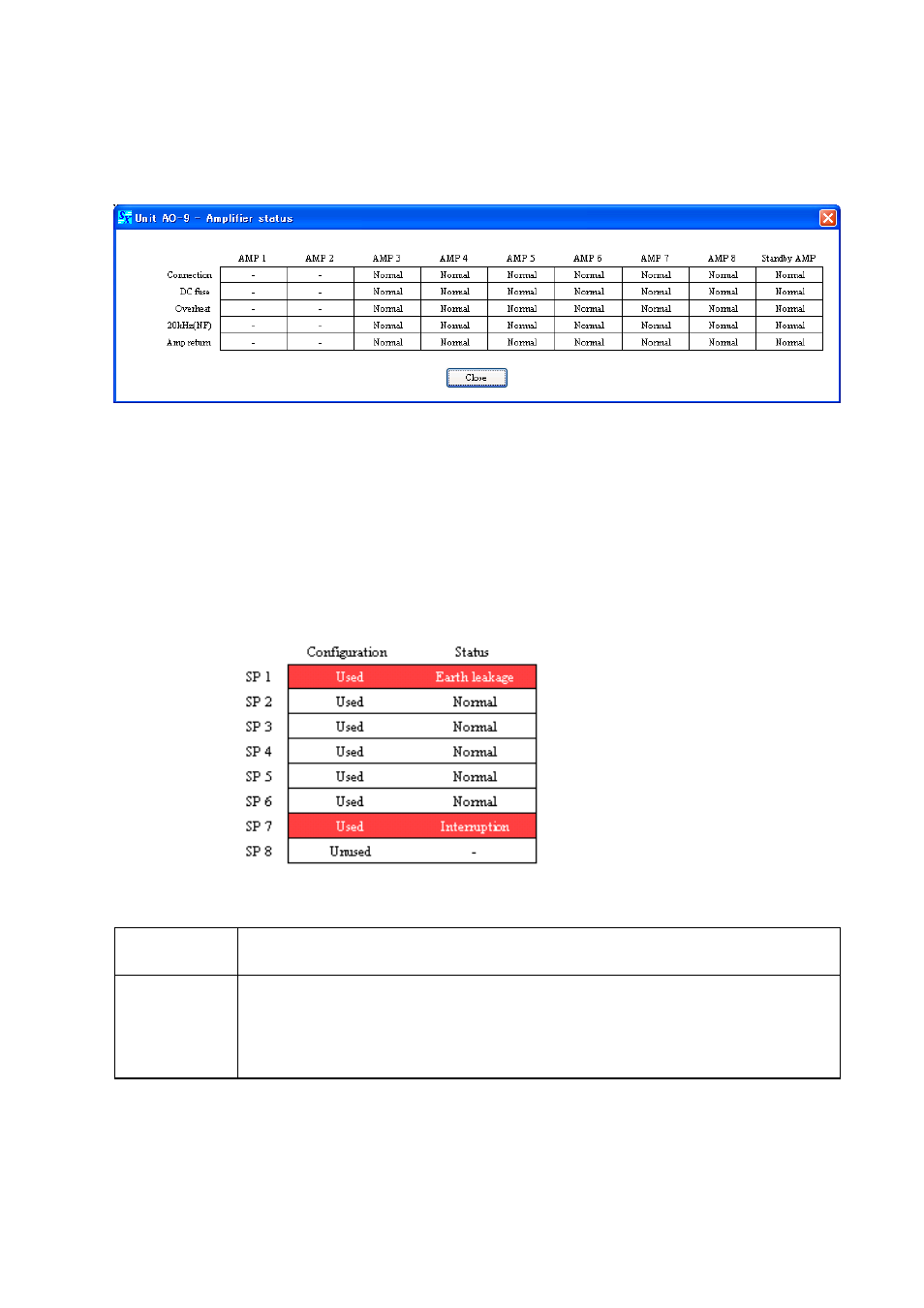

Clicking this button displays the amplifier failure status detail screen.
Displays the amplifier connection, fuse and operating temperature statuses.
The "Normal" indication is displayed for normal conditions, the "Error" indication when irregularities are
detected, and the " – " indication when the failure check function is not in operation.
Clicking the [Close] button closes the amplifier failure status detail screen.
11. Load speaker line status
Note
Use this screen to confirm the speaker line status when the SX-2100AO is connected to the VP Series
amplifiers.
Displays the speaker failure status.
Configuration Displays the "Used" indication when the failure check function is in operation and the
"Unused" indication when the function is not in operation.
Status Displays the failure status.
Displays the "Normal" indication for normal conditions and the cause of failure when
irregularities are detected.
There are three causes of failure: "Interruption," "Short circuit," and "Earth leakage."
The " – " indication is displayed when the failure check function is not in operation.
12. Close button
Clicking this button closes the AO unit screen.
