12.2.2. General-purpose pattern broadcasts (Pulse)
When different control inputs turn ON, general-purpose pattern broadcasts activated by each control
input* are made simultaneously.
General-purpose patterns and control output patterns in the above example operate as follows:
• Example of general-purpose pattern operation
General-purpose pattern 1 activated when control input 1 is ON continues until control input 1 turns OFF.
General-purpose pattern 2 activated when control input 2 is ON continues until control input 2 turns OFF.
• Example of control output operation
Control output pattern 1 activated when control input 1 is ON continues until control input 1 turns OFF.
Control output pattern 2 activated when control input 2 is ON continues until control input 2 turns OFF.
The state of control outputs overlapping in control output patterns 1 and 2 continues during the period from
the time control input 1 turns ON until control input 2 turns OFF. (OR logic output)
* Settings can be performed only for the control input of the SX-2000SM, SX-2100AI, SX-2000AO, SX-2100AO
and SX-2000CI.

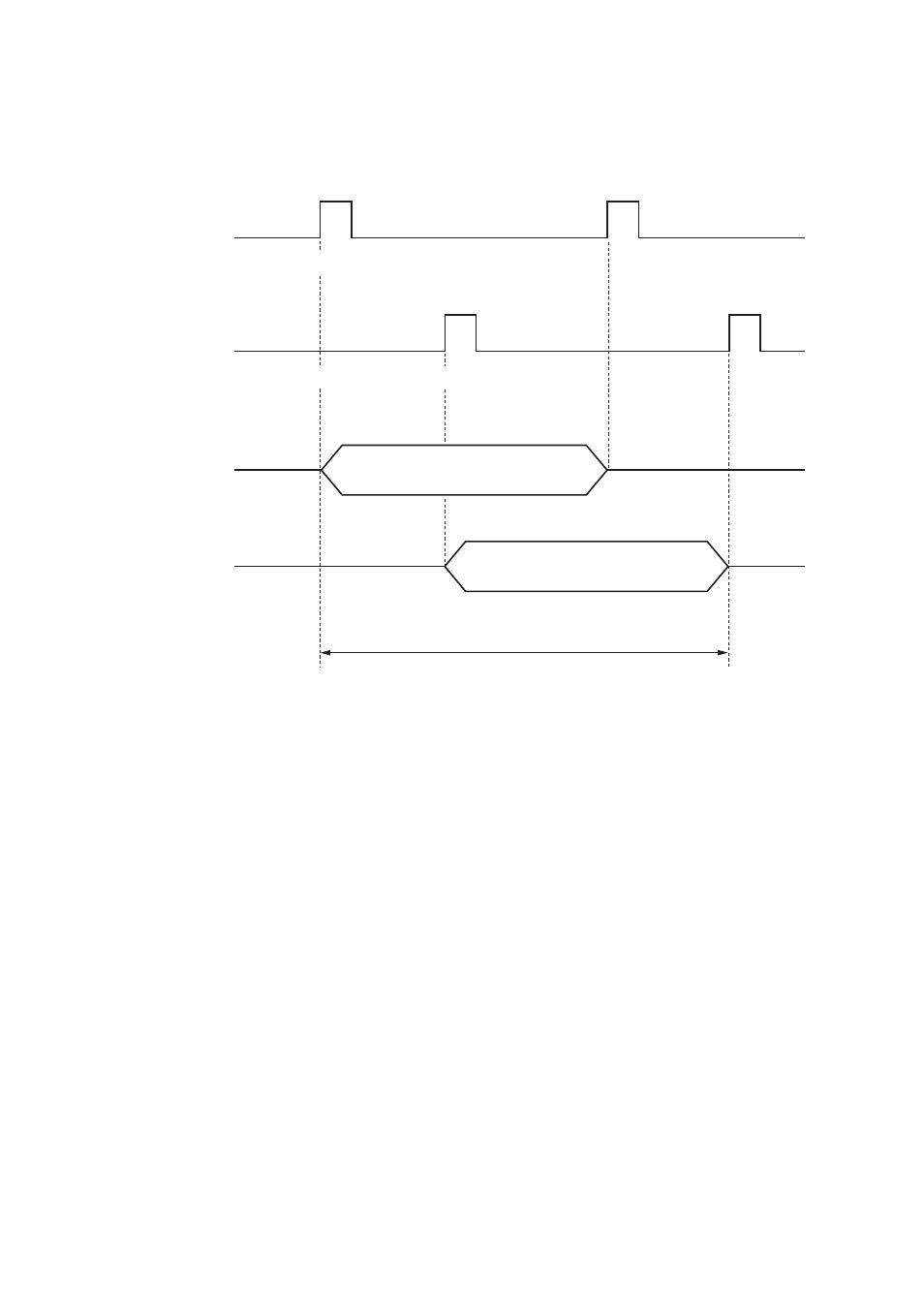

Broadcast of general-purpose pattern 1
Control output pattern 1: ON
Broadcast of general-purpose pattern 2
Control output pattern 2: ON
ON OFF
OFF ON
Control outputs overlapping in control output patterns 1 and 2
continue ON during this period.
Control input 1
(General-purpose pattern: 1, Control output pattern: 1)
Control input 2
(General-purpose pattern: 2, Control output pattern: 2)
