Toa SX-2000 Series - Manual (Page 119)

119
EVENT SETTINGS
CI Event Settings
12.8. CI Event Settings
Assign functions to the SX-2000CI's control inputs.

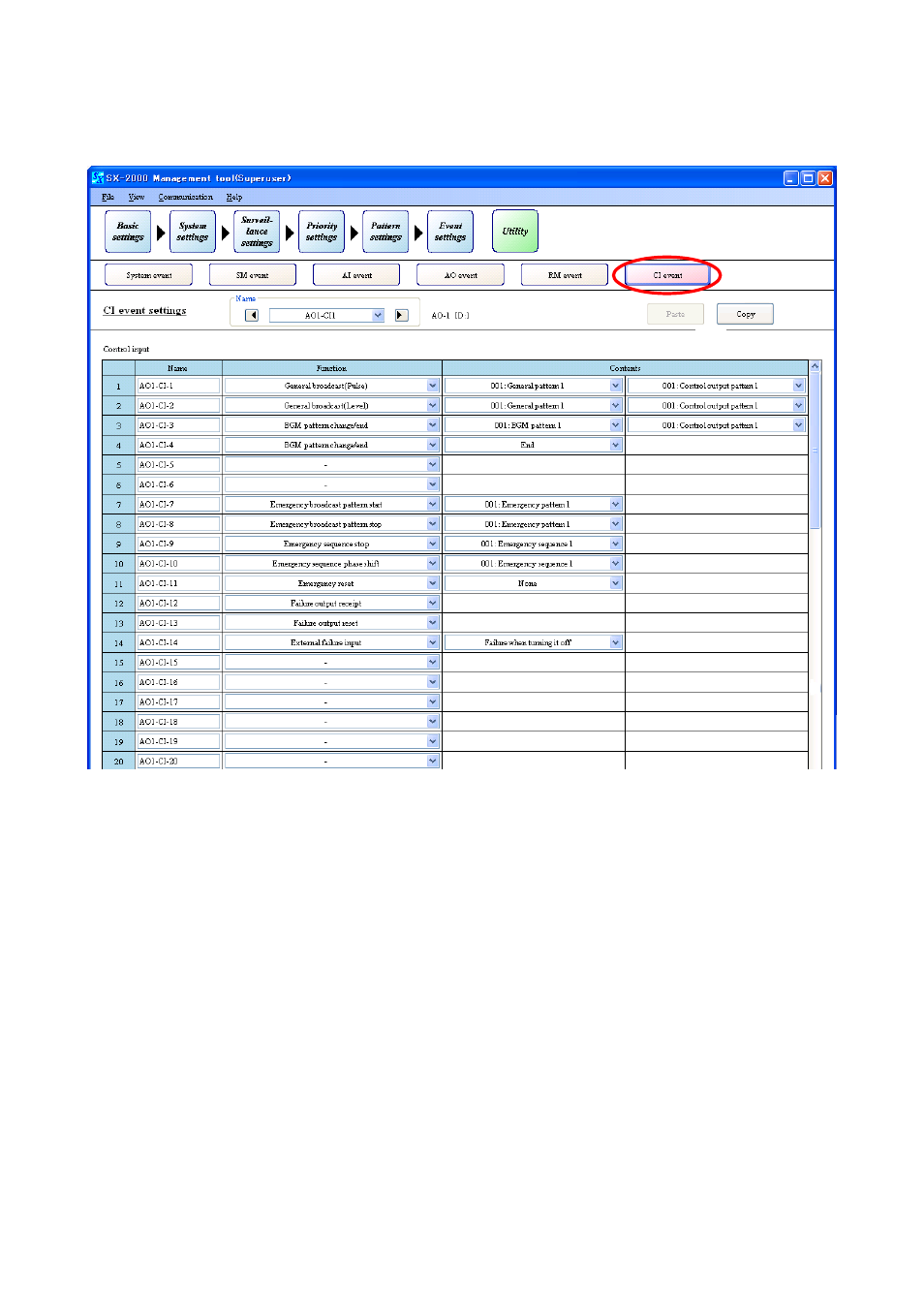

Clicking the [CI event] button on the Event Setting screen displays the CI event settings screen.
(1)
(3)
(1) Name
Click on the box or press the arrow button to selects the desired SX-2000CI's name.
(2) Control input
The setting procedures are the same as those described in SM Event settings (Function allocations to the
SX-2000SM's control inputs.).
But it is not possible to assign "Time adjustment" function to the control inputs.
(3) Copy and Paste buttons
Pressing the [Copy] button copies all of the on-screen settings except the names preset by default.
Pressing the [Paste] button pastes the copied parameters in the same setting screen of other SX-2000CI
selected by Name (1).
(2)
