7.1. Detecting the SX-2000SM's Network Settings

It is possible to acquire the SX-2000SM's network settings by connecting the SX-2000SM to a PC.

7.1.1. When a single SX-2000SM is connected to the switching hub

Step 1. Connect the SX-2000SM and the PC installed with the SX-2000 software to the switching hub.

Connect the SX-2000SM's LAN connection terminal to a 10BASE-T- or 100BASE-TX-compatible
switching hub.
Use STP Category 5 Standard straight LAN cable fitted with RJ45 connectors.

Notes
• Do not connect the switching hub to the LAN.
• Avoid directly connecting the SX-2000SM to the PC via a cross cable.

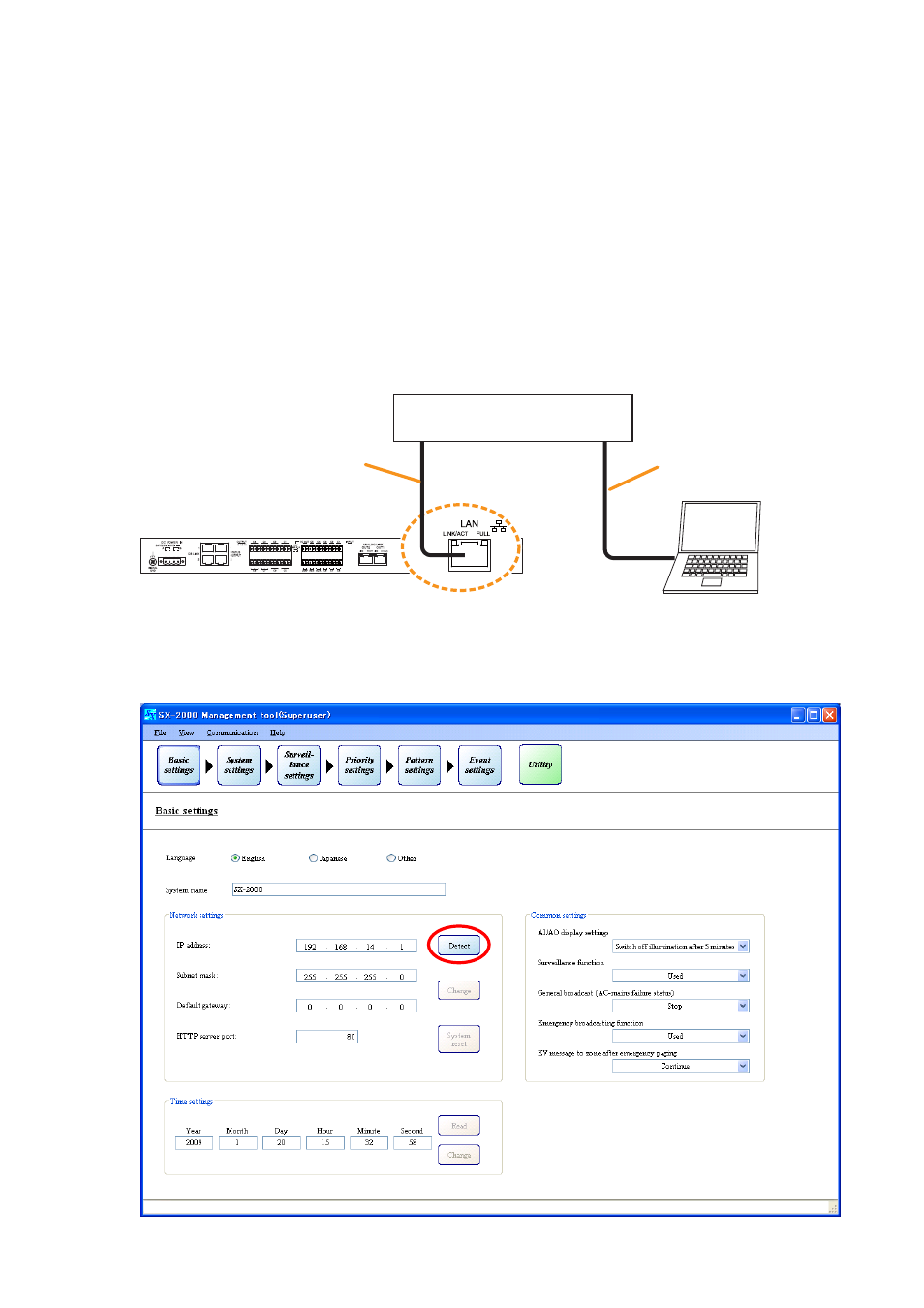

Step 2. Click the [Detect] button.

SX-2000SM

Switching hub

LAN connection terminal

Straight cable

PC installed with the SX-2000
software
