UTILITY
System Status Display Confirmation (AI unit screen)
• Version
Displays the SX-2000AI or SX-2100AI firmware version.

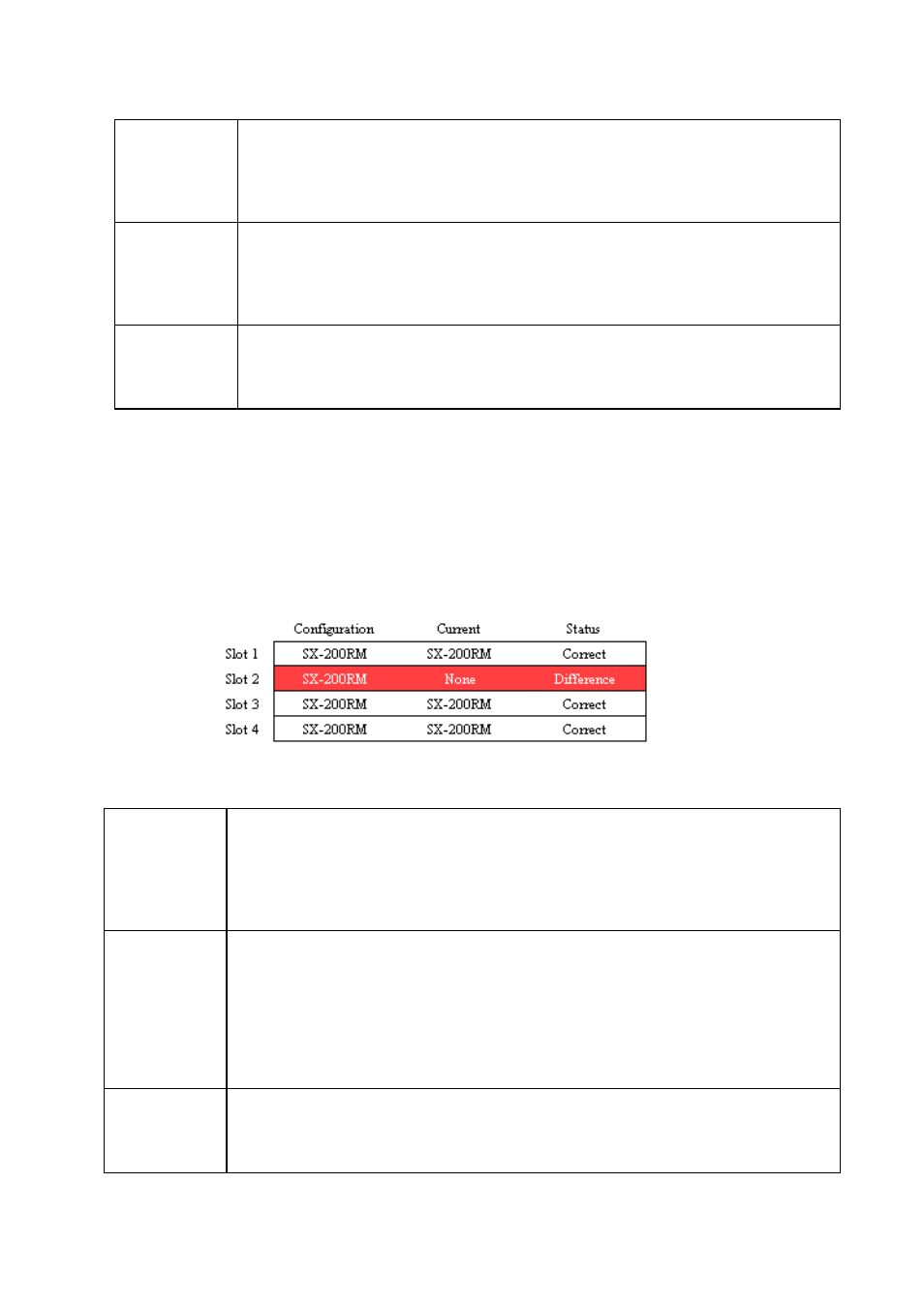

2. Slot configuration
This function displays the status of all input modules inserted in the unit's module slots.
Note: The Slot indication is displayed in red if errors are shown in "Current" or "Status."
• Type
Displays SX-2000AI or SX-2100AI status.
Note: The Type indication is displayed in red if errors are shown in "Current" or "Status."
Configuration Displays unit setting information.
• SX-2000AI: The SX-2000AI is set.
• SX-2100AI: The SX-2100AI is set.
• Unknown:
Unit settings are unknown.
• – : The SX-2000AI or SX-2100AI is not physically connected.
Current Displays connected units.
• SX-2000AI: The SX-2000AI is physically connected.
• SX-2100AI: The SX-2100AI is physically connected.
• Unknown:
The model type of the actually connected unit is unrecognizable.
• – : The SX-2000AI or SX-2100AI is not physically connected.
Status Displays the comparison results of preprogrammed and actually connected units.
• Correct:
"Configuration" matches "Current."
• Different: "Configuration" does not match "Current."
• – : The SX-2000AI or SX-2100AI is not physically connected.
Configuration Displays the names of set input modules.
• None: No modules set to be inserted.
• D-921F/E:
The D-921F or D-921E is set.
• D-922F/E: The D-922F or D-922E is set.
• D-936R: The D-936 is set.
• SX-200RM: The SX-200RM is set.
Current Displays the names of input modules actually inserted in slots.
• None:
No modules inserted.
• D-921F/E: The D-921F or D-921E is inserted.
• D-922F/E: The D-922F or D-922E is inserted.
• D-936R: The D-936R is inserted.
• D-971M/E: The D-971M or D-971E is inserted.
• D-971R:
The D-971R is inserted.
• SX-200RM: The SX-200RM is inserted.
Status Displays the comparison results of preprogrammed settings and actually inserted
modules.
• Correct: "Configuration" matches "Current."
• Different: "Configuration" does not match "Current."
