Chapter 7 Pitch Mode
82
7
● Normal mode
The maximum and minimum values of the measured pitch and the differentiation
result can be displayed/output at any time.

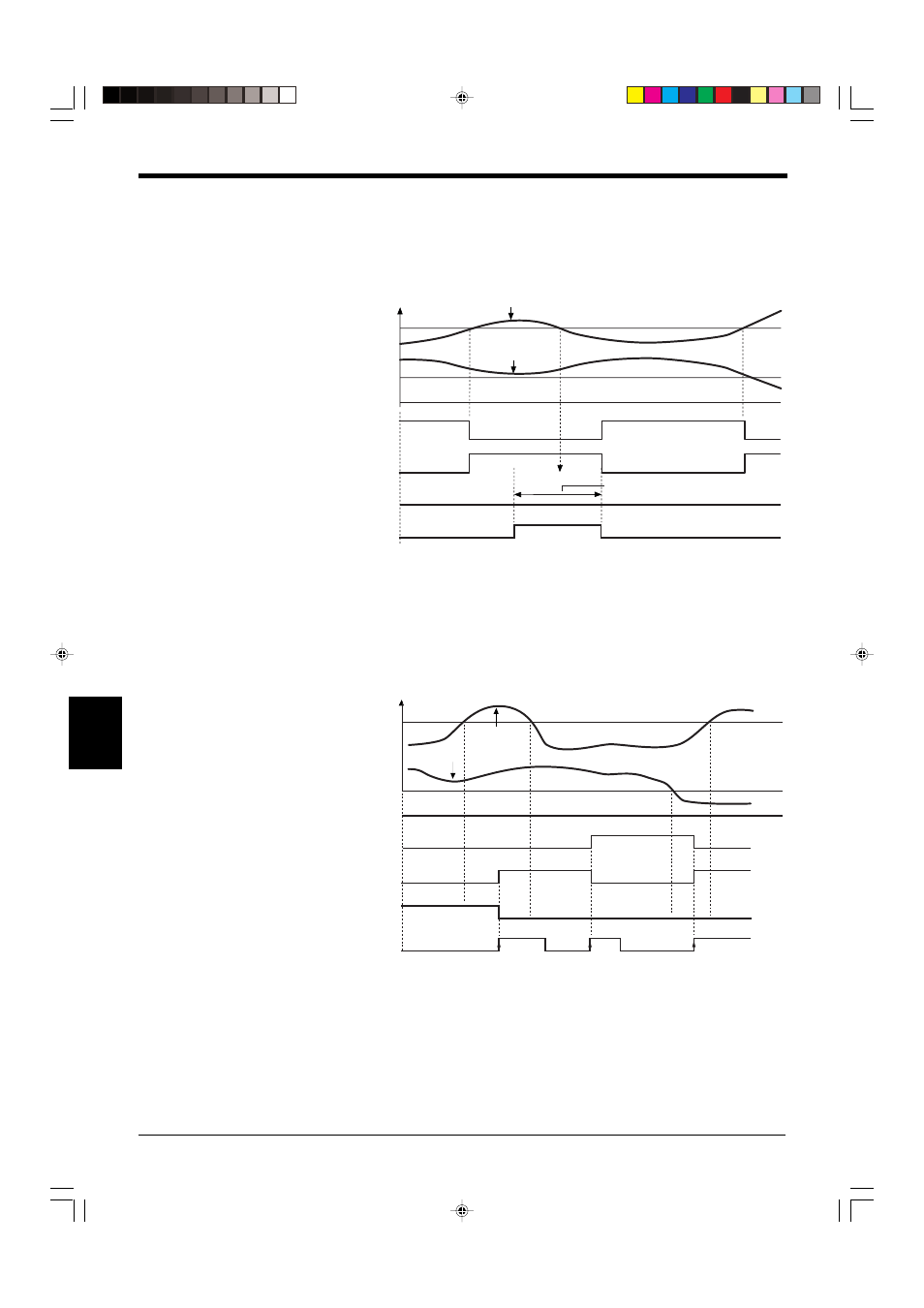

Timing Diagram
• The output when the synchronous input is turned ON is retained.
• When the reset input is turned ON while the synchronous input is ON, “—” is
displayed and the Err output is turned ON.
● Sample hold mode
The instantaneous value at a specified time can be measured.
Timing Diagram
• The value when the synchronous input is turned ON is retained.
• When the reset input is turned ON, “—” is displayed and the Err output is turned
ON.
OK OUT
ON
Upper limit
Max. Value
Min. value
Lower limit
OFF
NG OUT
Synchronous input retains the
output status until it turns off.
ON
OFF
Err
Synchronous
input
ON
OFF
ON
OFF
OK
ON
OFF
NG
ON
OFF
Err
ON
OFF
ON
OFF
Upper limit
Max. Value
Min. value
Lower limit
Synchronous
input
