Chapter 2 Before Using the LS-5000 Series
13
2
2.3
Part Names
This section describes the part names of each model.

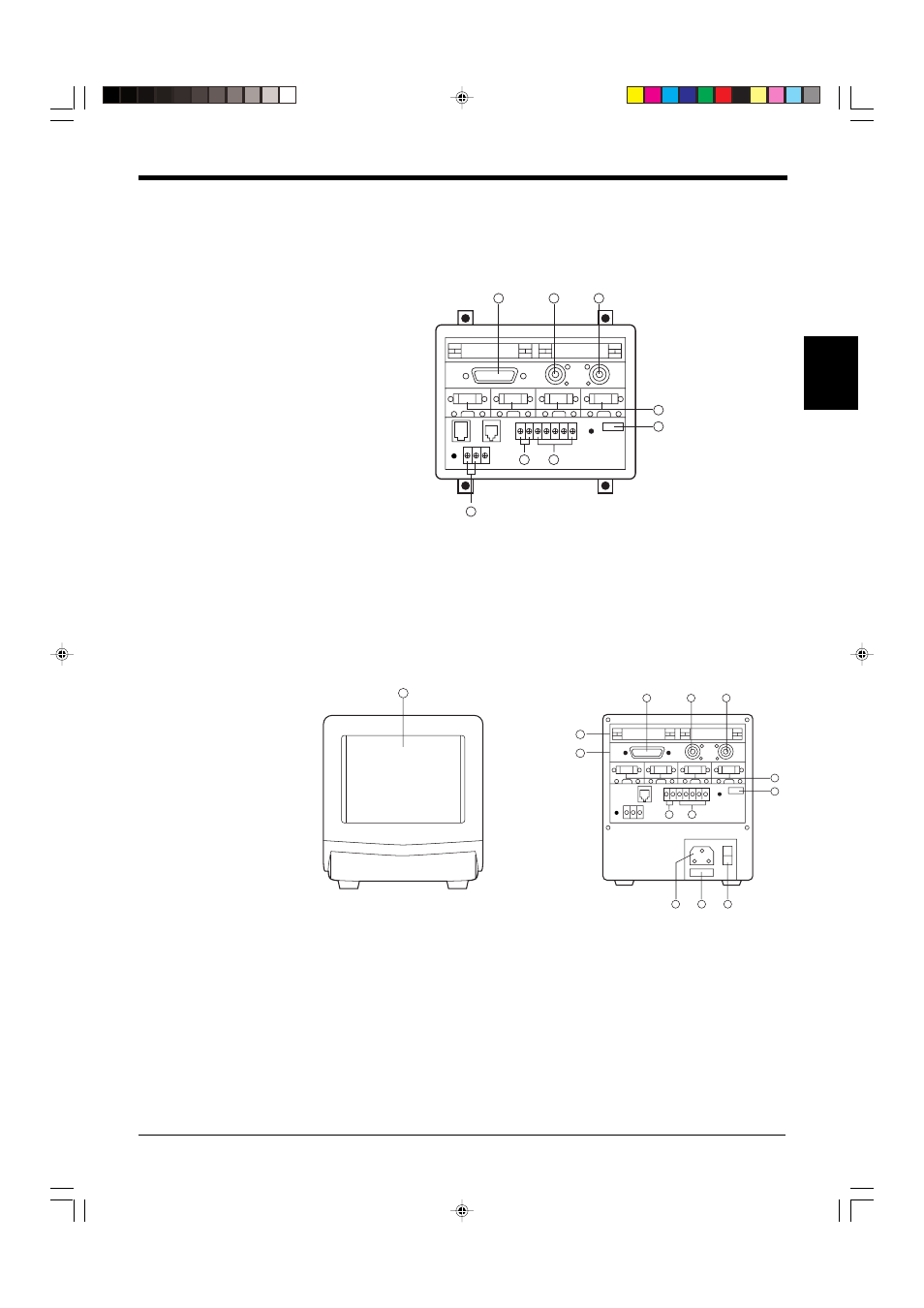

LS-5001 (Separate display type)
Front
1 I/O connector (LS-B11)
2 Analog output BNC connector (LS-B11)
3 Scanning head connecting port
4 DIP switch
5 Laser emission control input terminal
6 Program selection input terminal
7 Power supply terminal (24 VDC)
LS-5501 (Built-in display type)
Front
Rear
1 Measured value display and function setup/operating unit
2 I/O connector (LS-B11)
3 Analog output BNC connector (LS-B11)
4 Scanning head connecting port
5 DIP switch
6 Laser emission control input terminal
7 Program selection input terminal
8 Power supply switch
9 Power supply input
0 Fuse holder (250 V, 3.15 A)
A Expansion slot 1 for I/O board
B Expansion slot 2 for I/O board
