KEYENCE LS-5000 - Manual (Page 79)

Chapter 7 Pitch Mode
73
7

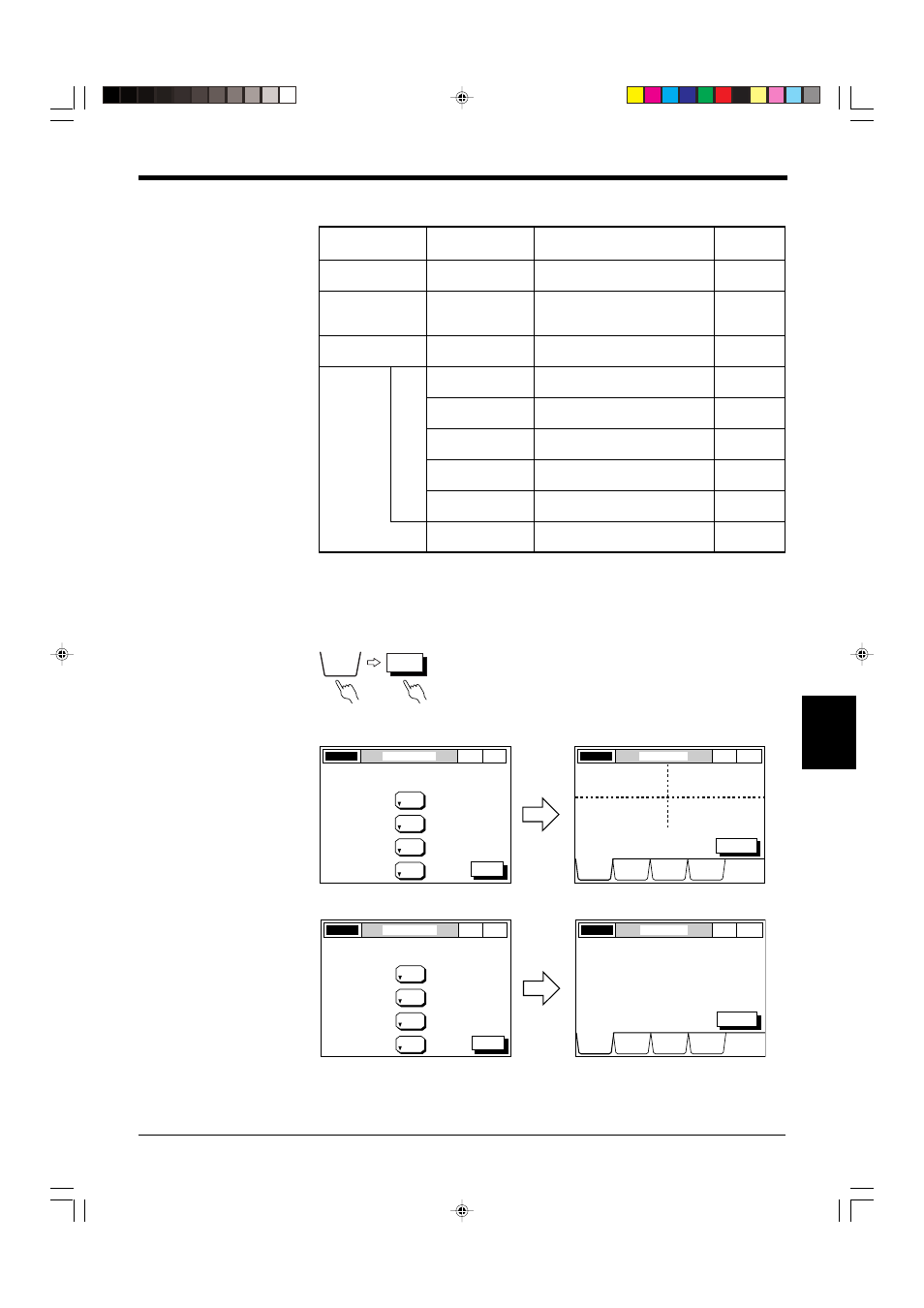

7.4 Setting Functions
Switch Function Description Reference
page
DATA DISPLAY Screen Selection Measurement results are 72, 73
displayed.
LIMIT SETUP Limit Setup Upper and lower limits can be set 75
relative to the reference value for
each output.
PROGRAM Program Measurement conditions can be 76
SELECT Selection stored and retrieved as programs.
OPTIONS No. of Pitches Set the number of pitches 77
according to the target.
Average Measurement results can be 79
averaged.
Digit suppression The number of digits after the 80
decimal point can be set.
M. Mode Three measuring modes are 81-83
provided.
Masking Set the pitch number for the 84
measurement to be canceled.
Mode Change Normal mode or Pitch mode 85
can be selected.
For each scanning head
1 1 1 1 1 Screen Selection Function
Using the screen selection function, set the measured value display screen (OUT1
to OUT4).
[Example 1: Four measurement results are displayed.]
[Example 2: One measurement result is displayed.]
DISPLAY
DATA
SCREEN
LASER ON DISPLAY SETUP P. 1
ON HEAD1
ON HEAD2
ON HEAD3
ON HEAD4 ESC
Set Output to display data.
LASER ON DISPLAY DATA PITCH PITCH P. 1
HEAD1
OK
Max
Min
0.5010
0.4990
HEAD2
OK
Max
Min
0.6010
0.5990
HEAD3
OK
Max
Min
0.7020
0.6980
HEAD4
OK
Max
Min
0.8020
0.7980
SCREEN
DISPLAY
DATA
LIMIT
SETUP PROGRAM OPTIONS
LASER ON DISPLAY SETUP P. 1
ON HEAD1
OFF HEAD2
OFF HEAD3
OFF HEAD4 ESC
Set Output to display data.
LASER ON DISPLAY DATA PITCH PITCH P. 1
HEAD1 OK
Max 0.5010
Min 0.4990
SCREEN
DISPLAY
DATA
LIMIT
SET UP
PROGRAM OPTIONS
