Chapter 8 RS-232C I/O
95
8

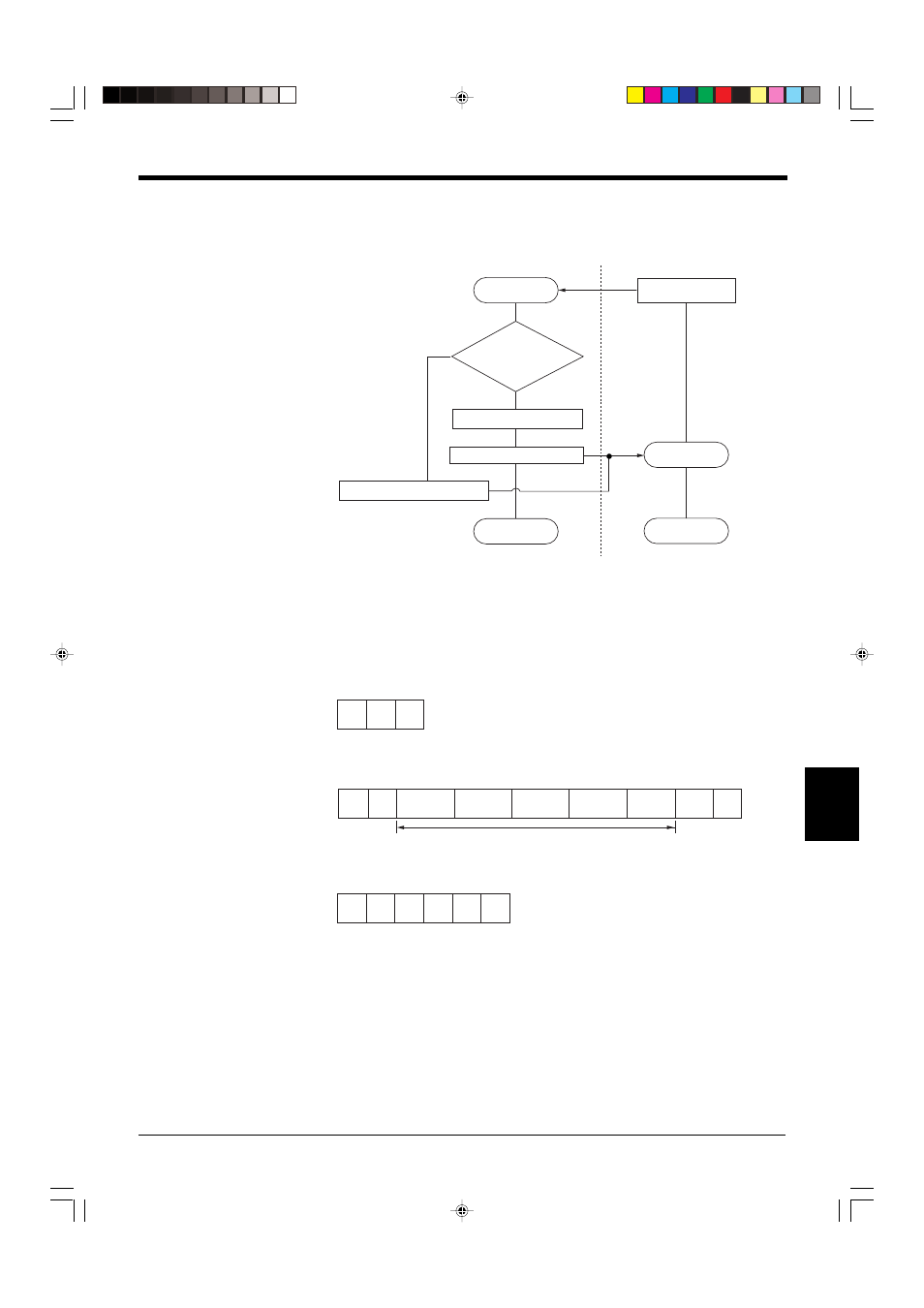

■ Operating Procedure
Example: Change the program number.
Reading Preset Data (Batch)
This function is used to store the LS-5000 series’ settings. (The preset data is sent
as binary code.) Use the "Writing Preset Data (Batch)" command ([S][W][CR])
when reloading the settings on the LS-5000 series .
• Received command
• Transmitted data
LS-5000 series
Measurement
is stopped
Measurement
is stopped
Sends back [E][R][R][O][R][CR]
Sends back [P][A][S][S][CR]
Personal computer
Sends [P] [0] [1] [CR]
Waiting to
receive data
End
Checks
if the program number
is between 1 and 16
Program No. 1 is selected
NO
YES
S R C R
S R No. of data Data 1 Data 2 Data n
53H 52H 01H CCH
* No. of data: 460 (bytes)
Check-
sum
C R
Checksum range
• • • • •
E R R O R C R
