Chapter 6 Normal Mode
55
6
B B B B B Offset Function
The desired value can be added to or subtracted from the displayed value.

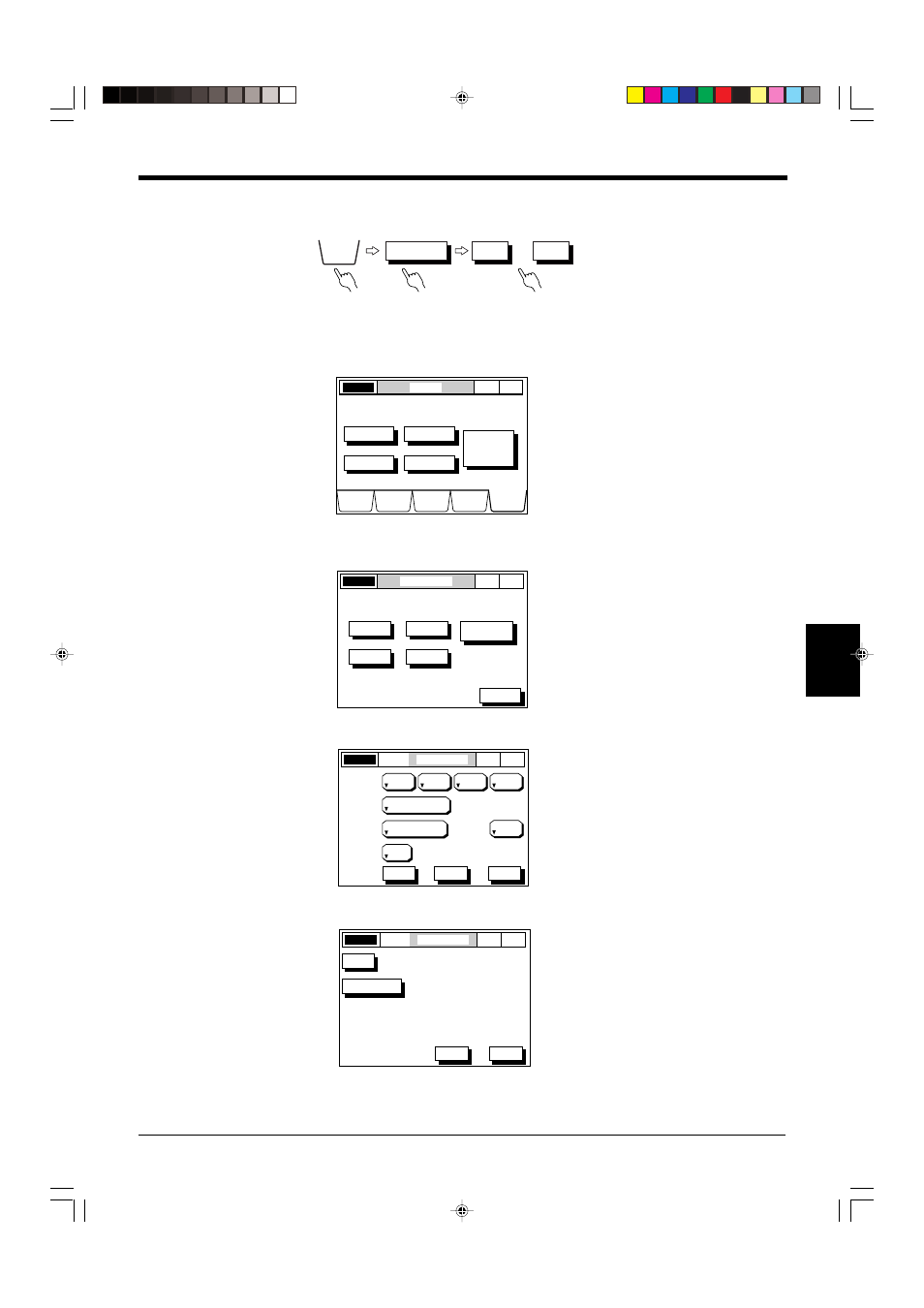

■ Setting Procedure
1. Select the OPTIONS screen. Press the [OPTIONS] button.
2. Select the OUTPUT MODE screen. Press the [OUTPUT] button.
3. Press the button corresponding to the output number for which the offset
function is to be set.
4. Press the [NEXT] button.
5. Set the offset function. Press the [OFFSET] button.
OPTIONS OUTPUT OUT1 • • • OUT4
LASER ON OPTIONS NOR
MAL P. 1
DISPLAY
DATA
LIMIT
SETUP PROGRAM CALIB OPTIONS
AREA
OUTPUT
INSPECT
UTILITY
Select Option to setup.
MODE
CHANGE
Normal
-> Pitch
LASER ON OUTPUT MODE NOR
MAL
P. 1
OUT1
OUT2
OUT3 I/O SLOT
SETUP
OUT4
ESC
Select Output to set.
OUTPUT MODE OUT1 LASER ON P. 1
+A1 OFF OFF OFF
AREA1 AREA2 AREA3 AREA4
100
AVERAGE
CAL-
CULATE
1 (0.833ms)
MEASUR-
ING MODE
SELF-TIMING
INTERVAL (ms)
NORMAL
DIGIT
SUPPRESS
NONE
ESC HELP NEXT
NOR
MAL
OUTPUT MODE OUT1 LASER ON P. 1 NOR
MAL
OFFSET
+10 V=
-10 V=
40.0000
0.0000
0.0000
ANALOG OUT
ESC PREV
