Chapter 6 Normal Mode

44

6

9

9

9

9

9 Average

The number of averaging measurements can be set based on the application as
follows.

Increase the number of averaging measurements:
To average fluctuations in measured values to obtain stable data

Reduce the number of averaging measurements:
To increase high speed differentiation speed

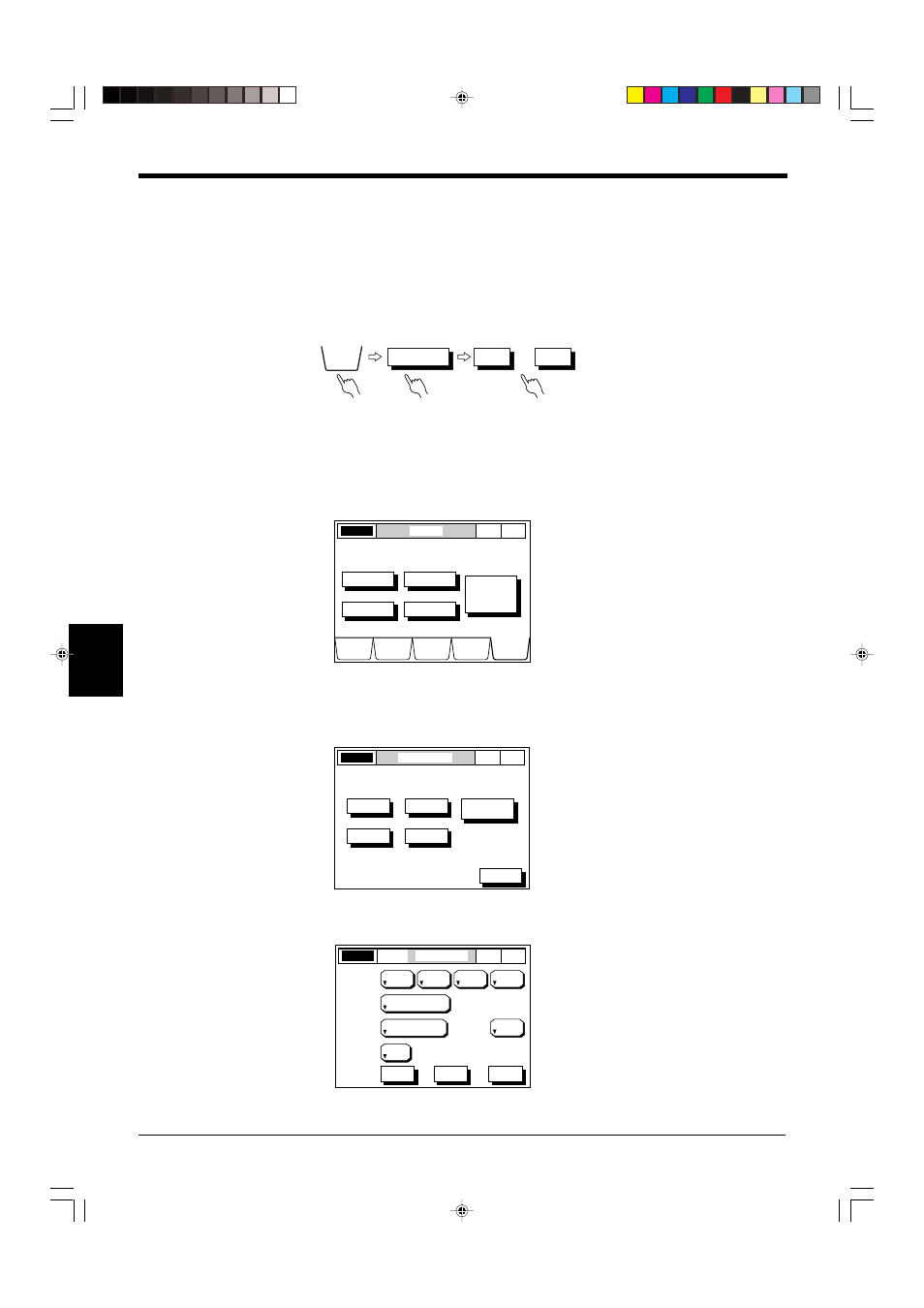

Setting Procedure
1. Select the OPTIONS screen.

Press the [OPTIONS] button.

2. Select the OUTPUT MODE screen.

Press the [OUTPUT] button.

3. Set the number of averaging measurements.

Press the button corresponding to the output number for which the number of
averaging measurements is to be set.

Press the [AVERAGE] button and set a number of averaging measurements.

OPTIONS

OUTPUT

OUT1

• • •

OUT4

LASER ON

OPTIONS

NOR

MAL

P. 1

DISPLAY

DATA

LIMIT

SETUP

PROGRAM

CALIB

OPTIONS

AREA

OUTPUT

INSPECT

UTILITY

Select Option to setup.

MODE

CHANGE

Normal

-> Pitch

LASER ON

OUTPUT MODE

NOR

MAL

P. 1

OUT1

OUT2

OUT3

I/O SLOT

SETUP

OUT4

ESC

Select Output to set.

OUTPUT MODE

OUT1

LASER ON

P. 1

+A1

OFF

OFF

OFF

AREA1

AREA2

AREA3

AREA4

100

AVERAGE

CAL-
CULATE

1 (0.833ms)

MEASUR-
ING MODE

SELF-TIMING
INTERVAL (ms)

NORMAL

DIGIT
SUPPRESS

NONE

ESC

HELP

NEXT

NOR

MAL
