Chapter 7 Pitch Mode
80
7

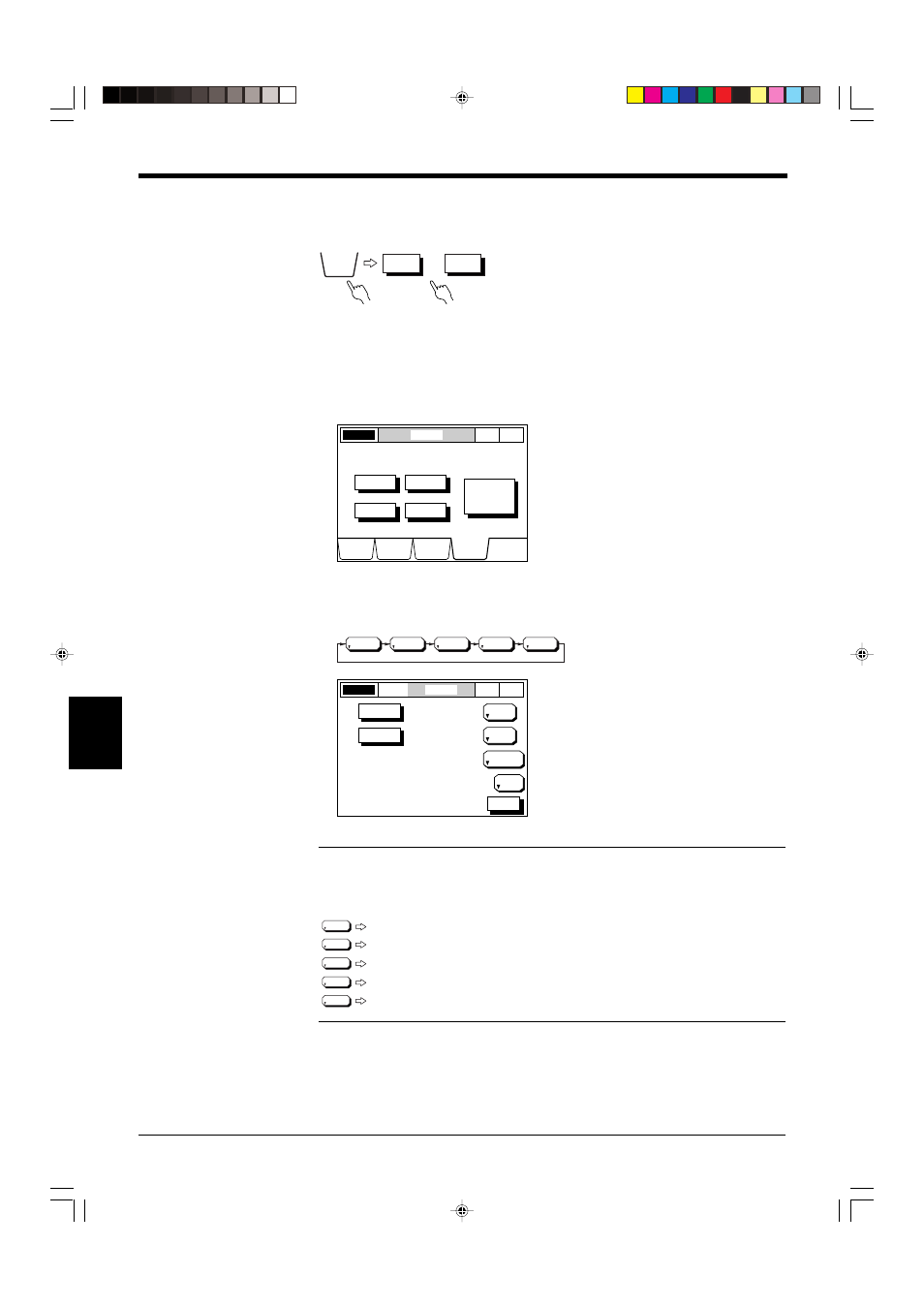

6 6 6 6 6 Digit Suppression Function
The number of digits after the decimal point can be suppressed as desired.
■ Setting Procedure
1. Select the OPTIONS screen.
Press the [OPTIONS] button.
2. Set the number of digits.
Press the button corresponding to the scanning heads for which the number of
digits is to be set.
Press this button to select the number of digits.
Every time you press this button, the display changes in the following order.
Note: The relationship between each switch setting and the displayed digits is as
follows:
Example
(Displays 5 digits after the decimal point: 10.00000 mm/1.000000 inch)
(Displays 4 digits after the decimal point: 10.0000 mm/1.00000 inch)
(Displays 3 digits after the decimal point: 10.000 mm/1.0000 inch)
(Displays 2 digits after the decimal point: 10.00 mm/1.000 inch)
(Displays 1 digit after the decimal point: 10.0 mm/1.00 inch)
LASER ON OPTIONS P. 1 PITCH
DISPLAY
DATA
LIMIT
SETUP PROGRAM OPTIONS
HEAD1
HEAD2
HEAD3
HEAD4
MODE
CHANGE
Pitch
-> Normal
NONE 1 2 3 4
OPTIONS HEAD1 LASER ON P. 1 PITCH
MASK1:
PITCH No.
NO. OF
PITCHES
MASKING
10
0
MASK2:
PITCH No.
0
MASK3:
PITCH No.
0
AVERAGE 8
DIGIT
SUPPRESS
NONE
MEASUR-
ING MODE NORMAL
SELF-TIMING
INTERVAL (ms)
100
ESC
HEAD1 • • • HEAD4 OPTIONS
NONE
1
2
3
4
